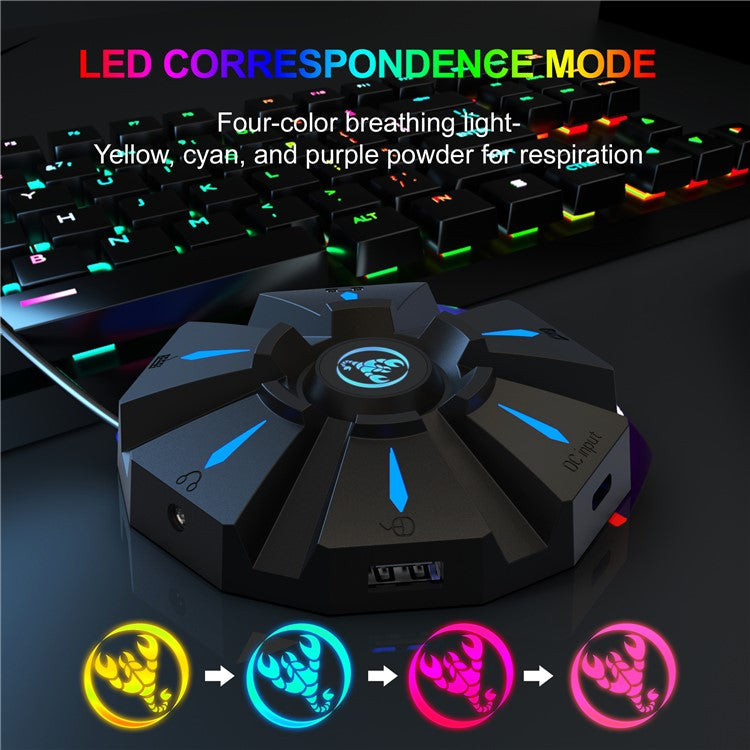

• LED correspondence mode: Four color breathing light-yellow, cyan, purple, pink for respiration

• Support mouse sensitivity selection

• Support custom buttons

• Plug and play, no need to drive

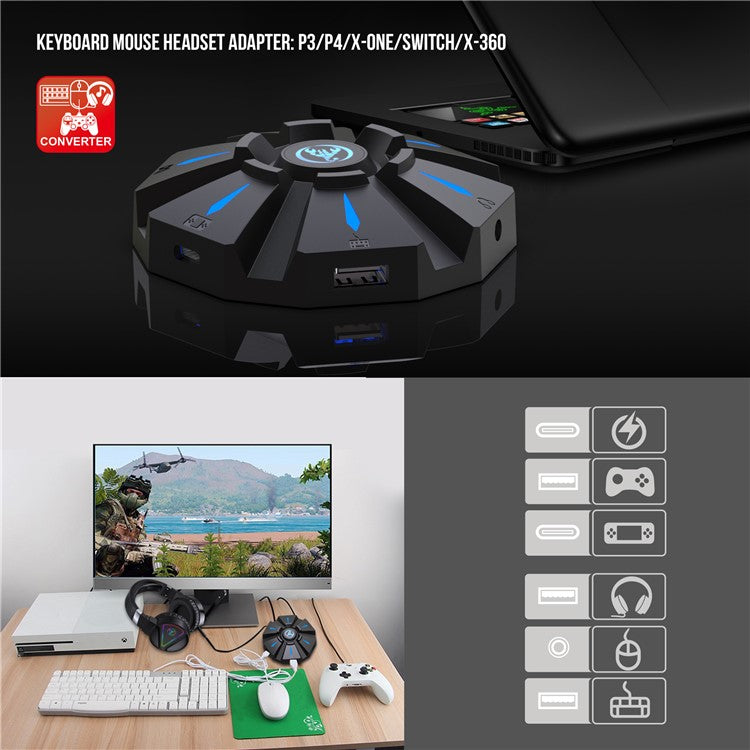

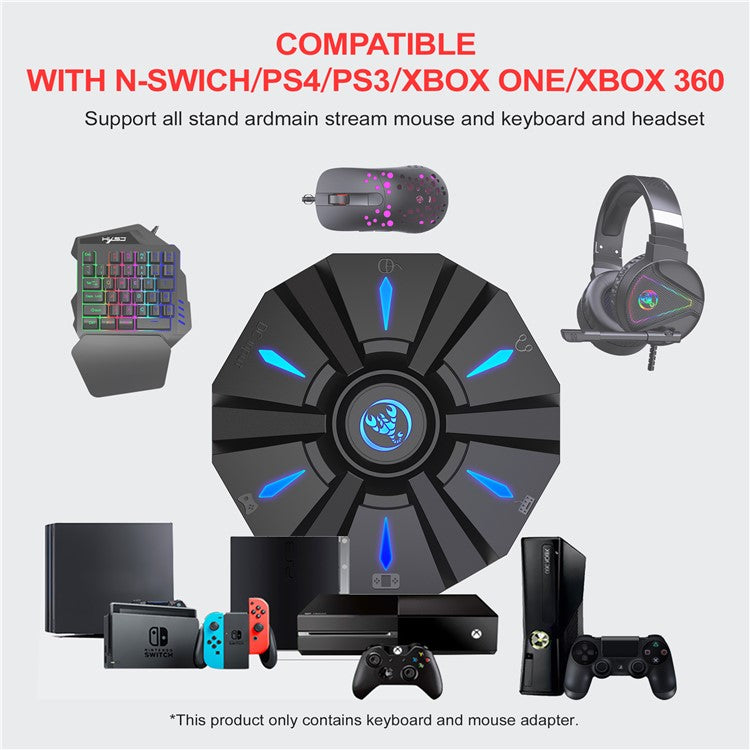

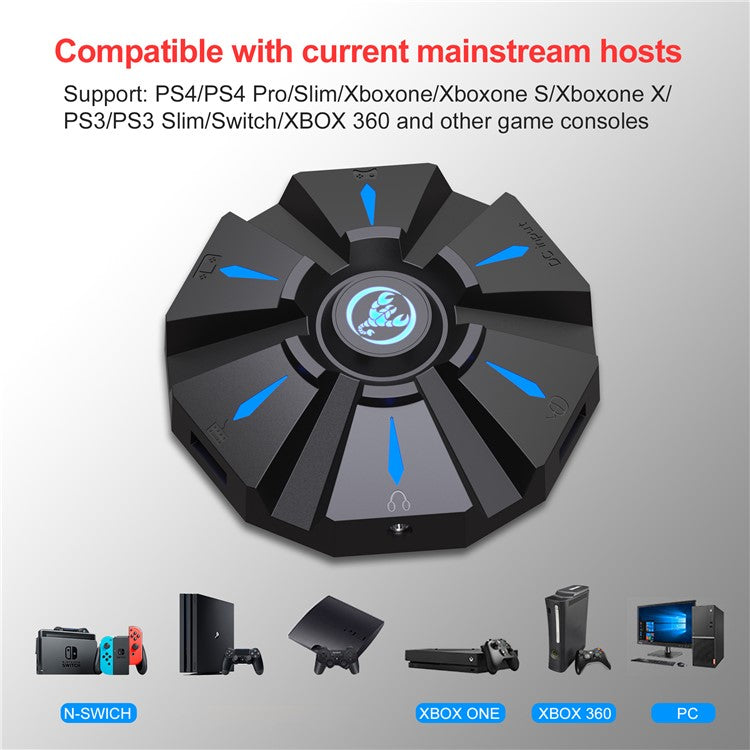

• Compatible with current mainstream hosts, such as for S4, for Xbox One, for PS3, for Xbox 360, for N-Switch

Specification:

• Brand/Model: HXSJ/P9

• Material: ABS

• Product interface: Type-C

• Rated voltage / current: DC 5V / 100mA

• Product weight: 83g

• Product size: 8.7*8.7*2.4cm

• Suitable game consoles: for PS4, for Xbox One, for PS3, for Xbox 360, for N-Switch

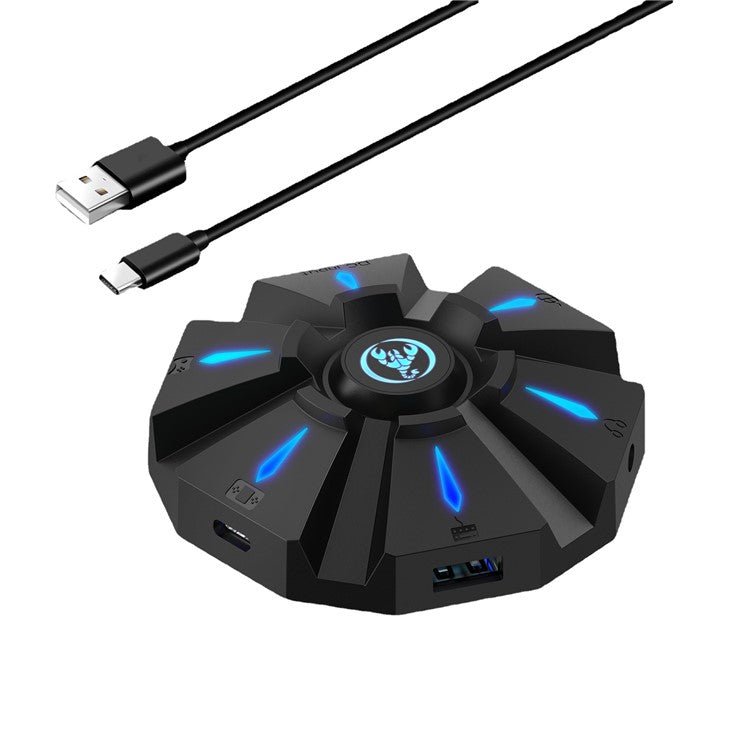

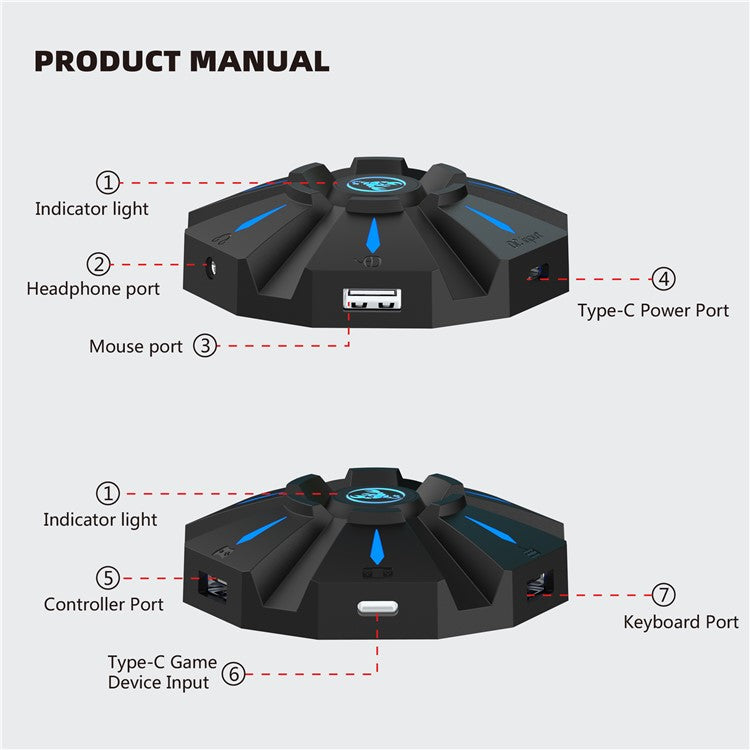

Product Connection:

• Start the console and connect the adapter via USB TYPE-C data cable ( USB port plug to the console, TYPE-C port plug to the converter) then LED white light

• Plug the original wired controller to guide the yellow LED light

• Insert the keyboard then LED red light; insert the mouse then LED green light

• After all connected, the LED will breathe in circulation from yellow, cyan, purple and pink

Set Keyboard and Mouse Functions:

• Press the keyboard ESC + SPACE (space bar) at the same time to enter the function mode of setting the keyboard and mouse buttons (LED blue light)

• Press and hold the function button you want to set on the original controller, then press the button on the keyboard or mouse you want to set, and release the button on the original controller and the button on the keyboard or mouse

• After the setting is completed, press ESC + SPACE on the keyboard to save the current setting and exit the setting mode

• For example: press ESC + SPACE (space bar) to enter the setting mode, press and hold the original SWITCH controller A key, and then press the keyboard F key to release the original SWITCH controller A key. The function of the controller A key

Note On Keyboard And Mouse Setting Functions:

• During the setting process, if you do not hold down the original controller function key or joystick to the end, the original set function of the keyboard or mouse will be cleared

• When setting the functions of the original joystick left and right to the keyboard, the direction of the joystick must be pushed to the end, and only the four directions of the joystick up, down, left, and right can be set

• For the setting of the mouse, when the original joystick direction must be pushed to the end, the mouse slides in the corresponding direction, and the mouse only supports the corresponding function of the left and right joystick directions

• Original controller cross key supports 8 directions setting

Mouse Speed Adjustment:

• The product supports mouse movement speed adjustment, the default is the third gear

• Shaft speed adjustment: ESC + CAPSLOCK+A/ S/ D/ F / G

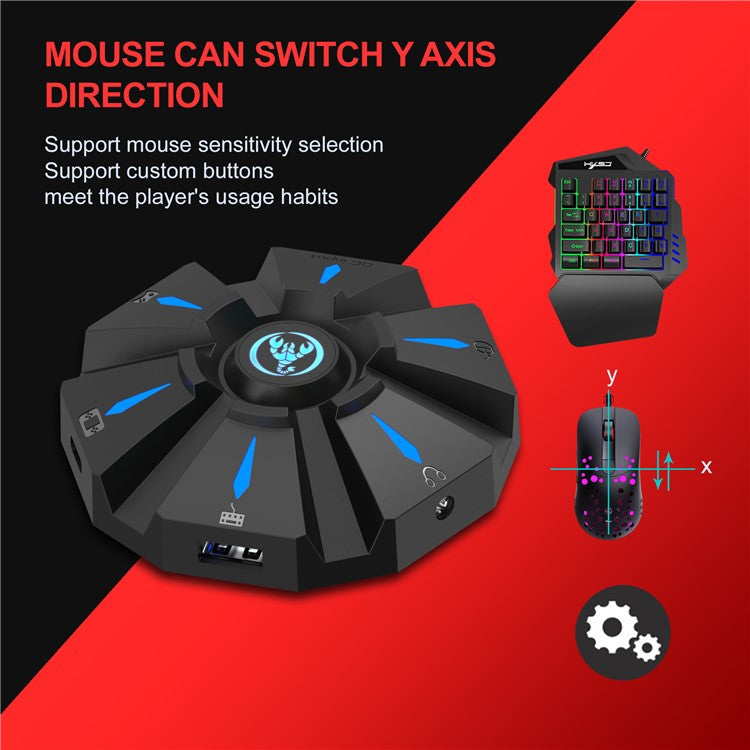

Mouse Y Axis Direction Switch:

• The control of the Y axis of some games is opposite to the set value. The game operator can adjust the Y axis direction of the mouse according to your needs by pressing ESC + R

Function Switching Instructions:

• Enter setting mode: ESC + SPACE

• Default page 1: SC+ CTRL + Q

• Exit setting mode: ESC + SPACE

• Mouse speed switch: ESC + CAPSLOCK+A/ S/D/ F / G

• Y axis plus reverse: ESC + R

• Page area selection: ESC+ TAB+Q /W/ E/ R/ T

• Key value restore default: SC + CTRL + ALT (long press for 3 seconds) Upgrade Instructions: (you cannot upgrade at will without the correct upgrade program)

• On for Windows computer, open the upgrade software. When the converter does not enter the upgrade mode, "Update rm ware" is light gray

• Connect the converter to the computer through the USB data cable. At this time, the converter's white LED is on, plug in the keyboard and the red LED is on. Press the keyboard SC+ CTRL + ALT + SPACE and hold it for 3s. At this time, the ''Update rm ware'' is black, click the button ''Update rm ware'' to update the converter rm ware

• The OK window pops up and displays "Update Success", indicating that the upgrade is complete. Then Click OK

Setting Instruction:

• The conversion box is connected to the console and not connected to the external devices, and is displayed as a white light

• Insert the original controller to guide and display the yellow light, insert the RST device to light red, then insert another device to turn on the green light, successfully turn yellow, and then the color of the breathing light will turn yellow, green, purple and pink (circulation). Each color breathes 4 times to change one color. Press the set key function to light up blue

Note:

To ensure the normal use of different consoles by keyboard and mouse, you must use the original controller (supporting wired functions) corresponding to each platform to guide

The keyboard and mouse interface cannot be connected to the controller

Supports 95% of keyboards and mice on the market. If you encounter incompatibilities, please provide the actual product to customer service for up grade
