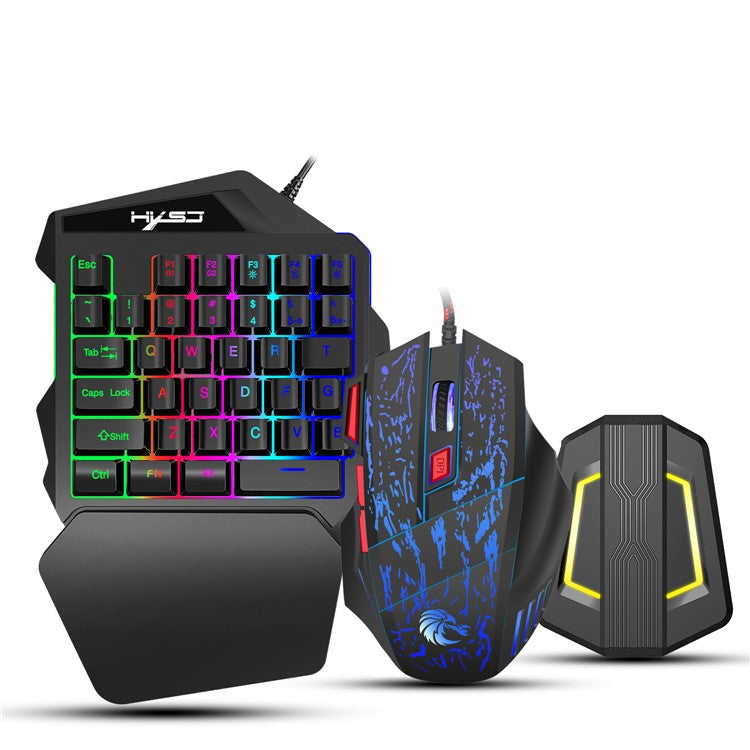

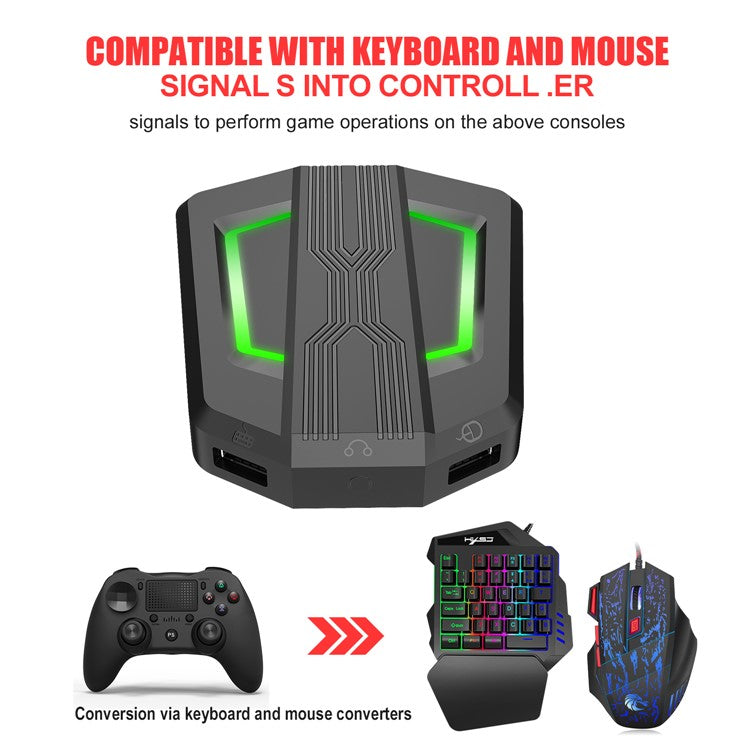

P6 Keyboard Mouse Converter:

• Compatible with PS4/PS3/Xbox One/Xbox 360/N-Switch platforms host

• Play quicker and precise with mouse and keyboard than handles

• No power on/off button, plug & play thanks to the easy installation

• Supports keyboard and mouse functions setting, mouse speed adjustment, and mouse Y-axis direction switch

• Four-color LED breathing light indicates the connection status and increases the game atmosphere

V100 Gaming Keyboard:

• Mini portable, 35 keys, mini design provides a super easy single hand operate experience

• Fit for you hands and wrist, simplify the complex operation procedure

• Light mode: RGB marquee effect, up to 6 lighting pattern designs?The light can be turned off

H300 7-Color Lightning Game Mouse:

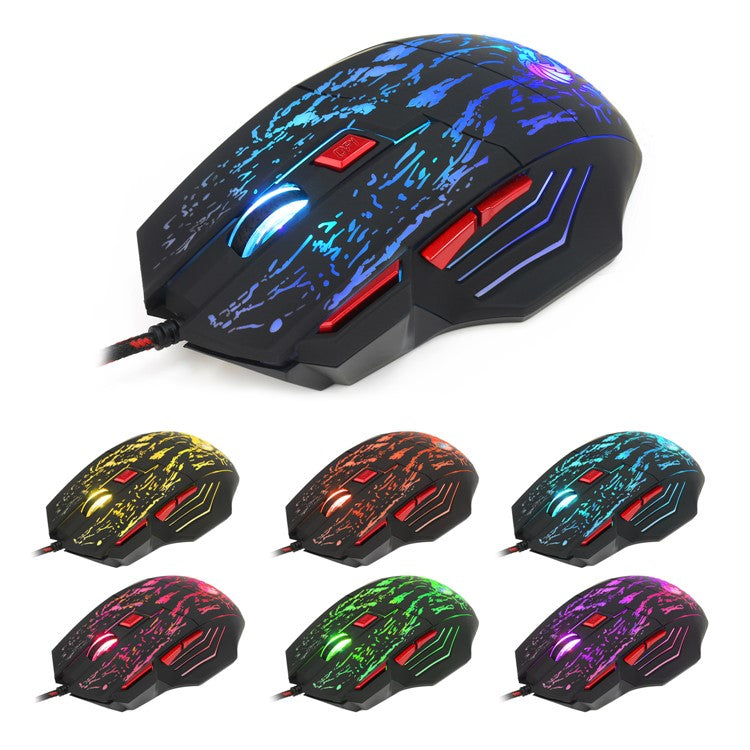

• Breathing light of 7 colors brings user cool game playing experience

• 7 buttons for more convenient operations, fire key for triple attack

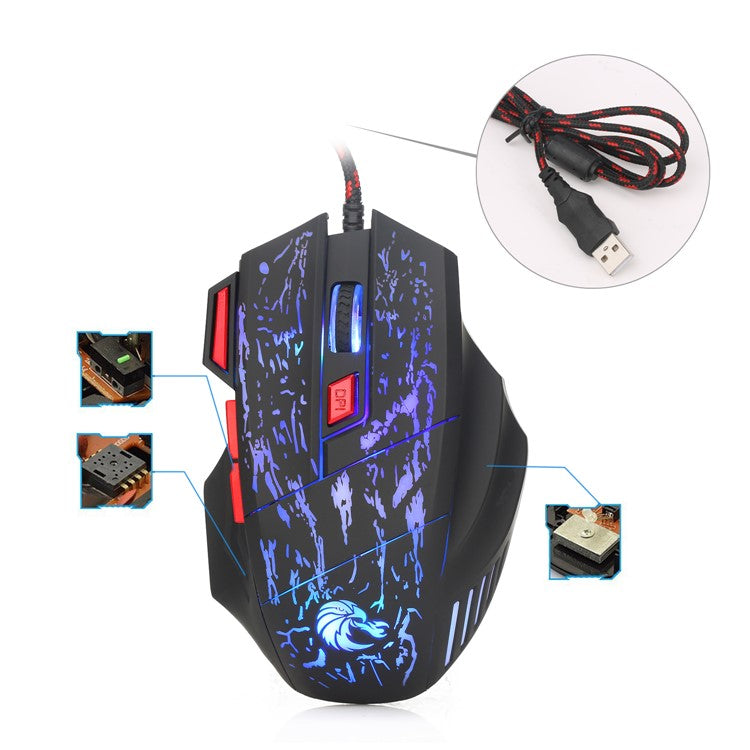

• Woven nylon line of dual colors with anti static electromagnetic ring, durable and anti-interference

• 5 adjustable DPI for choices, more freely control

• Ergonomic surface, comfortable hand feeling, reduces fatigue

• USB interface, plug and play

Specification:

Name: Keyboard mouse converter:

• Model: P6

• Material: ABS

• Product interface: Type-C charging interface

• Rated voltage / current: DC 5V / 100mA

• Net weight: 100g

• Size: 11.4x2x9.4cm

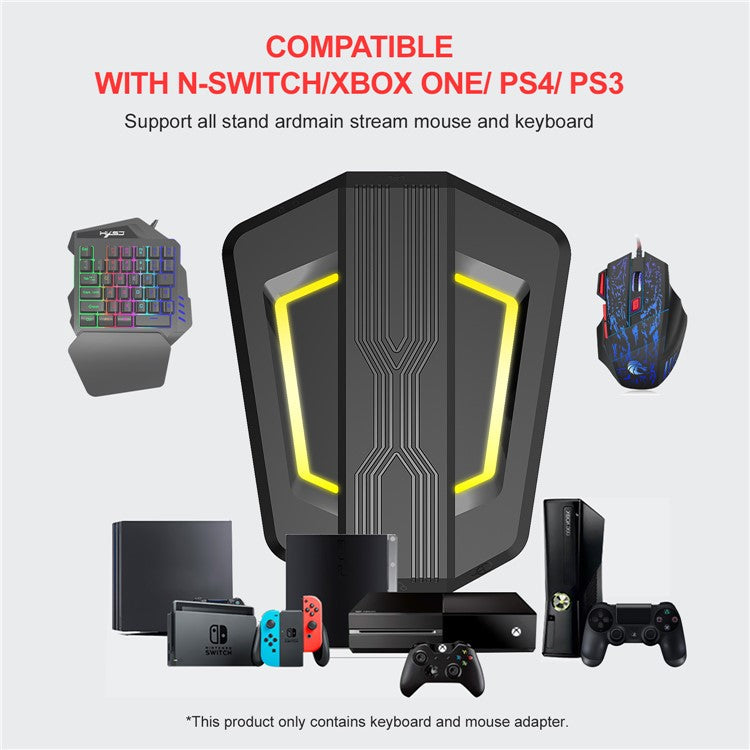

• Suitable game consoles: PS4, Xbox One, PS3, Xbox 360, N-Switch

Name: One-handed gaming keyboard:

• Product model: V100

• Product interface: USB 2.0

• Press the number of  keys: 35 keys

• Key life: 20 million times

• Product line length: 1.6m

• Flash ROM: 32 bytes

• EEPROM: Built-in 2K bytes

• Operating voltage : VDD = 3.3V - 5.5V

• Working current: 100mA

• Ambient temperature: - 40°C to + 85°C

• Programming temperature: 0°C to + 85°C

• Product net weight: 350g

• Product size: 26 x 18 x 4cm

Name: H300 game mouse:

• Key quantity: 7

• Resolution: 800DPI, 1600DPI, 2400DPI, 3200 (adjustable)

• Key life: 10 million

• Voltage rating / electric current: DC 5V / 100mA

• USB version: 2.0

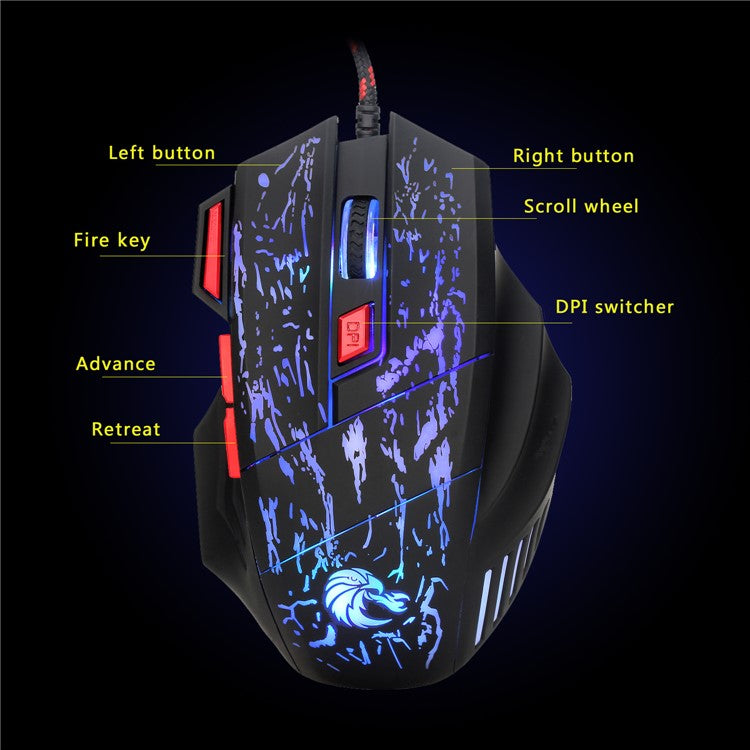

• Buttons:Left, Right, Scroll Wheel, DPI, Fire Key, Advance, Retreat

• Light effect: colorful

• Compatible: For Windows 7 / 8 / 10/2000 / XP / Vista, for Mac OS or latest.

• Color: Black+Red

• Material: ABS

• Cable length: 140cm

• Item size: 13.0 x 8.5 x 4.0cm (L x W x H)

• Item weight: 139.0g

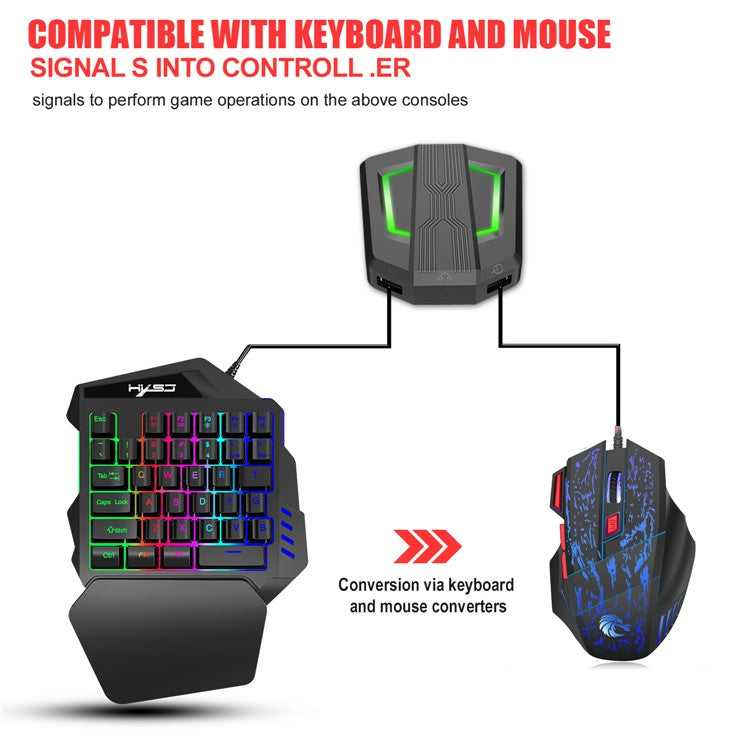

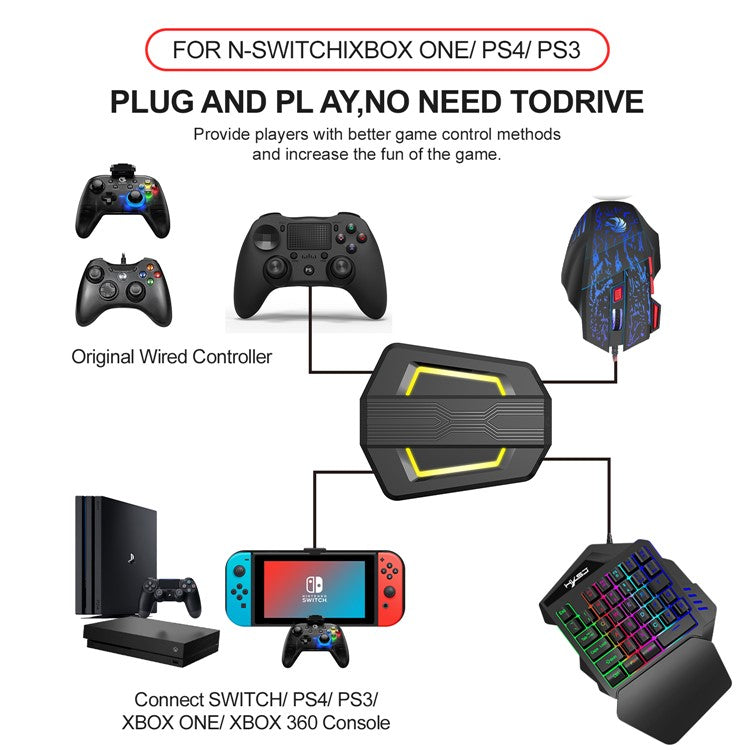

How to Connect:

• 1) Start the console and connect the adapter via a USB - Type-C data cable (USB port plug to the console, Type-C port plug to the converter) then LED white light.

• 2) Plug the original wired controller to guide the yellow LED light. Insert the keyboard then LED red light; insert the mouse then LED green light. After all connected, the LED will breathe in circulation from yellow, cyan, purple and pink.

Precautions for Using Various Game Consoles:

1. N-SWITCH Keyboard and Mouse Connection Diagram:

• NOTES:

• ?When using this product, the SWITCH console can use normally without connect the original controller. Only when the keys need to be modi ed, then it will need an original controller to guide. (The controller should be turned O before using this product.)

• ?An external device needs to be connected to a power source if the current is greater than 650mA.

2. PS4 Keyboard And Mouse Connection Diagram:

• NOTES:

• ?When using this product on PS4 console, please note that the original controller need turn 0.After plug the cable to connect the mouse and keyboard converter, the orange light on the controller is on then you need to press the PS button to connect and guide successfully. (Don't disconnect the controller while using the mouse and keyboard converter, otherwise it cannot be used.)

• ?An external device needs to be connected to a power source if the current is greater than 650mA.

3. PS3 Keyboard And Mouse Connection Diagram:

• NOTES:

• ?When using this product on PS3 console, please note that the original controller need turn 0.After plug the cable to connect the mouse and keyboard converter, the controller indicator ashes 1-4 then you need to press the PS button to connect and guide successfully.(Don't disconnect the controller while using the mouse and keyboard converter, otherwise it cannot be used.)

• ?An external device needs to be connected to a power source if the current is greater than 650mA.

4. Xbox One Keyboard And Mouse Connection Diagram:

• NOTES:

• ?When using this keyboard and mouse convterter on XBOX ONE console, PLEASE DO NOT disconnect the controller. Otherwise it can't be used. (The controller should be turnedo before using this product.)

• ?An external device needs to be connected to a power source if the current is greater than 650mA.

5. Xbox 360 Keyboard And Mouse Connection Diagram:

• NOTES:

• ?When using this keyboard and mouse convterter on XBOX 360 console, PLEASE DO NOT disconnect the controller. Otherwise it can't be used. (The controller should be turnedo before using this product.)

• ?An external device needs to be connected to a power source if the current is greater than 650mA.

6. Set Keyboard And Mouse Functions:

• 1) Press the keyboard ESC + SPACE (space bar) at the same time to enter the function mode of setting the keyboard and mouse buttons (LED blue light)

• 2) Press and hold the function button you want to set on the original controller, then press the button on the keyboard or mouse you want to set, and release the button on the original controller and the button on the keyboard or mouse.

• 3) After the setting is completed, press ESC + SPACE on the keyboard to save the current setting and exit the setting mode.

• 4) For example: press ESC + SPACE (space bar) to enter the setting mode,press and hold the original SWITCH controller A key, and then press the keyboard F key to release the original SWITCH controller A key. The function of the controller A key.

7. Note On Keyboard And Mouse Setting Functions:

• 1) During the setting process, if you do not hold down the original controller function key or joystick to the end, the original set function of the keyboard or mouse will be cleared

• 2) When setting the functions of the original joystick left and right to the keyboard, the direction of the joystick must be pushed to the end, and only the four directions of the joystick up, down,

• 3) left, and right can be set.

• 4) For the setting of the mouse, when the original joystick direction must be pushed to the end, the mouse slides in the corresponding direction, and the mouse only supports the corresponding function of the left and right joystick directions.

• 5) Original controller cross key supports 8 directions setting

8. Mouse Speed Adjustment:

• 1) The product supports mouse movement speed adjustment, the default is the third gear.

• 2) Shaft speed adjustment: ESC + CAPSLOCK +A/ S/D/F / G

• 4. Mouse Y Axis Direction Switch

• The control of the Y axis of some games is opposite to the set value. The game operator can adjust the Y axis direction of the mouse according to his needs by pressing ESC + R.

9. Function Switching Instructions:

• 1) Enter setting mode: ESC + SPACE

• 2) Enter setting mode: ESC + SPACE

• 3) Default page 1: SC+ CTRL + Q

• 4) Exit setting mode: ESC + SPACE

• 5) Mouse speed switch: ESC + CAPSLOCK +A/ S/D/ F /G

• 6) Y axis plus reverse: ESC+ R

• 7) Page area selection: ESC+ TAB+Q /W / E/ R/ T

• 8) Key value restore default: SC + CTRL + ALT (long press for 3 seconds)

10. Upgrade Instructions:

• You cannot upgrade at will without the correct upgrade program.

• 1) On a Windows computer, open the upgrade software. When the

• 2) converter does not enter the upgrade mode, "Update rmware" is light gray.

• 3) Connect the converter to the computer through the USB data cable. At this time, the converter's white LED is on, plug in the keyboard and the red LED is on. Press the keyboard SC+ CTRL + ALT + SPACE and hold it for 3s. At this time, the“Update rmware "Is black, click the button "Update rmware" to update the converter rmware.

• 4) The OK window pops up and displays "Update Success", indicating that the upgrade is complete. Click OK.

11. Setting Instructions:

• 1) The conversion box is connected to the console and not connected to the external devices, and is displayed as a white light.

• 2) Insert the original controller to guide and display the yellow light,insert the rst device to light red, then insert another device to turn on the green light, successfully turn yellow, and then the color of the breathing light will turn yellow, green, purple and pink (circulation).

• 3) Each color breathes 4 times to change one color. Press the set key function to light up blue.
