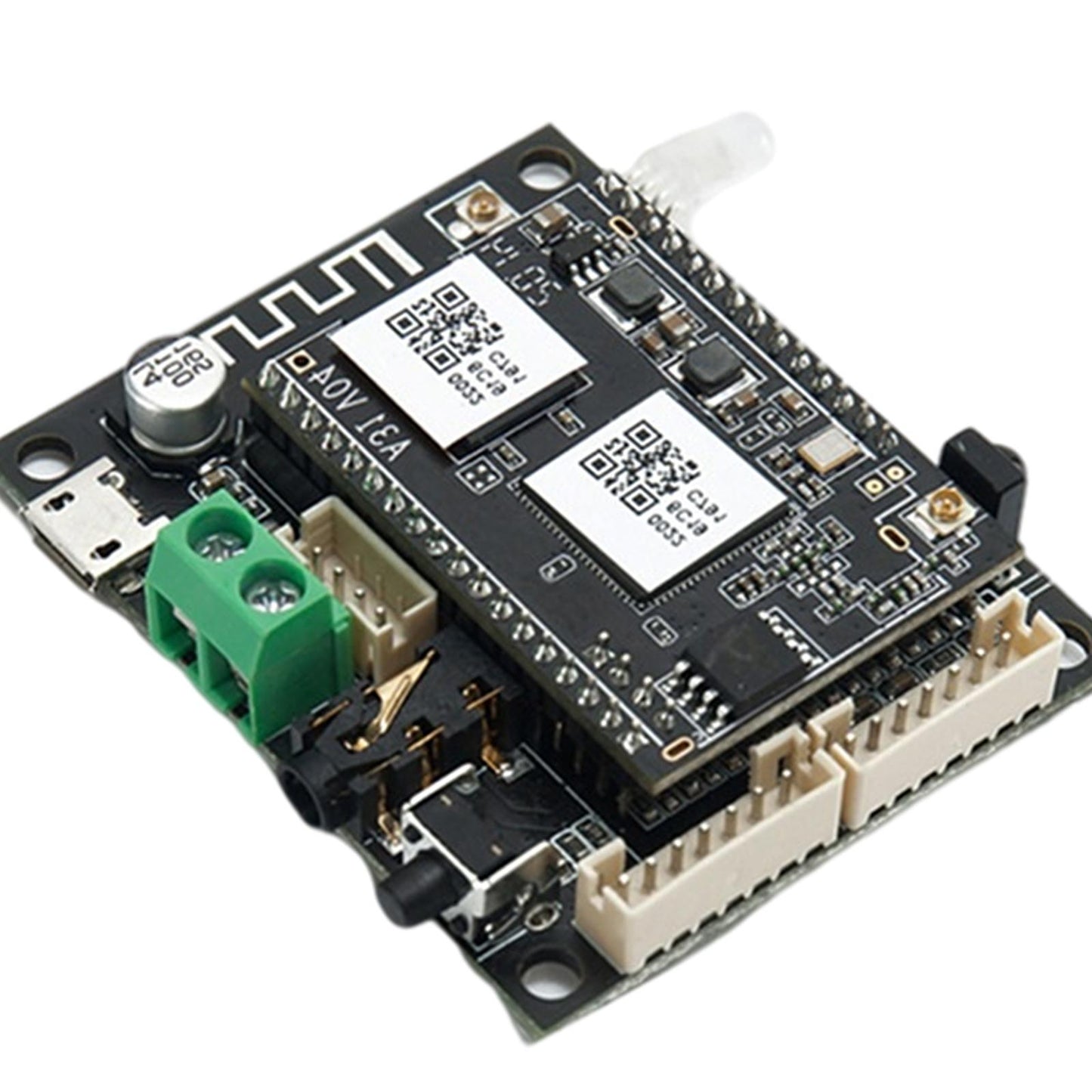

Wireless Up 2 Stream Bluetooth Transceiver Module Bluetooth Module

Description:

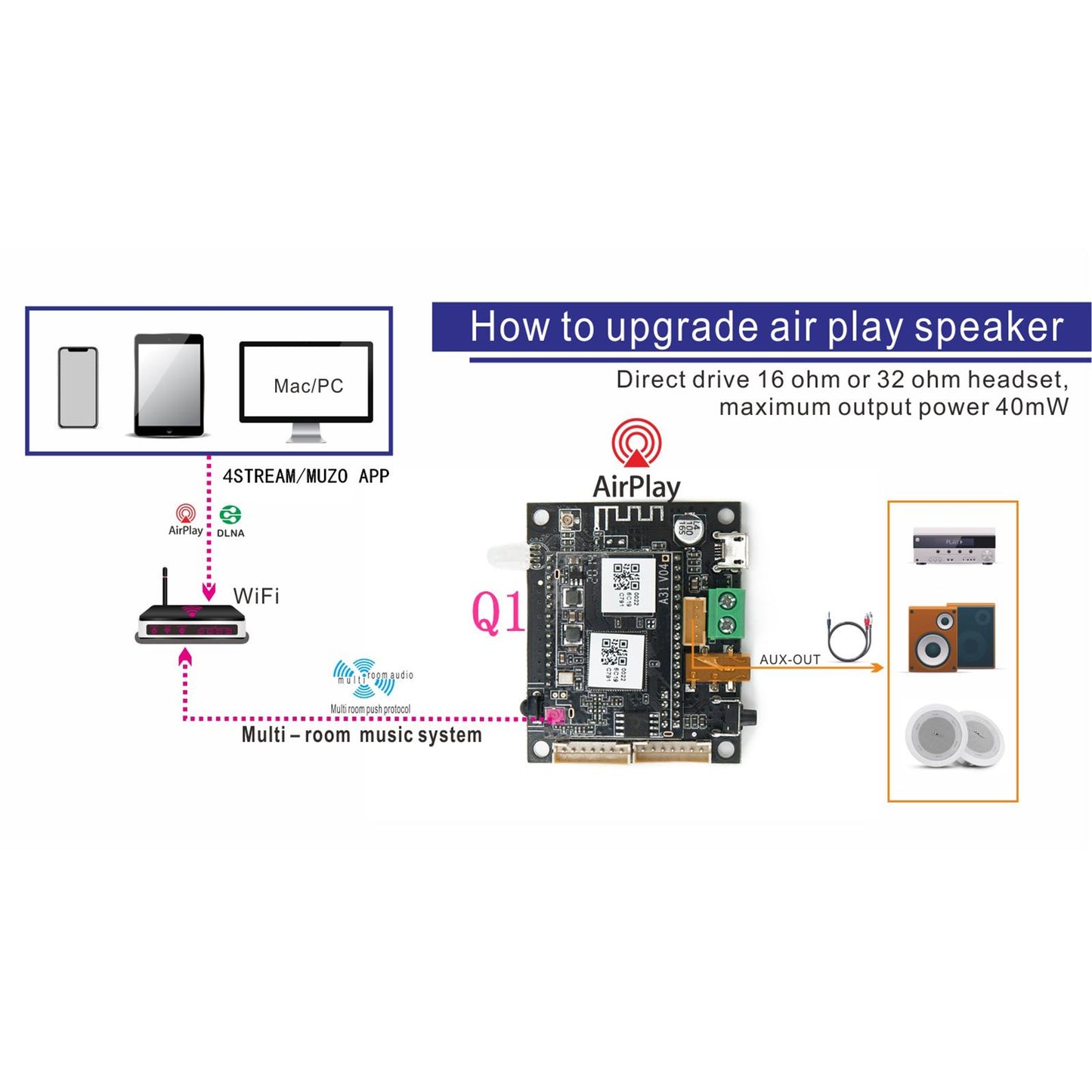

Make your Speaker Wirelessly: With Q1 Audio receiver board Integrated, You can stream your audio
wirelessly to your speakers by WIFI, Bluetooth 5.0, Airplay, DLNA & UPnP.
More Space, More Creativity: The compact design will left you with more space for your wild & creative ideas, so
you can DIY more freely and add features of your choice to make your speaker more powerful.

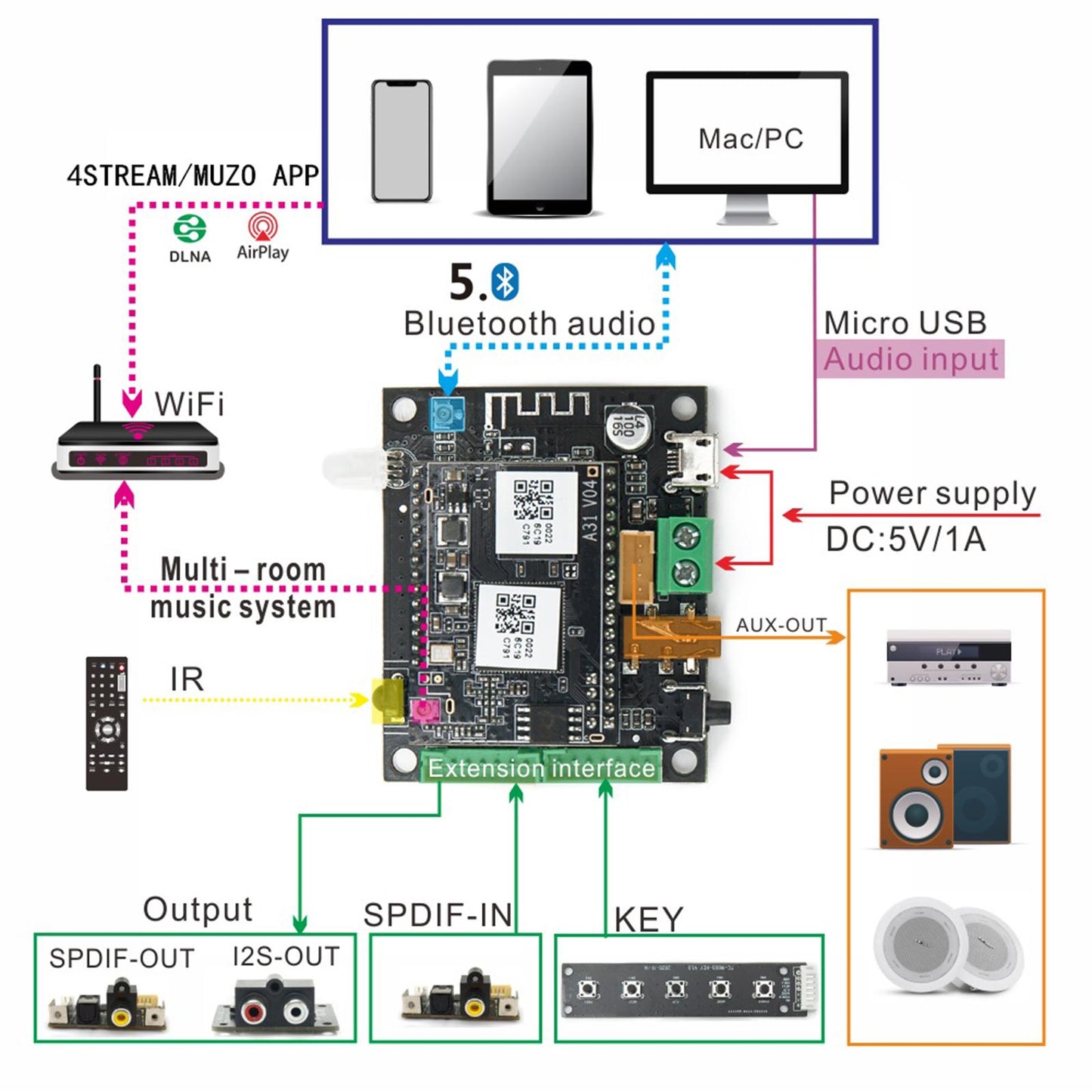

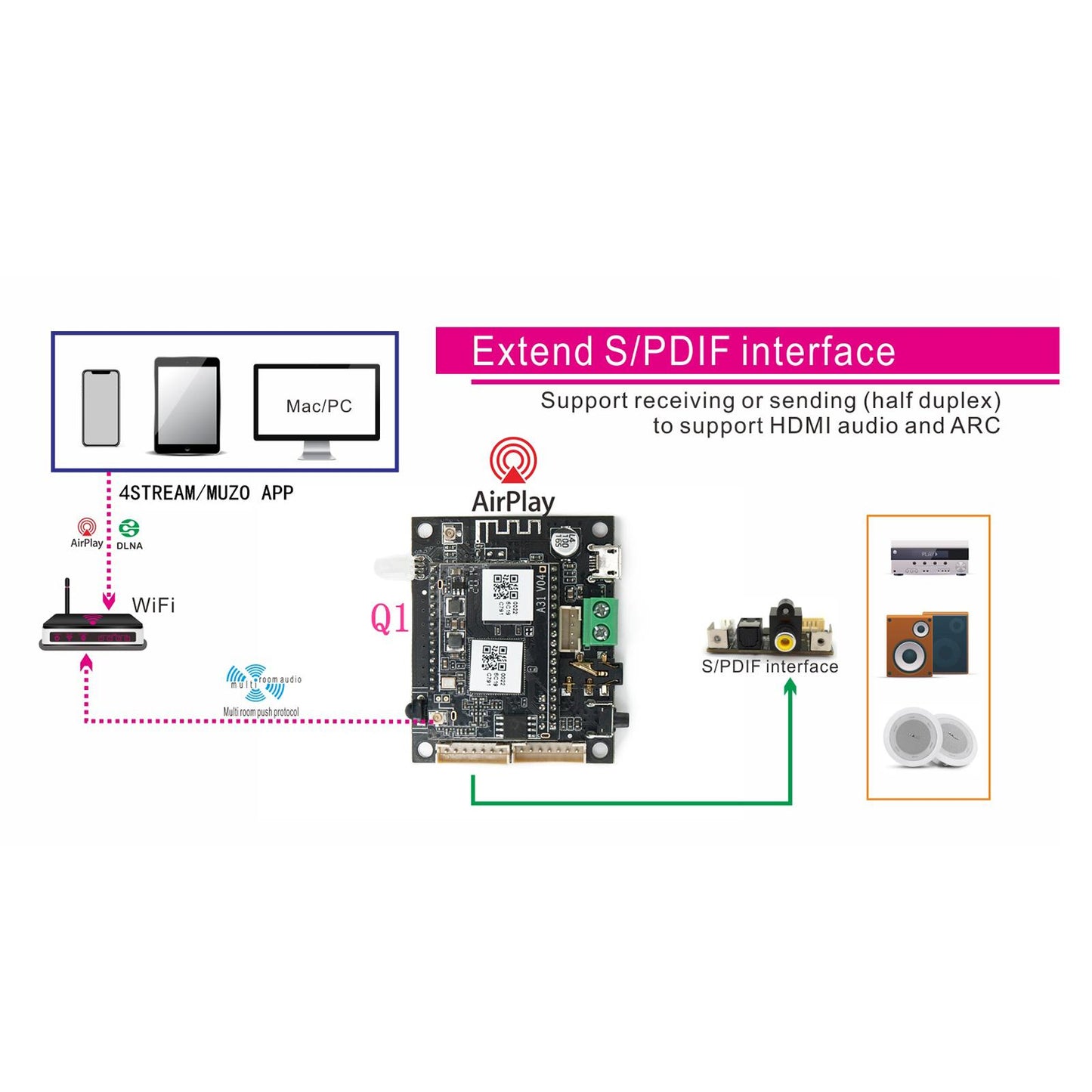

More Advanceable: this product has a huge upgrade from the previous version. Now with Bluetooth 5.0, Pin connector for SPDIF output/OPTICAL output/R/L Audio Output, ADC Key, 2x I/O for external control, such as volume knobs. It also can work as a USB DAC, so you can connect it to a PC and stream PC audio digitally.
DIY Rookie Friendly: If you are a DIY rookie and don’t understand complicated ports. Don’t worry, the ports we use are common ports and simply to understand. Our App is user friendly as well. By the way you can also use our remote control, which is convenient option for you too.
Perfect gift to your family: DIY a unique speaker for your family is very meaningful. Enjoying the music together and makes the family relationship more closely.

Specification:

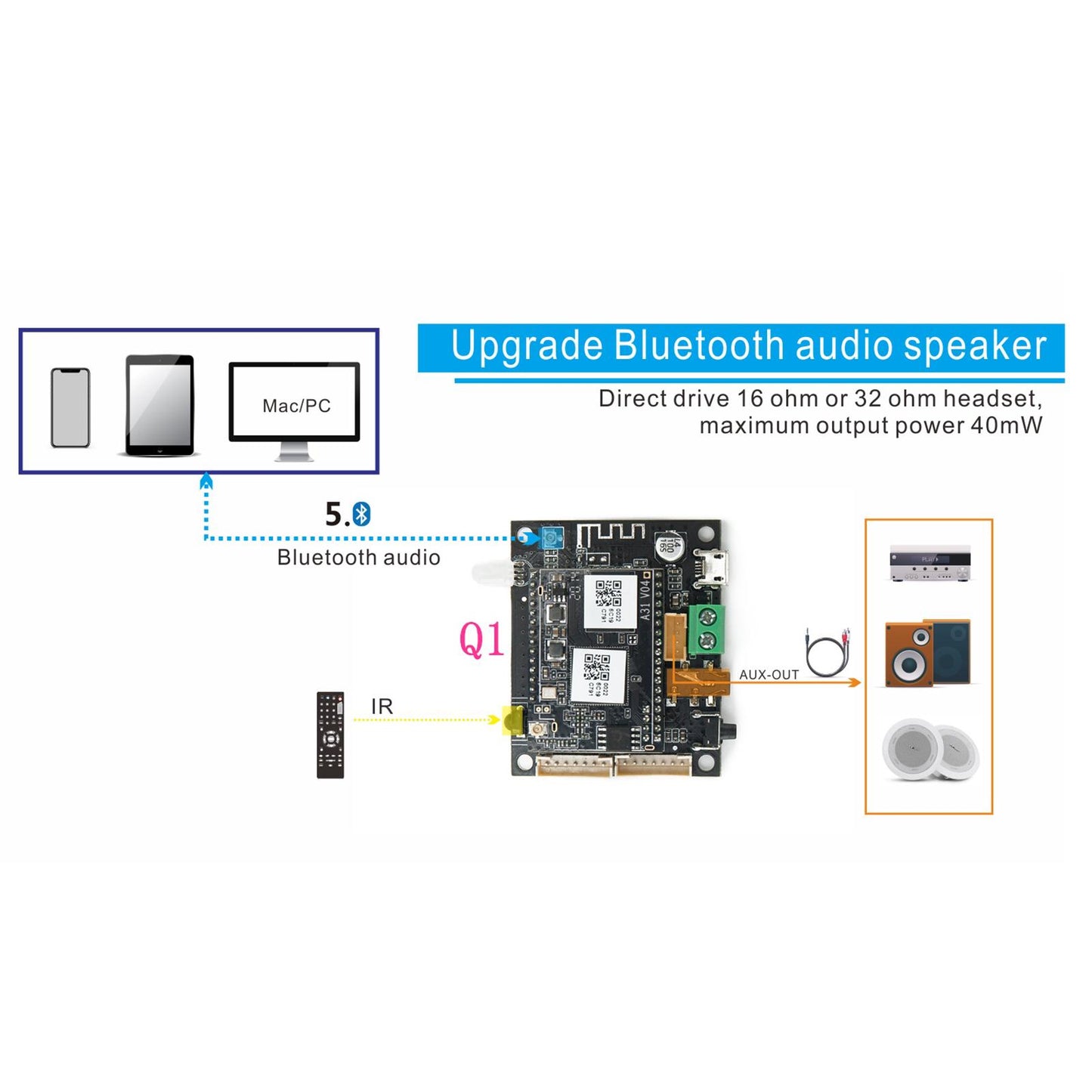

Bluetooth V5.0 SBC/AAC
Power Input: 5V-1A / 2pin Connector 5V-1A Micro USB input
Audio output: Analog 3.5mm/4 pin connector

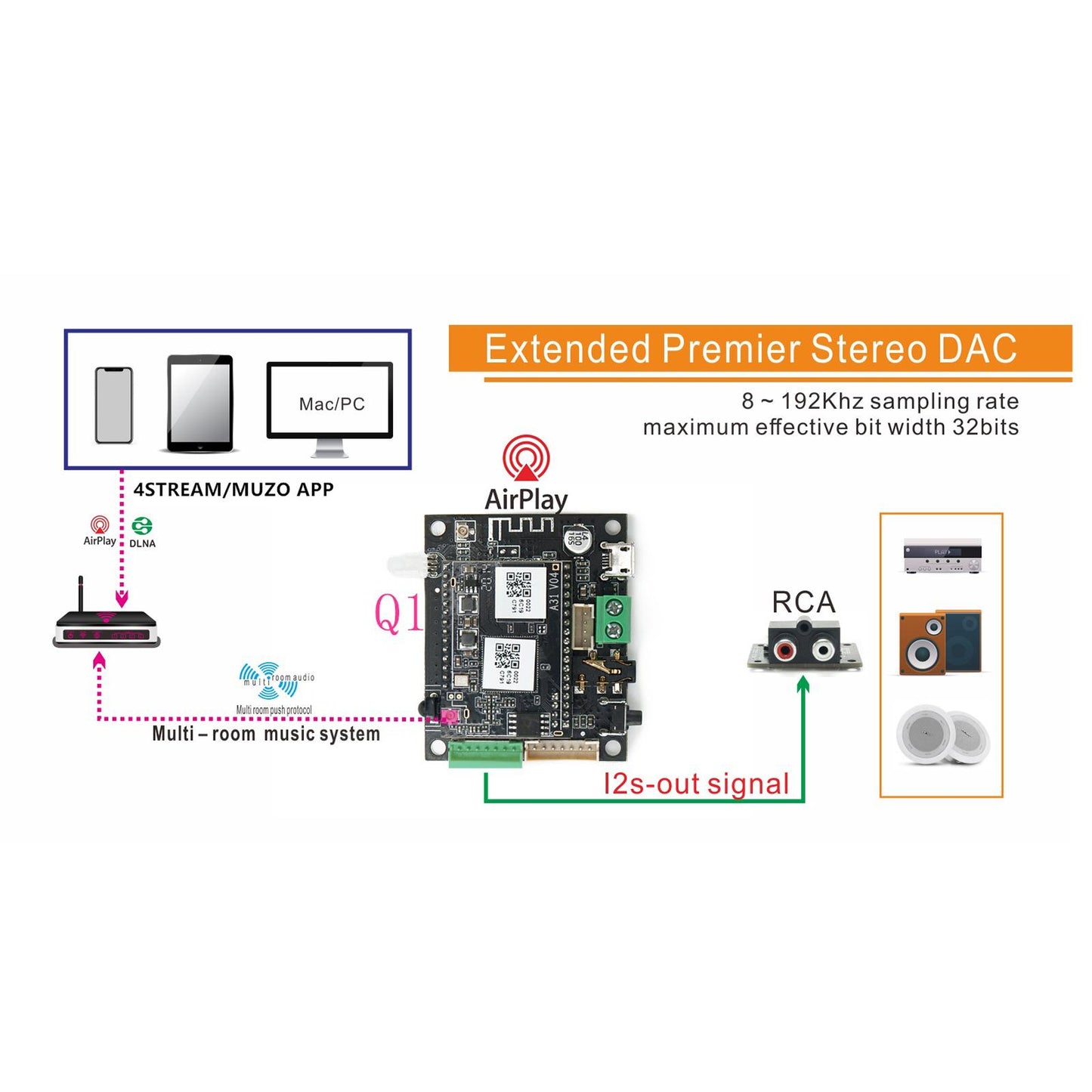

Digital I2S SPDIF: 44.1KHz
Frequency response: 20Hz ~ 20kHz
SNR: 100dB @ 0dBFS 1KHz
THD+N: 0.03% @ 0dBFS, 1KHz
Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Decoding: 24bit/192kHz
Protocols: AirPlay DLNA UPnP Spotify
NAS Support: NAS DLNA support
Dimensions: 55 x 45 x 12mm/1.9 x 1.4 x 0.4inch
Weight: 70g

Package Includes:

1 piece Smart Audio Module
4 pieces Pin PH2.0 Cable
2 pieces Pin Power Cable
1 piece User Manual
