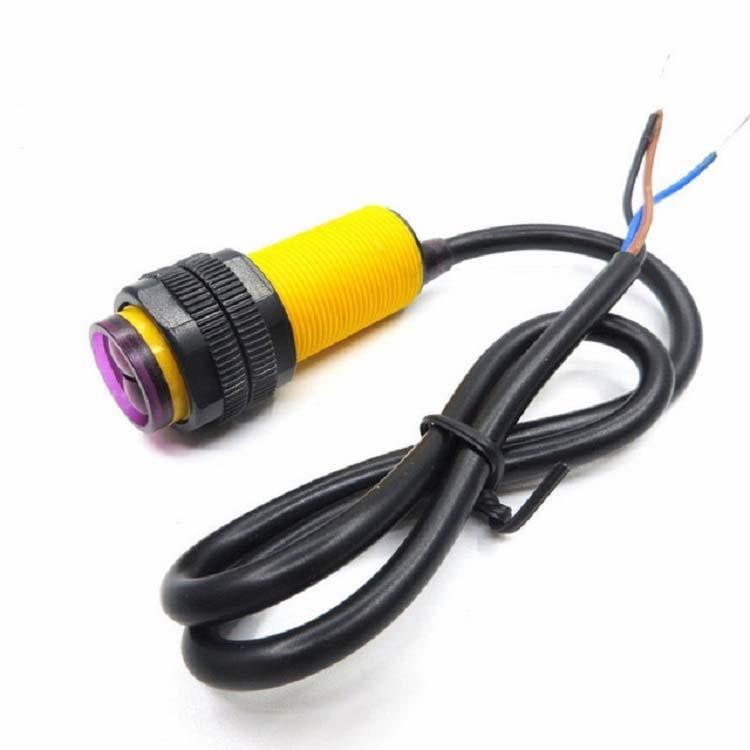

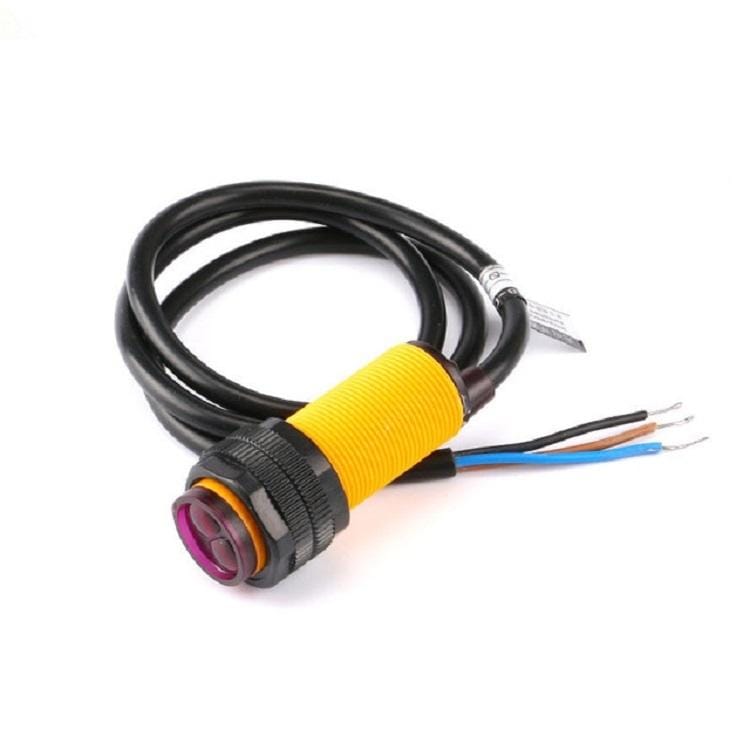

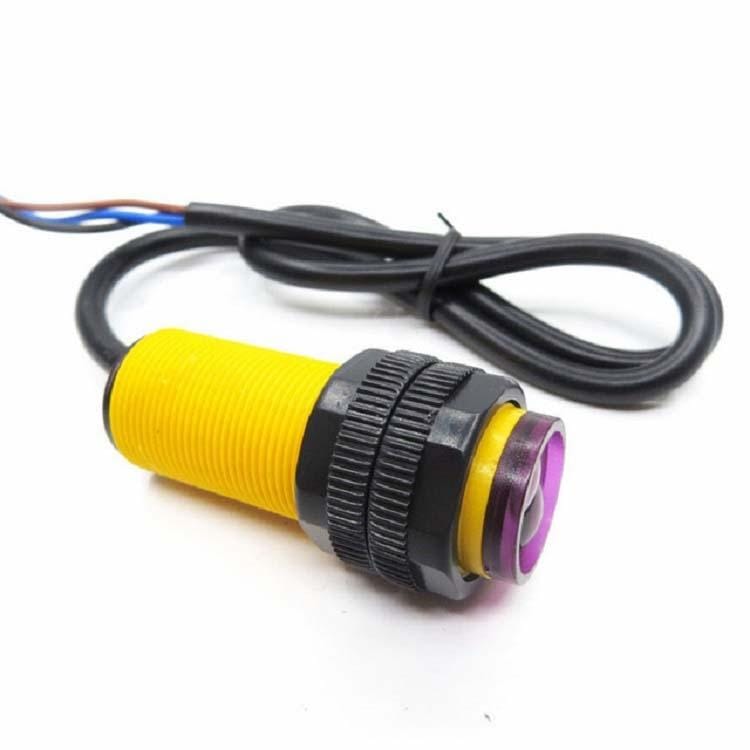

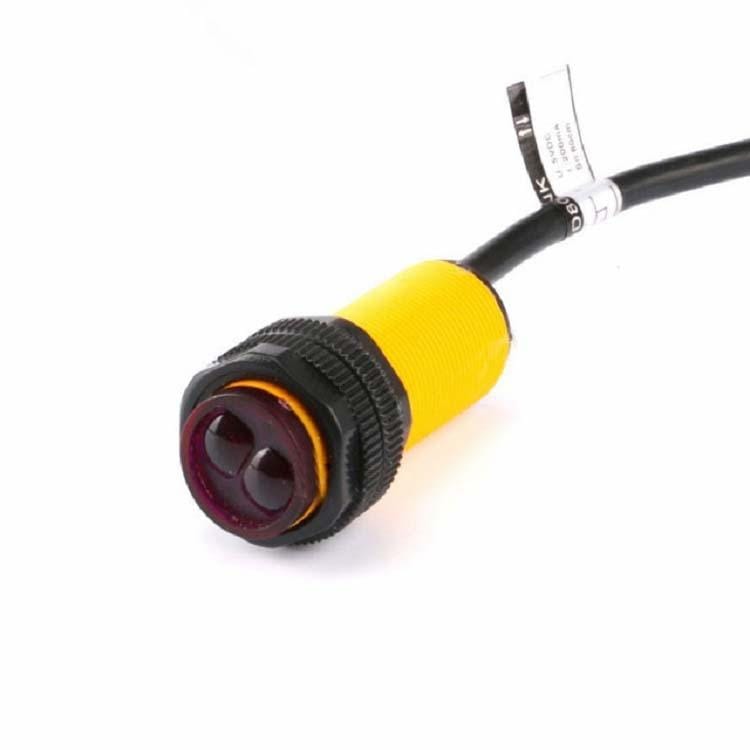

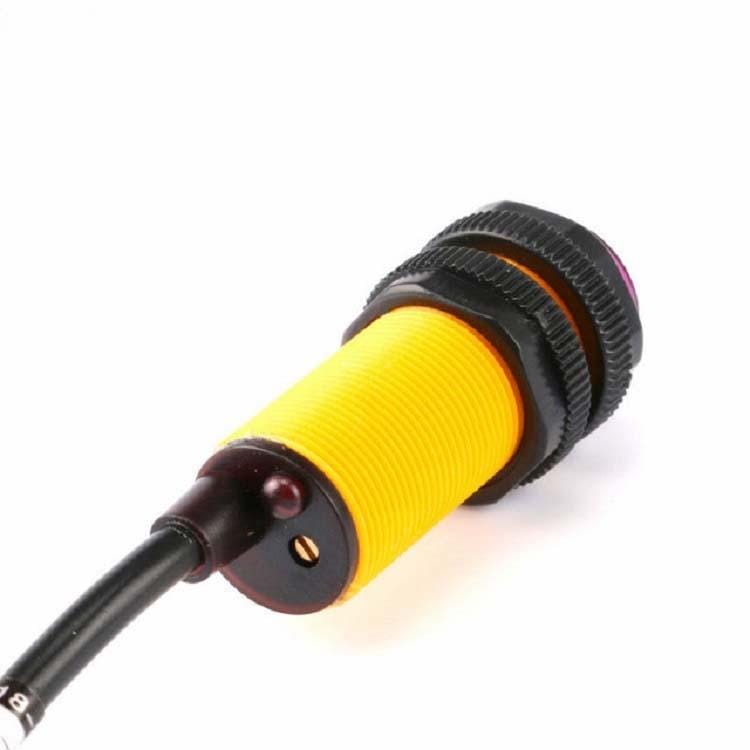

3 PCS E18-D80NK Infrared Obstacle Avoidance Sensor

1. Single weight: 20g
2. Single size: Diameter 17 mm, sensor length 45 mm, lead length 45 cm
3. Material: Plastic shell
4. Uses: Production line cargo counting equipment, multi-function reminder, labyrinth robot, kitchen automation system, security and anti-theft system and many other automation products
5. Specifications: DC/SCR/Relay Control Output100mA/5V power supply, current consumption DC<25mA, response time<2ms, pointing angle?15 , effective distance 3-80CM adjustable, 6. Detection object: transparent or opaque body
7. Working environment temperature: -25 Degree C ~+55 Degree C
8. Standard detection objects: Sunlight below 10000LX, incandescent lamp below 3000LX
9. Features: Long detection distance, little interference from visible light, easy to assemble, easy to use, photoelectric sensor integrating emission and reception, detection distance can be adjusted according to requirements
