Description

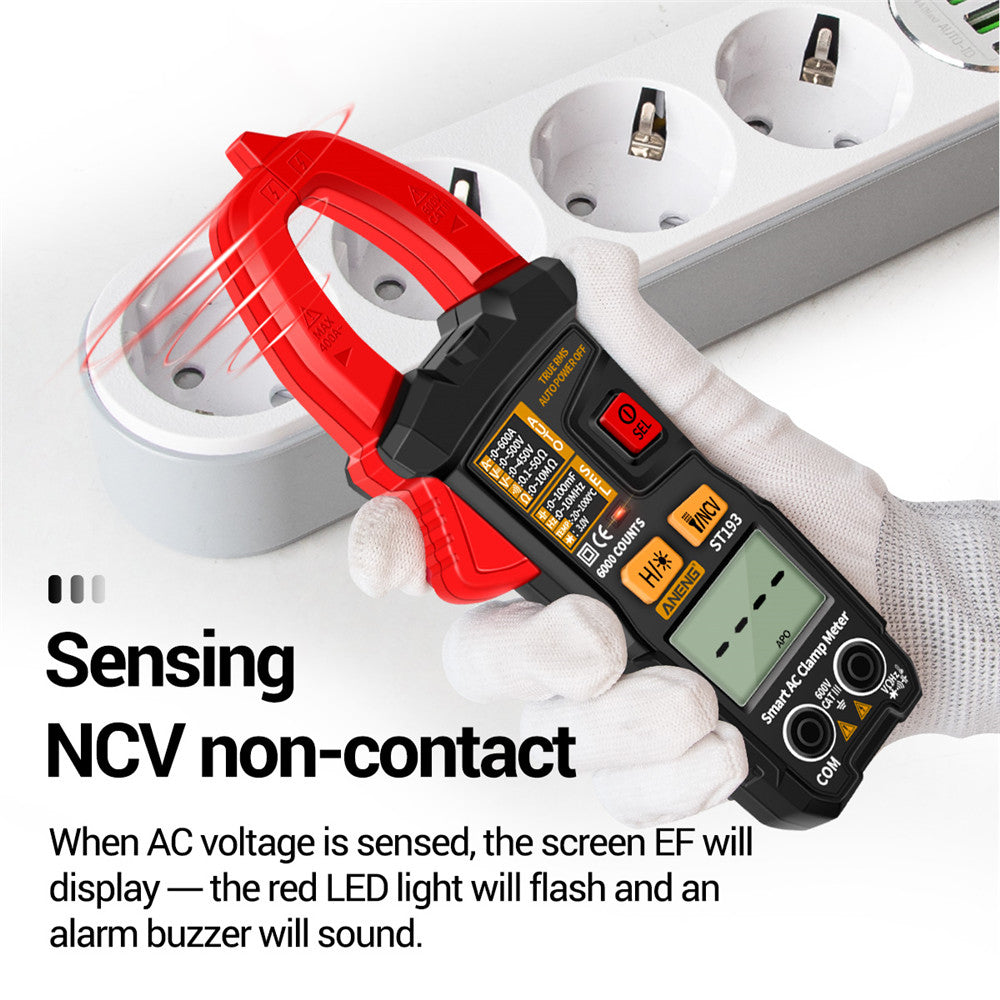

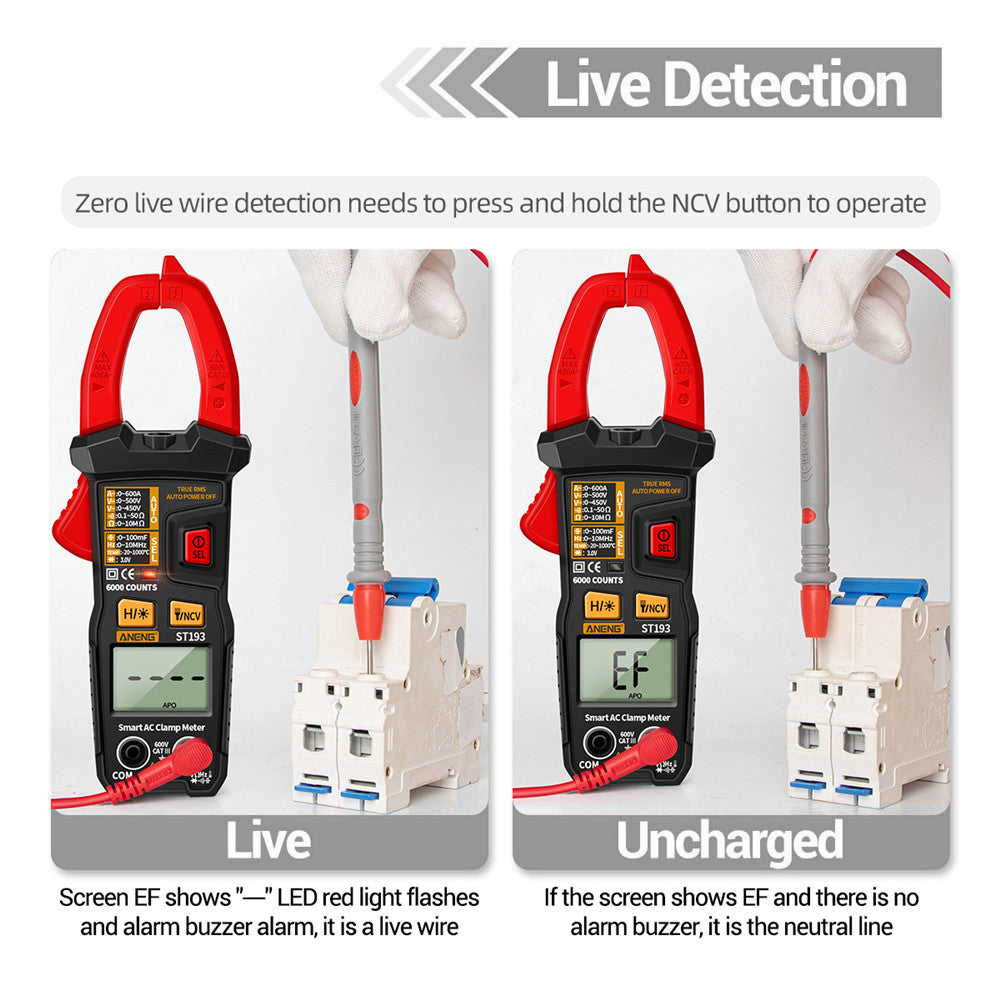

The instrument has stable performance and quality reliability. It is a 3 5/6 digital smart clamp meter. It adopts LCD display. It has clear readings, intuitive display and easy operation. It can be used to measure DC voltage, AC voltage, AC current (clamp head detection), and resistance. , Capacitance, temperature, frequency, diode, line continuity test and non-contact voltage test
There are also functions such as unit symbol display, data retention, and automatic power-off
The whole machine adopts a high-performance MCU processor and has a very high cost performance. The instrument has complete functions, high measurement accuracy and easy use. It is an ideal tool for laboratories, factories, radio enthusiasts and families
The meter is a portable and professional measuring instrument with a LCD digital display and a backlight, which is easy for users to read. One-handed operation is convenient for measurement, with overload protection and low battery indication. Whether used by professionals, factories, schools, enthusiasts or families, it is an ideal multi-function instrument
The meter has automatic range function, reading hold function and automatic shutdown function
Specification:
Maximum allowable voltage between the measuring terminal and the ground: 600V DC or 600V AC
Working height: up to 2000m
Display: LCD
Maximum display value: 5999 digits
Polarity indication: Automatic indication, "-" means negative polarity
Over-range display: "OL" or "-OL"
Sampling time: about 3 times / second
Unit display: with function, power unit display
Automatic shutdown time: 10 minutes
Power supply: DC power supply 3.0V
Jaw opening size: 25mm
The cable diameter: not more than 23mm
Static working current: not more than 12.0mA (without backlight)
Battery type: 1.5V X AAA battery (not included)
Temperature coefficient: less than 0.1Xaccuracy/?
Working temperature: 18?-28?
Storage temperature: -10?-50?
Size: 184.0x66.0x32.5mm
Ambient temperature: 23±5?
Relative humidity: <75%

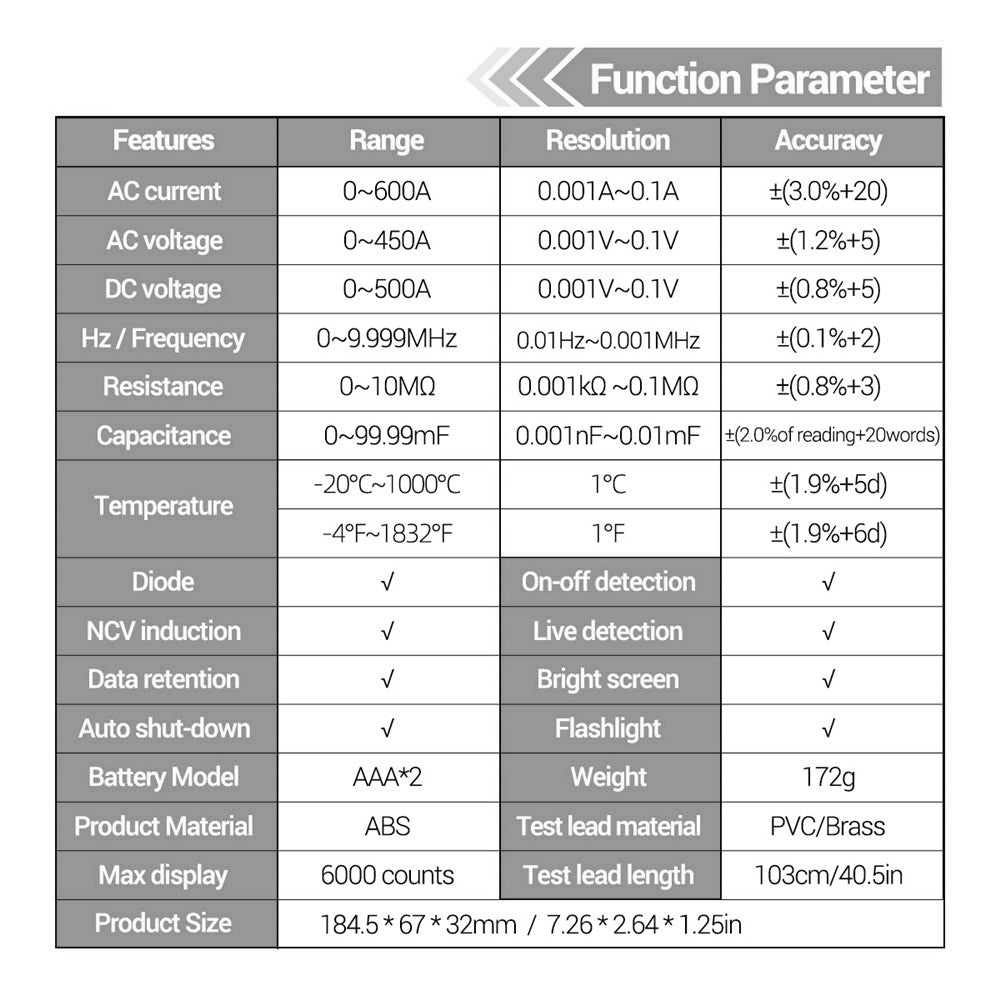

Range | Resolution | Accuracy | |
AC current | 6A | 0.001A | ± (3.0% reading + 20 words) |
60A | 0.01A | ± (2.5% reading + 8 digits) | |
400A | 0.1A | ||
400A-600A | 0.1A | ± (3.0% reading + 10 digits) for reference only |
|
DC voltage | 6V | 0.001V | ± (0.5% reading + 3 digits) |
60V | 0.01V | ||
500V | 0.1V | ± (0.8% reading + 5 digits) | |
AC voltage | 6V | 0.001V | ± (0.8% reading + 5 digits) |
60V | 0.01V | ||
450V | 0.1V | ± (1.2% of reading + 5 digits) | |
Frequency | 99.99Hz | 0.01Hz | ±(0.1% reading + 2 digits) |
999.9Hz | 0.1Hz | ||
9.999kHz | 0.001KHz | ||
99.99KHZ | 0.01KHz | ||
999.9KHZ | 0.1KHz | ||
9.999MHZ | 0.001MHz | ||
Duty cycle | 1-99% | 0.1% | ±(0.1% reading + 2 digits) |
Capacitance | 9.999nF | 0.001nF | ±(5.0% reading + 20 digits) |
99.99nF | 0.01nF | ± (2.0% reading + 5 digits) | |
999.9nF | 0.1nF | ||
9.999?F | 0.001?F | ||
99.99?F | 0.01?F | ± (2.0% reading + 5 digits) | |
999.9?F | 0.1?F | ||
9.999mF | 0.001mF | ±(5.0% reading + 5 digits) | |
99.99mF | 0.01mF | ||
Temperature test | -20?-300 | ±(2.5%+5d) | 1? |
301?-1000? | ±(2.5%+5d) | 1? | |
-4?-600? | ±(2.5%+5d) | 1? | |
601?-1832? | ±(2.5%+5d) | 1? | |
Resistance | 6k? | 0.001k? | ±(0.8% reading + 3 digits) |
60k? | 0.01k? | ||
600k? | 0.1k? | ||
6M? | 0.001M? | ±(1.2% reading + 3 digits) | |
10M? | 0.1M? |
Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

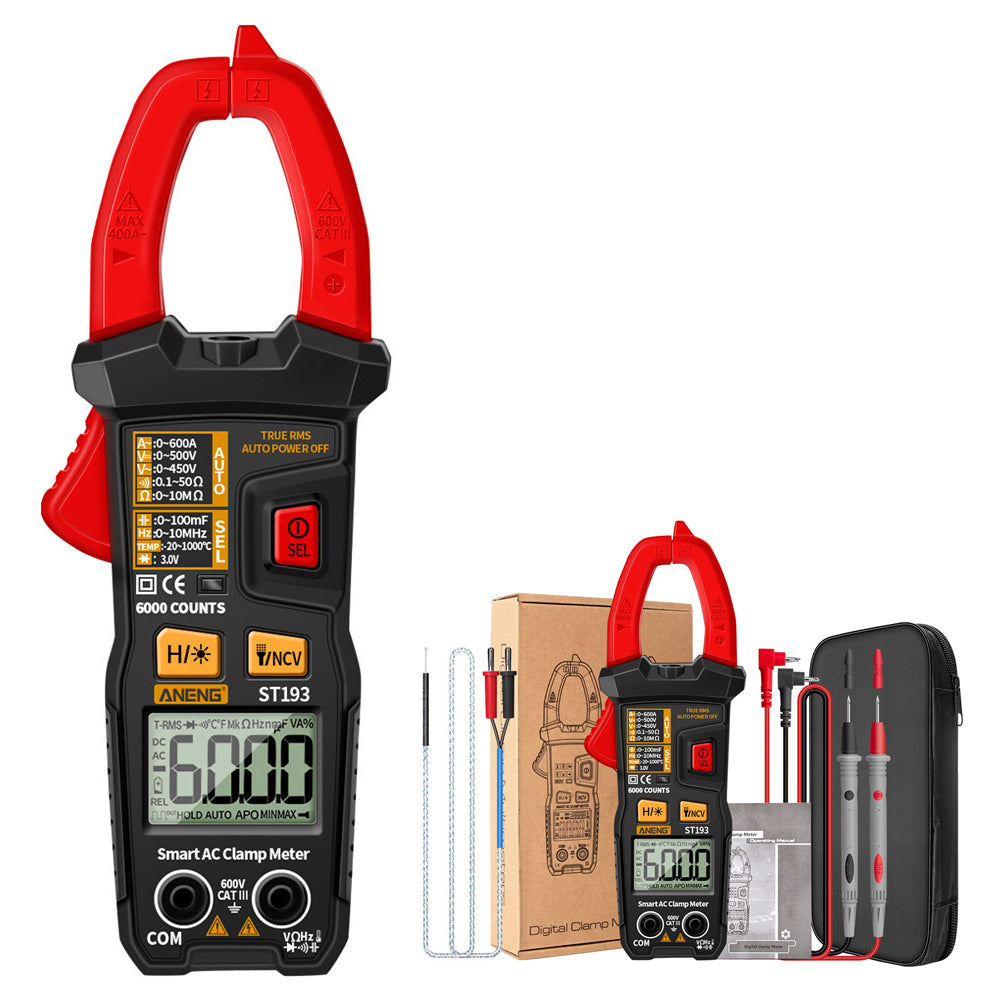

Package included:
1 x Multimeter
2 x Test Lines
1 x Thermocouple
1 x English User Manual
1 x Canvas Storage Bag
