Description
The device can make a quick and effective measurement of the thickness of the non-metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate. It can also automatically identify the magnetic and non-magnetic metal substrate.
- Basic Functions: it can measure the thickness of the non-magnetic coating on the magnetic metal substrate, and the thickness of the non-metallic coating on the non-magnetic metal substrate
- Smart Gauge: automatically identifying non-magnetic and magnetic metal substrate
- 3 Measurement Modes Switchable: Single measurement (SNG), continuous measurement(CTN) and differential measurement(DIF) available, short press the MODE button to switch
- Calibration Operation: including zero-point calibration, offset calibration and basic calibration
- Metric and Imperial Measuring Units: short press the UNIT button to switch among μm(metric), mil(imperial), and mm(metric) in turn.
- More Features: LCD display with backlight, screen flip, and automatic shutdown(1 minutes) function

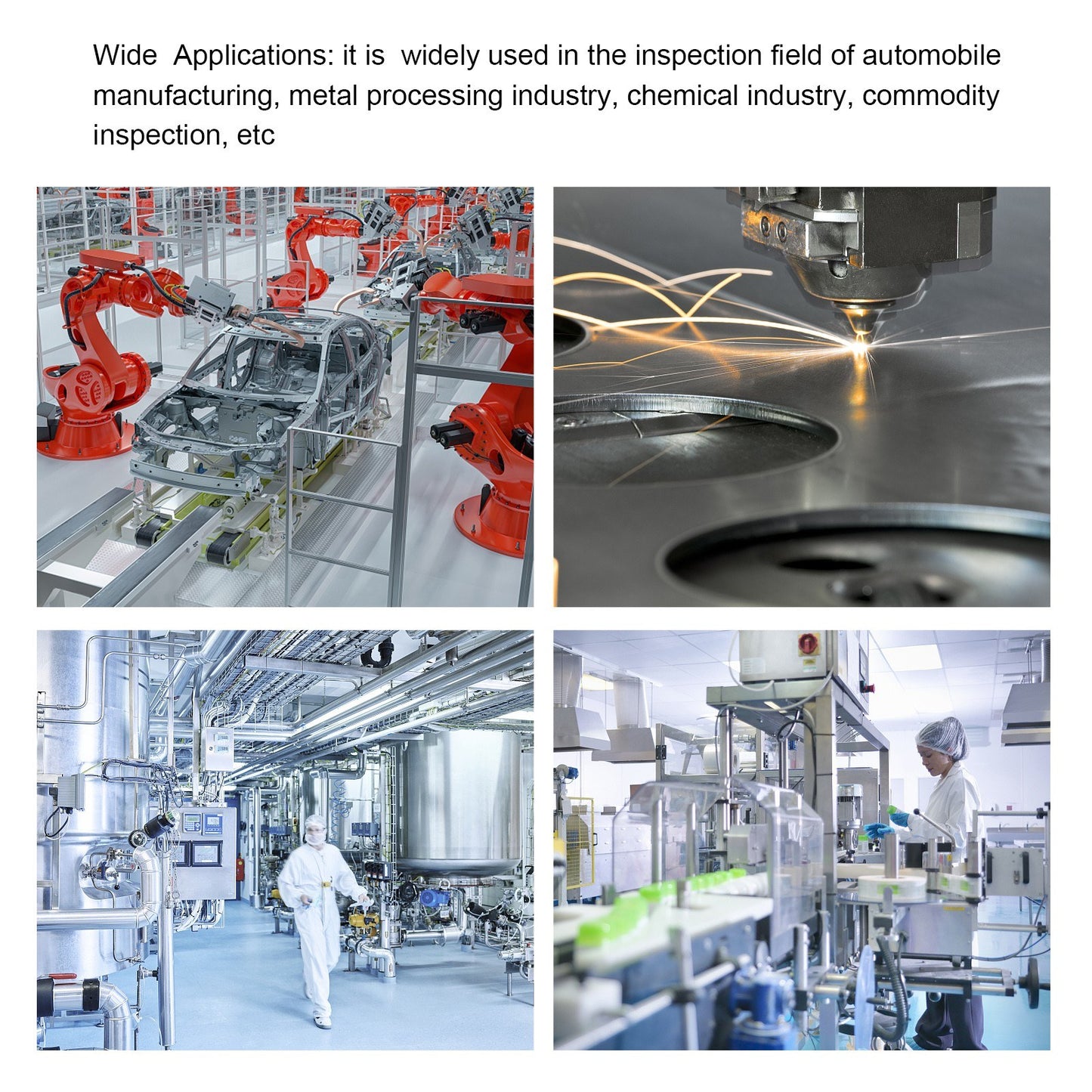

- Wide Applications: it is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

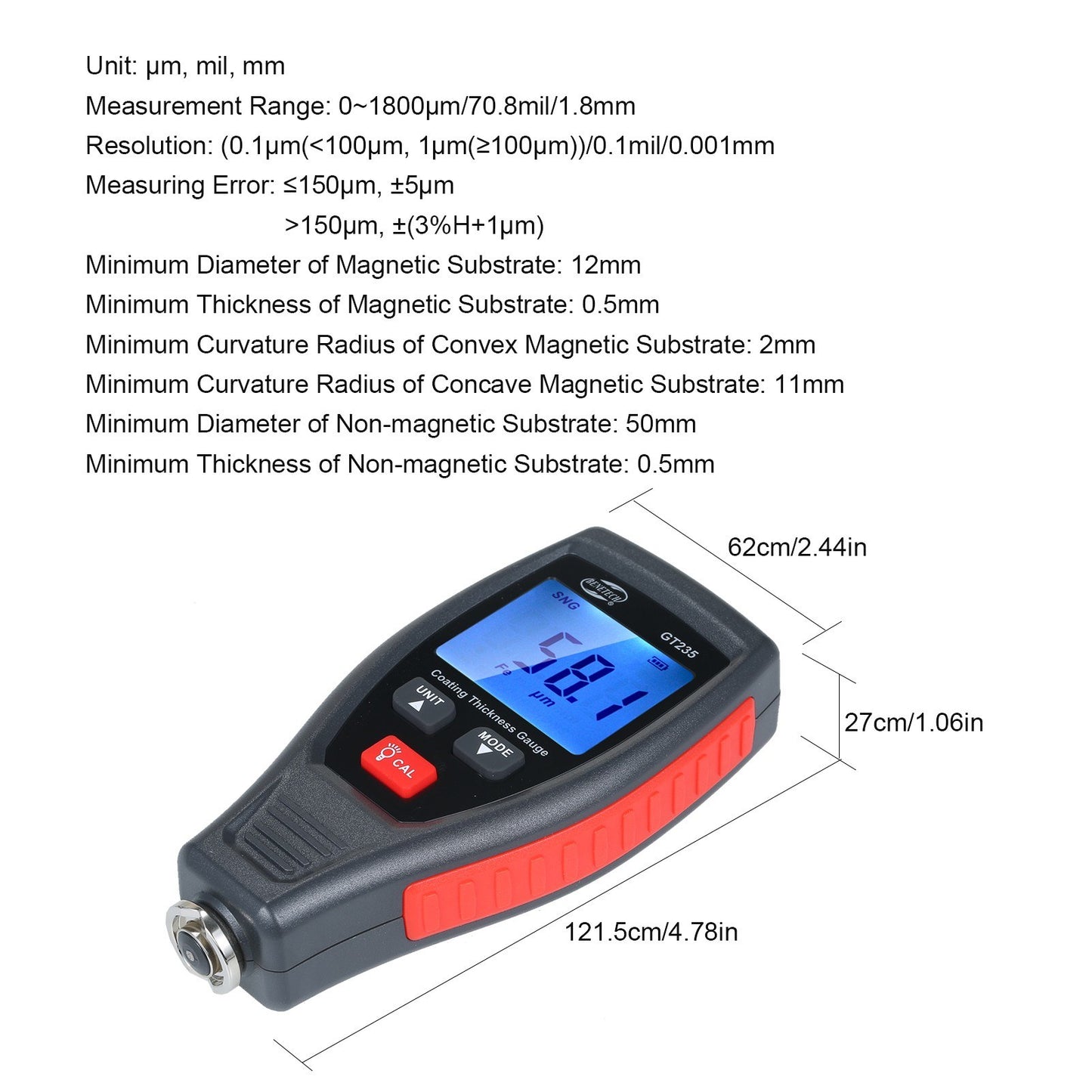

Specifications:
- Material: ABS
- Unit: μm, mil, mm
- Measurement Range: 0~1800μm/70.8mil/1.8mm
- Resolution: (0.1μm (<100μm, 1μm (≥100μm))/0.1mil/0.001mm
- Measuring Error:
- ≤150μm, ±5μm
- >150μm, ±3%H+1μm
- Minimum Diameter of Magnetic Substrate: 12mm
- Minimum Thickness of Magnetic Substrate: 0.5mm
- Minimum Curvature Radius of Convex Magnetic Substrate: 2mm
- Minimum Curvature Radius of Concave Magnetic Substrate: 11mm
- Minimum Diameter of Non-magnetic Substrate: 50mm
- Minimum Thickness of Non-magnetic Substrate: 0.5mm
- Operating Environment: -20~40?, 10~95%RH

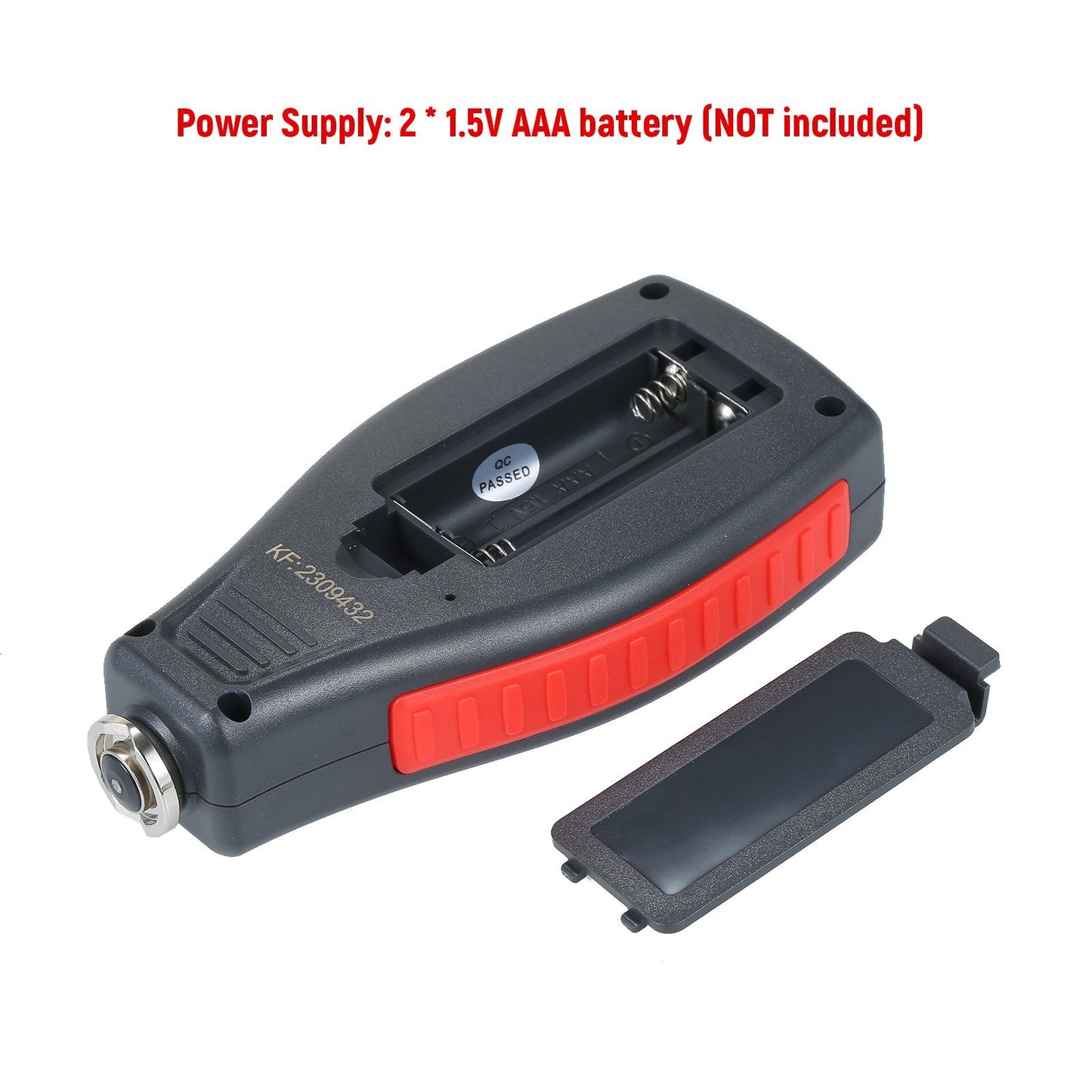

- Power Supply: 2 * 1.5V AAA battery (NOT included)
- Item Size: 121.5 * 62 * 27mm / 4.78 * 2.44 * 1.06in
- Item Weight: 176g / 6.21oz

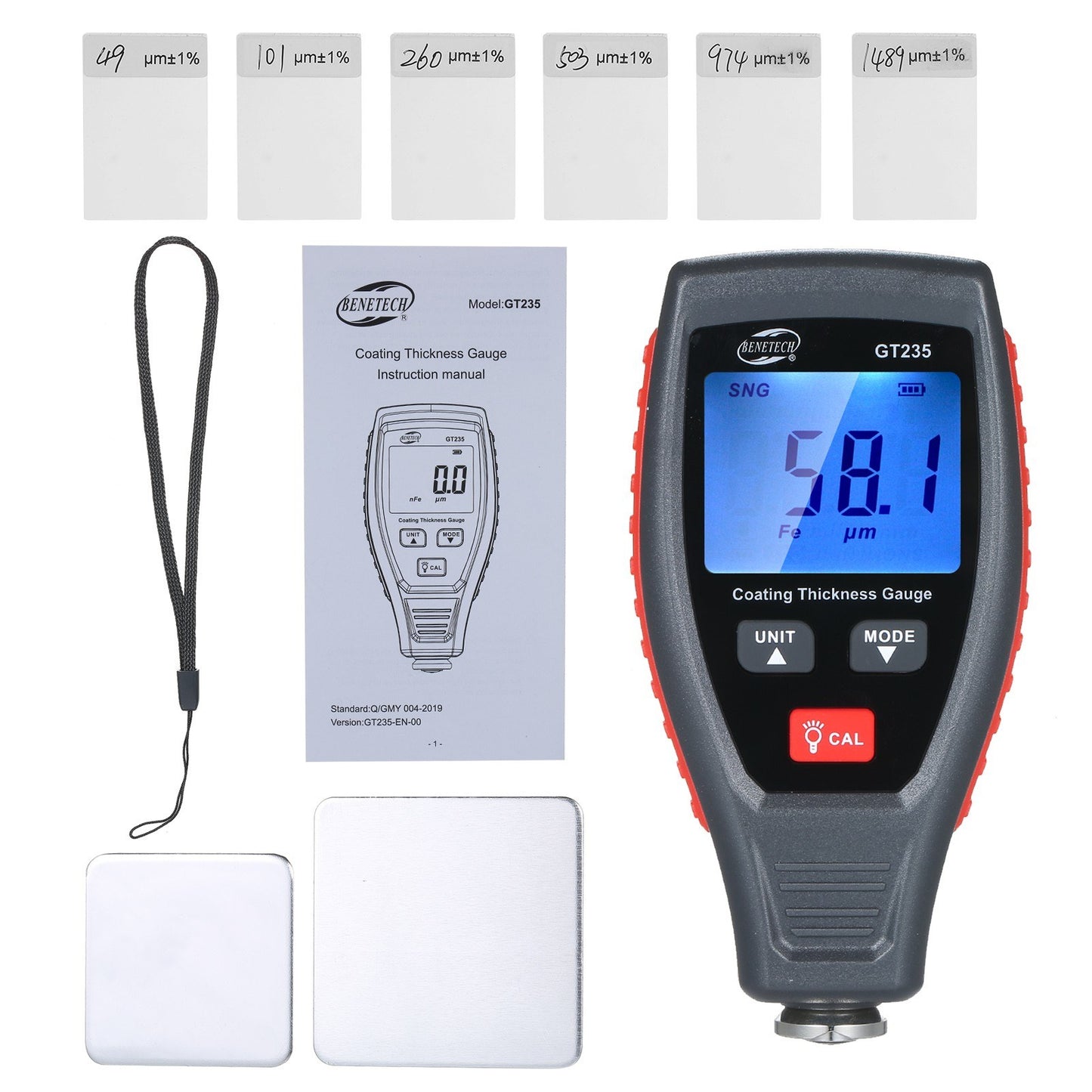

Package included:
1 x Thickness Gauge
1 x Lanyard
1 x Pouch
2 x Calibration Substrates
5 x Calibration Coating Film
1 x English User Manual
