Description
Description:

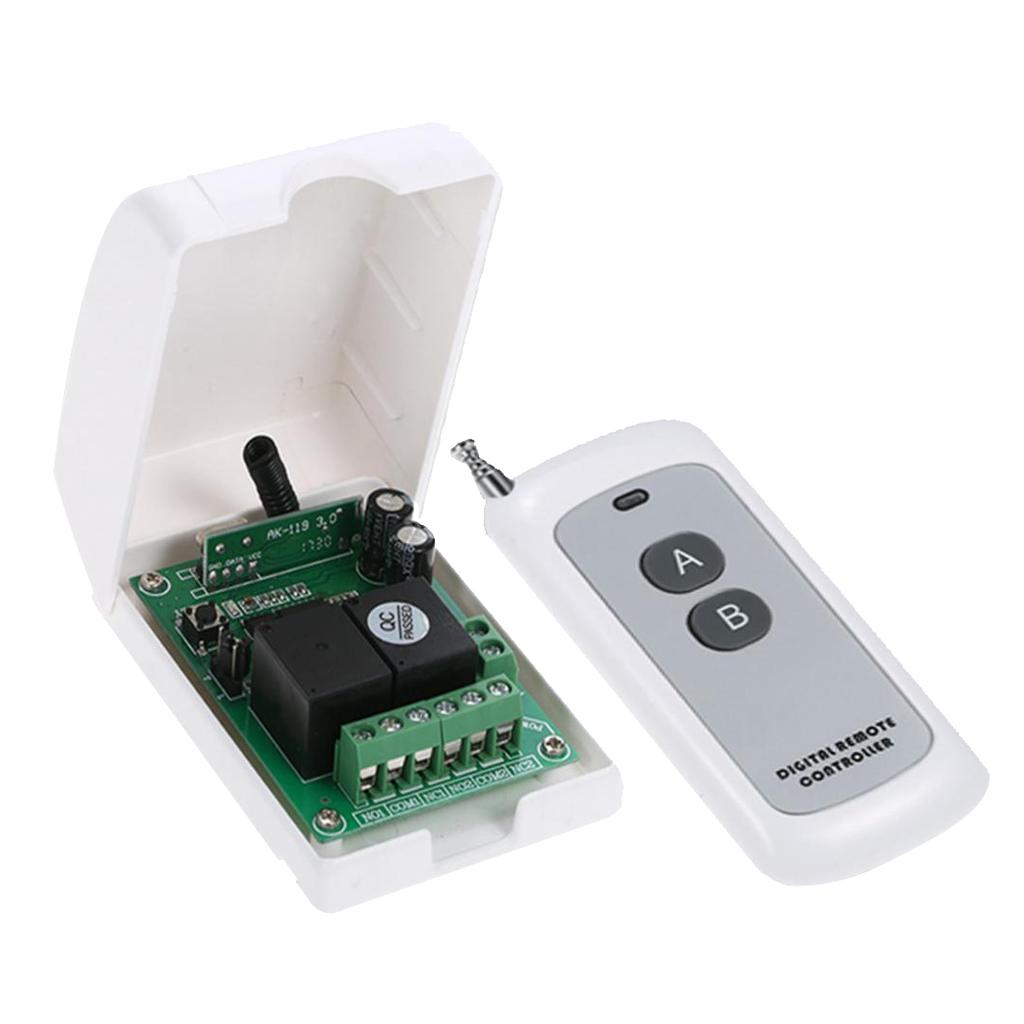

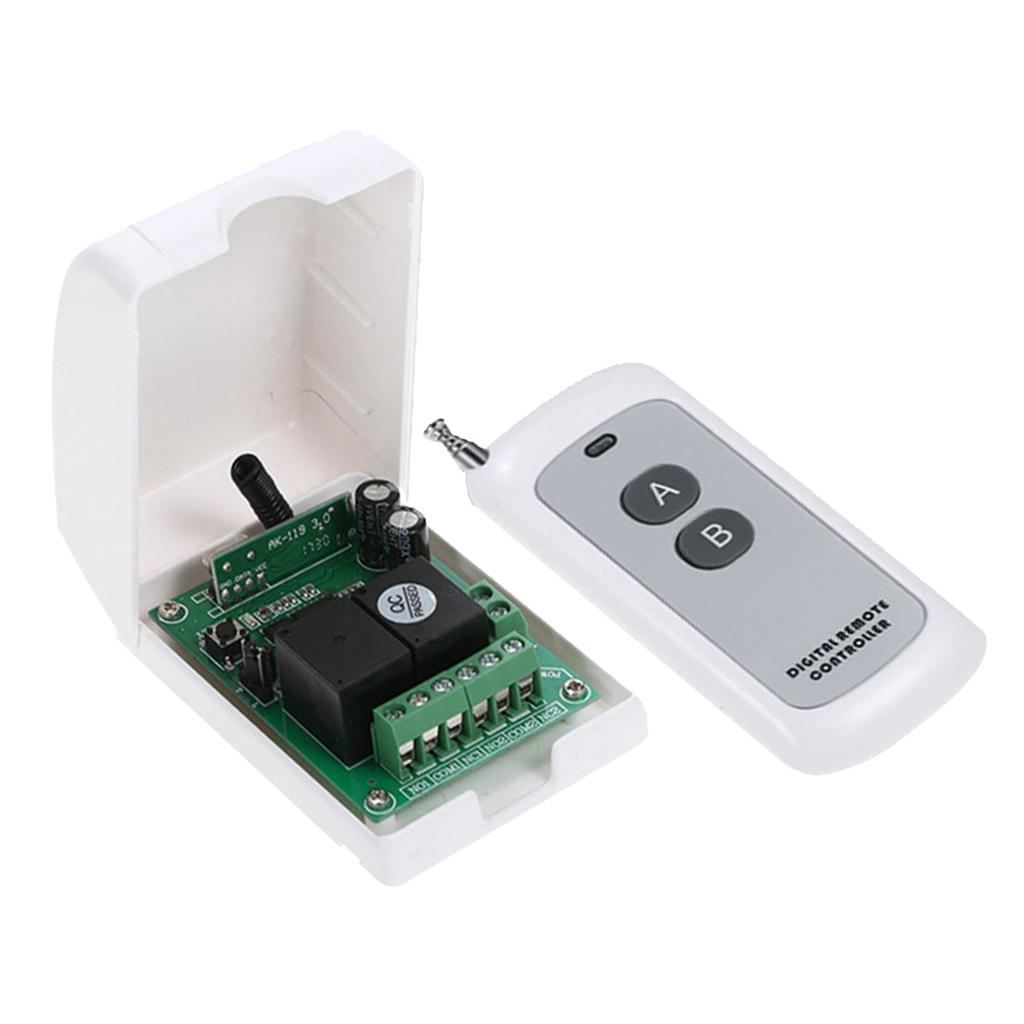

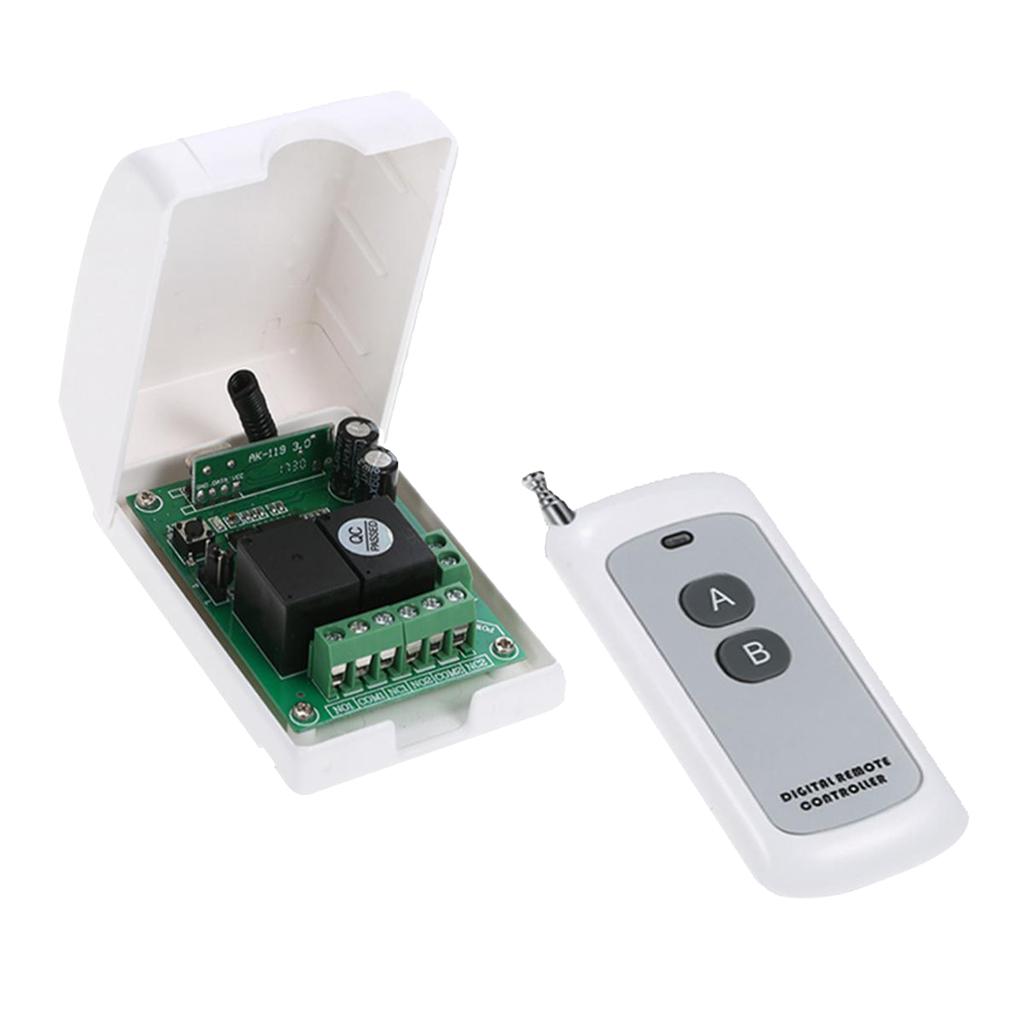

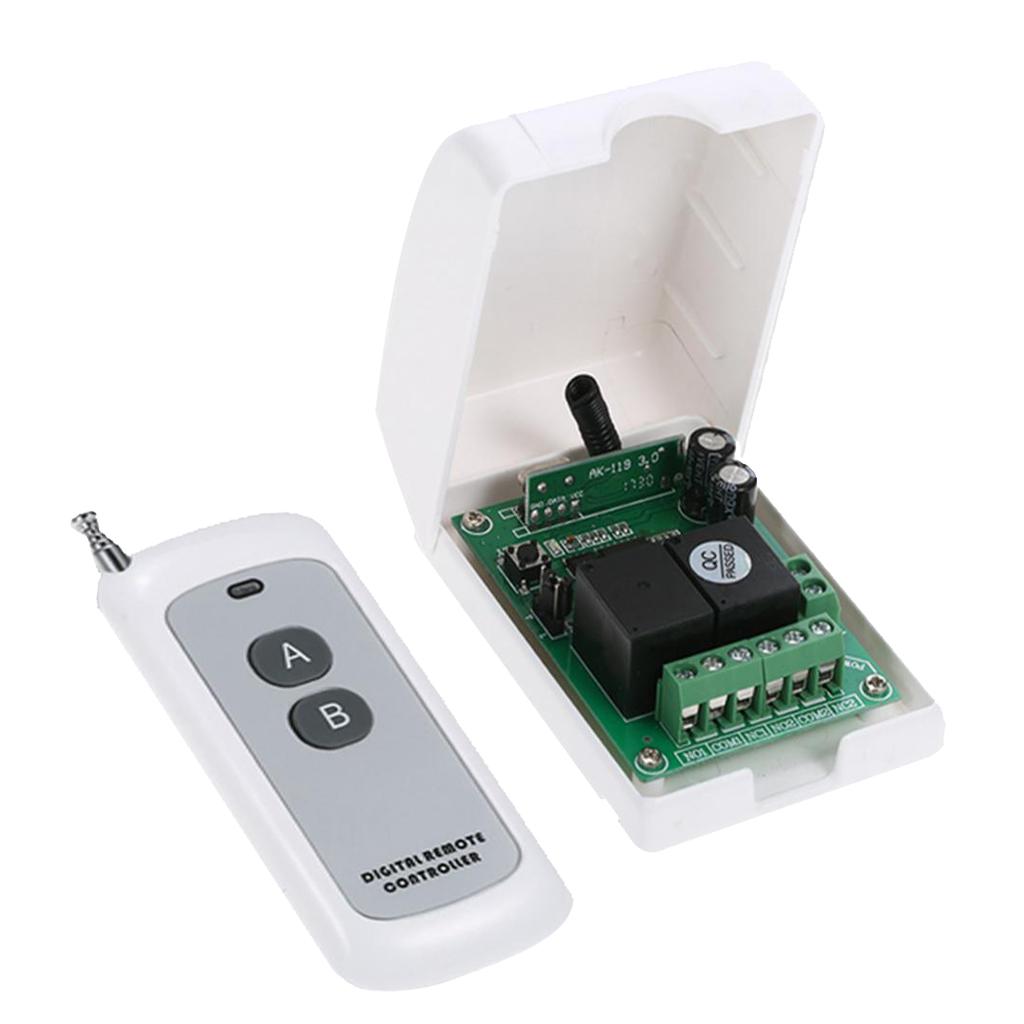

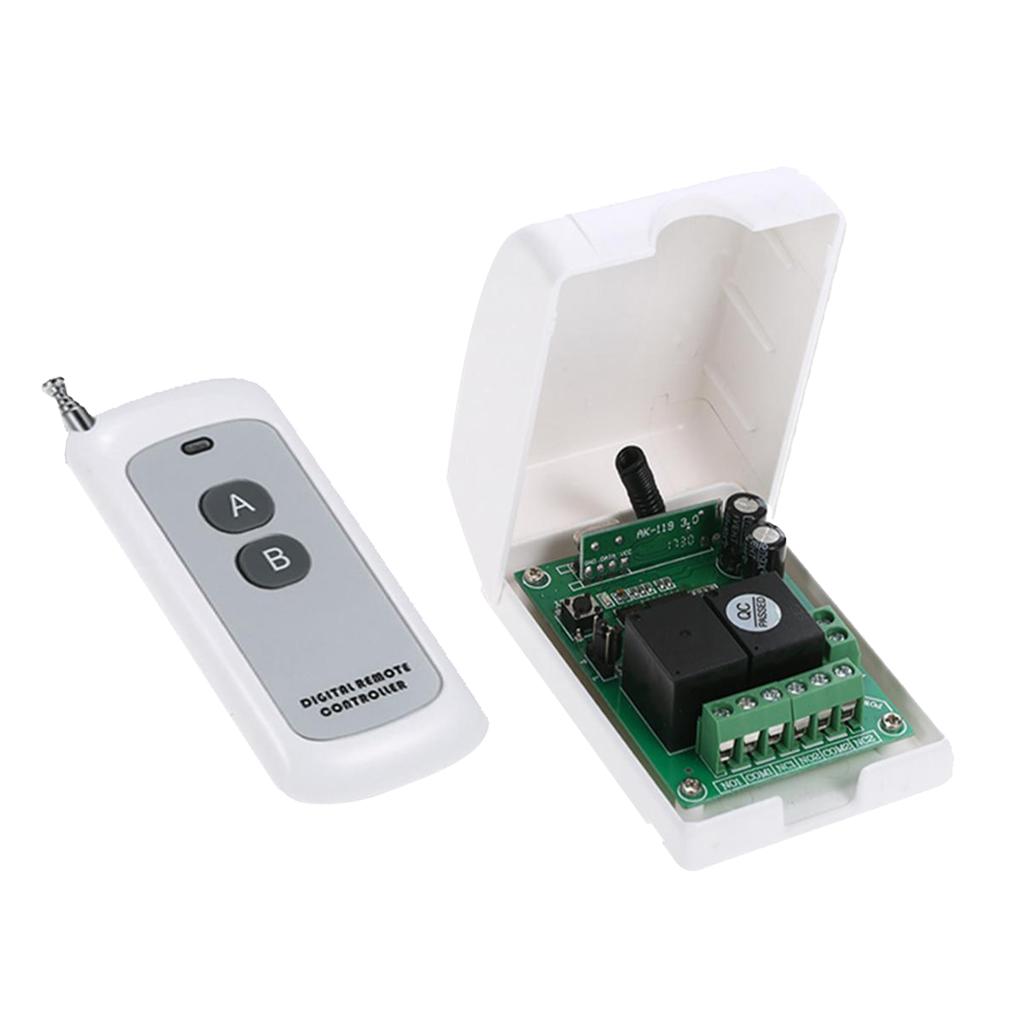

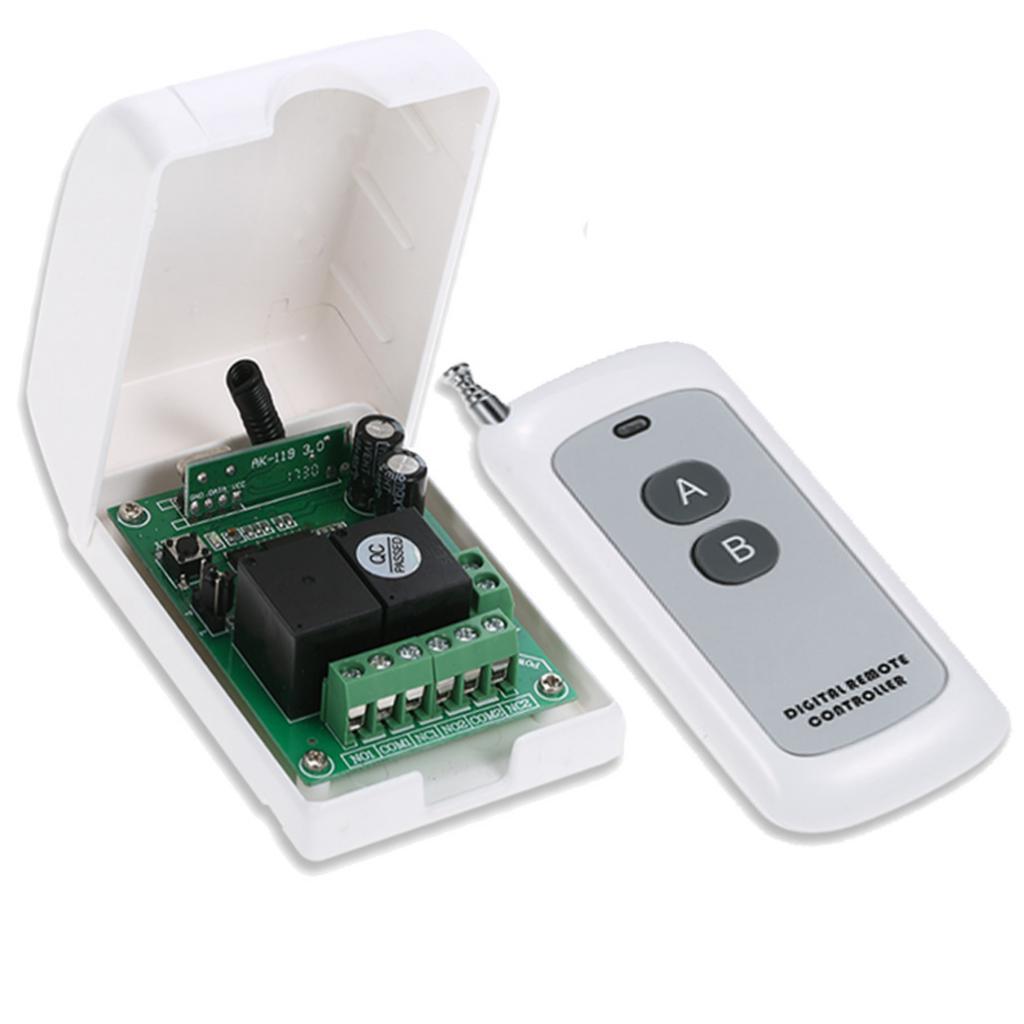

The 12-volt 2-way wireless intelligent receiver controller with two relays allows the device to be controlled to reach the forward and reverse rotation of the motor, or the on/off transition of the switch and various special control procedures.
The product has the characteristics of stable performance, small size and high receiving sensitivity.
Mainly used in electric doors, windows, lifting equipment, gateways, lifts, industrial control and security industry.
This controller is compatible with many different types of wireless remote controllers such as 2262/2260/1527/2240.
Customers who can meet different needs can be matched with their favorite remote control, and can choose the data bits and working methods that customers need.
Specification:
Material: FR-4 pcb board
Working voltage: DC12V (12V23A)
Working frequency: 433MHz
Working chip: learning code (1527)
Transmission distance: >1000m (opening board sensitivity is above -103dBm)
Modulation method: ASK (amplitude modulation)
Number of buttons: 1 button, 2 buttons, 4 buttons, 5 buttons, 6 buttons, 8 buttons (optional)
Product size: 70x50x18 mm / 2.75x1.96x0.70 inch
output method:
A, non-locking - the default working mode, the work switching jumps and does not insert;
B. Self-locking - connect the T position with a shorting cap
C. - connect the L position with a short circuit
Learning/clearing methods and steps:
1. Press the learning button, the indicator light is off, let go, press any button on the remote control and the indicator light flashes four times and then it is always on, indicating that the learning is successful;
2, can learn more than 20 different address codes of the 2262 chip, 1527 chip and other wireless remote control of the same frequency;
3. Clear: Continue to learn the button, the indicator light is off to long light, indicating that all the stored information has been successfully cleared.
Package Includes:
1 piece 12V two way learning code controller
Note:
1. Do not operate with power. The power should be turned off for operation, and the power is used after the test is confirmed to be correct.
2. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery voltage is insufficient).
3, when using wireless electronic products should pay attention to avoid metal masks, large electronic equipment, electromagnetic fields, etc. have a strong interference source, to avoid remote control and receiving distance is short or can not work properly.
4. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard.
