Description

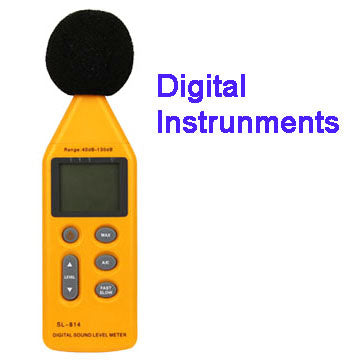

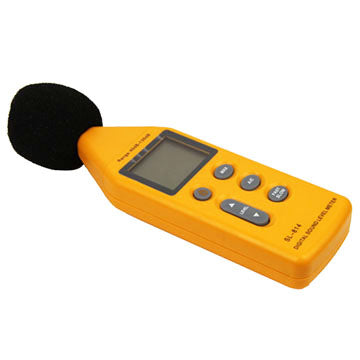

This Digital Sound Level Meter is an instrument to measure Sound Pressure Level in decibels (dB). The Sound level meter can be used for noise projects, quality control, environmental noise control and health monitoring such as: construction, schools, hospitals, shopping malls, theaters, offices, road traffic, family, audio and other occasions, the noise level measurement applications. This meter is featured with wide measuring range (40 ~ 130 dB), Bar-Graph Indication, A/C frequency weighting, Fast/Slow response and Maximum Hold function.
Feature:
- This unit was designed according to the IEC 651 Type 2 and ANSI S1.4 Type 2 for sound level meters
- Instantaneous Sound Measure Function
- Wide Measuring Range: 40~130 dB
- With 2 equivalent weighted sound pressure levels A and C
- Fast and Slow dynamic characteristic modes
- AC signed output for frequency analyzer level recorder, FFT analyzer and graphic recorder
- Equipped with sponge ball to filter noise or unwanted signal
- Bar graph indication for Sound Level Range

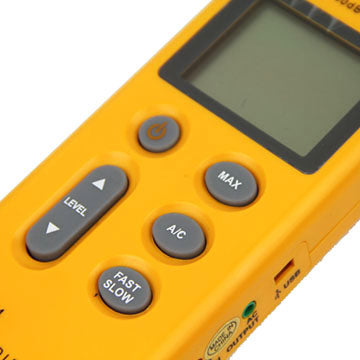

- Large LCD screen with 4 digits reading

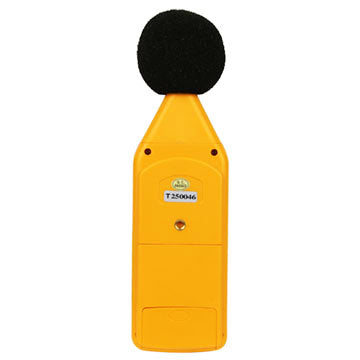

- With Tripod mounting on the back of the unit for field use
- USB functionality can be extended
- Portable, easy to use and handy instrument for sound quality control in office, home, school and construction site
Specifications:
- Sound Level: 40 ~ 130 dB with Level selecting button switches
Level 1: 40 ~ 70 dB
Level 2: 60 ~ 90 dB
Level 3: 80 ~ 110 dB
Level 4: 100 ~ 130 dB
Level 5: 40 ~ 130 dB - Accuracy: ±2dB
- Frequency Range: 31.5 Hz ~ 8.5 kHz
- Linearity Range: 30 dB
- Measuring Level: 40 ~ 130 dB(A) (A-weighted decibels), 40 ~ 130 dB(C) (C-weighted decibels)
- Frequency Weighting: A, C
- LCD display: 4 digits
Resolution: 0.1 dB
Display: 0.5 secretary - Bar graph: 50 dB scale at 1 dB step for monitoring current sound pressure level display period: 50 mS
- Over range indication: Under indication less than lower limit of the range

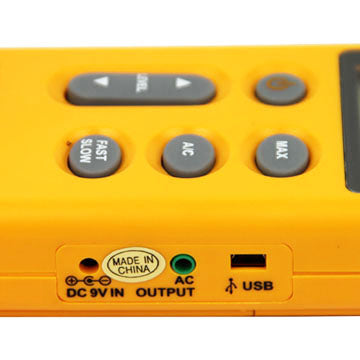

- AC output: 0.707 Vrms at Full Scale output impedance approx. 600 Ω
- Time weighting: Fast/Slow
- Microphone: 1/2 inch electret condenser microphone
- Max: Maximum hold

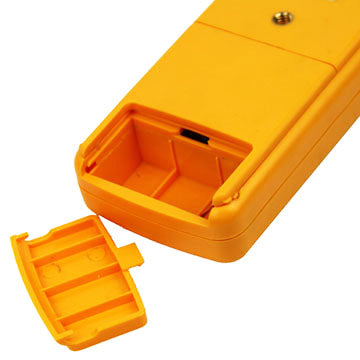

- Power Supply: 9V 6F22 Alkaline cells or DC 9V 100mA (battery and power adapter NOT included)
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity: 10 ~ 70 % R.H. - Storage Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Storage Humidity: 10 ~ 80 % R.H.
- Dimensions: Approx. 235 * 70 * 30mm
- Item weight: 207g
- Package size: 265 * 128 * 76mm
- Package weight: 328g
Package included:
- 1 x Digital Sound Level Meter LCD Display Decibel Pressure Logger 40~130 dB
- 1 x Spong Ball

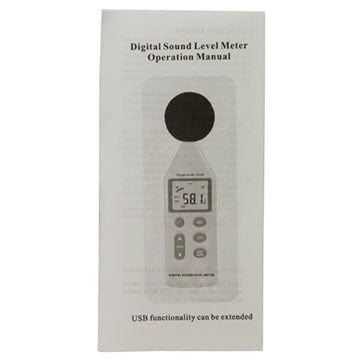

- 1 x English Manual
