Description
Description:

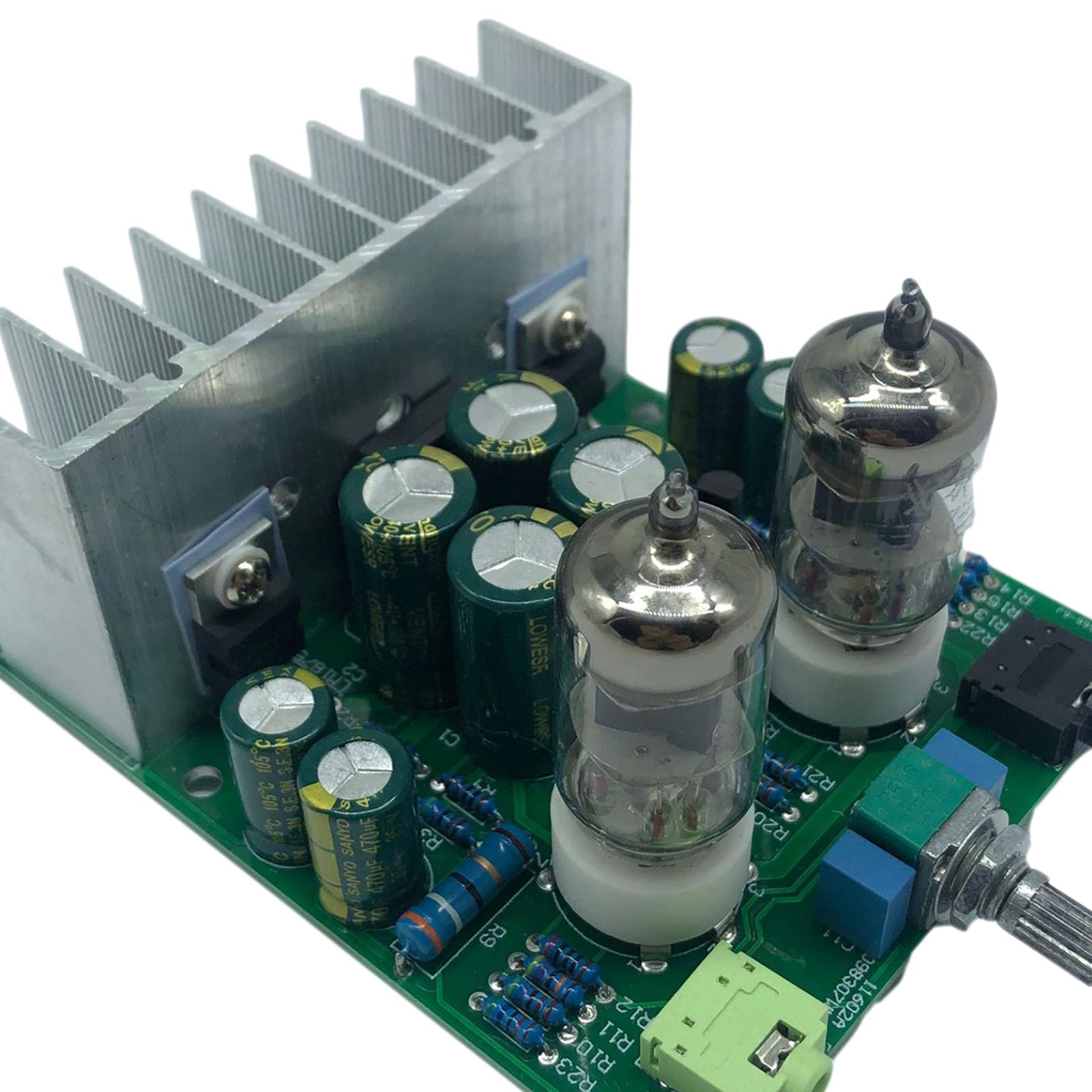

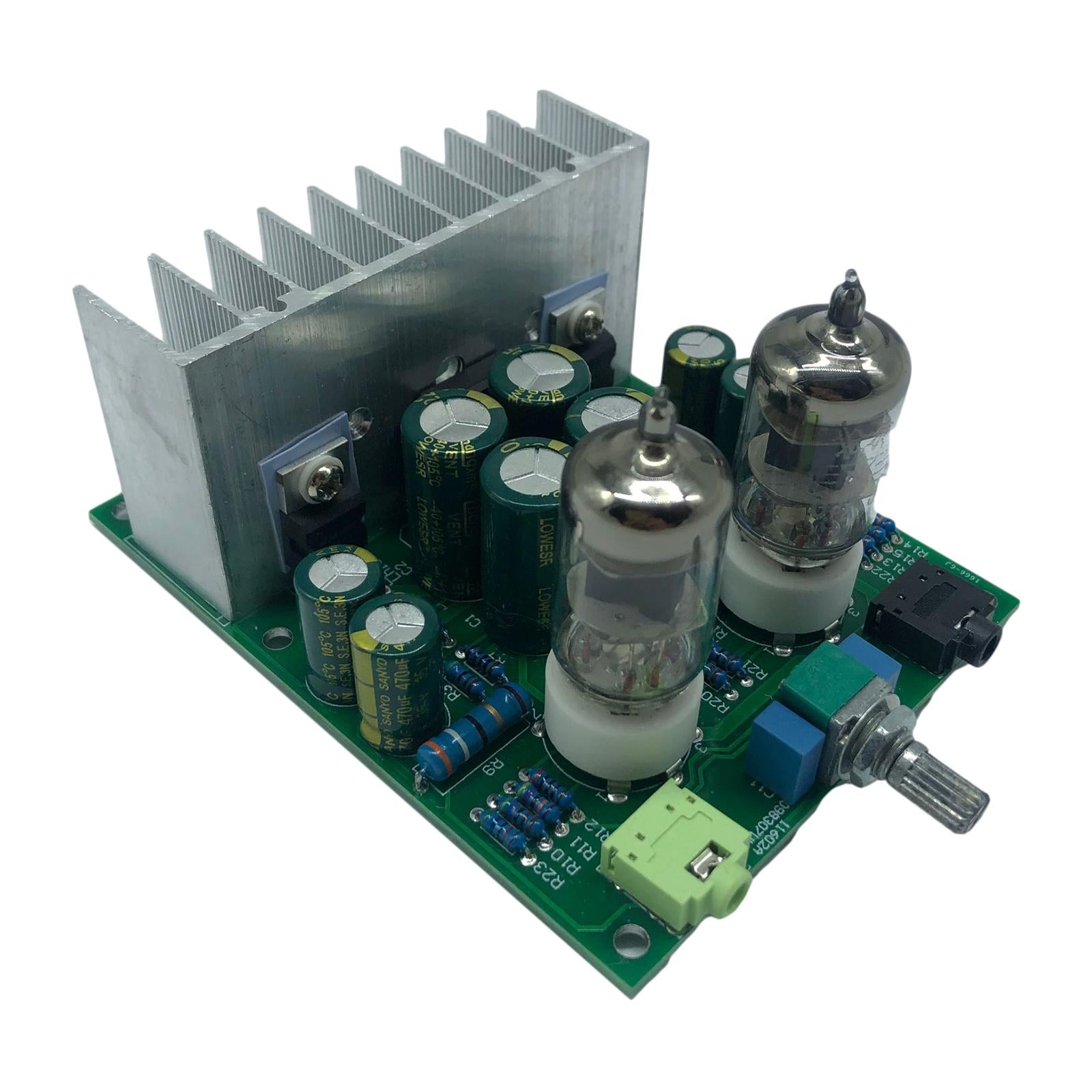

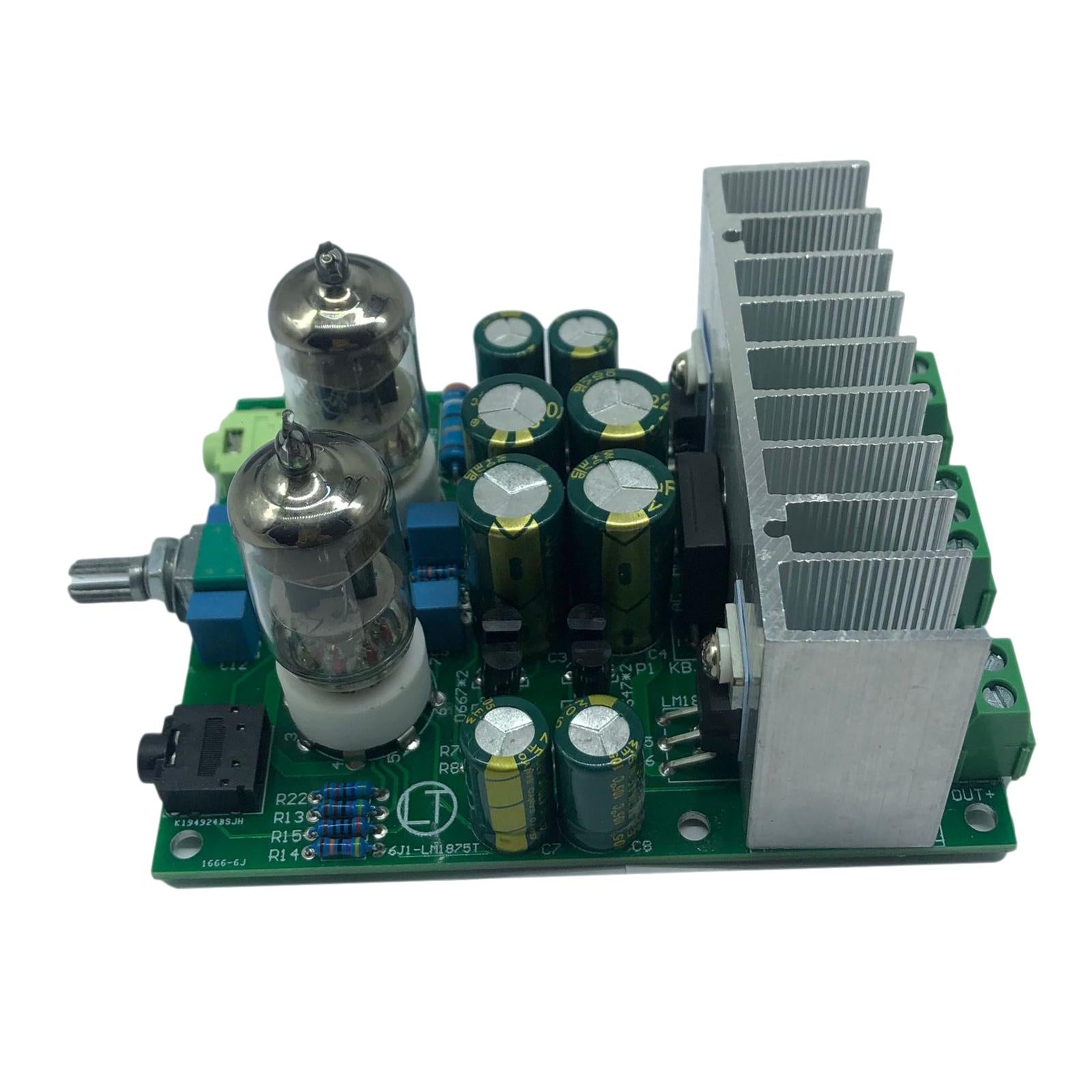

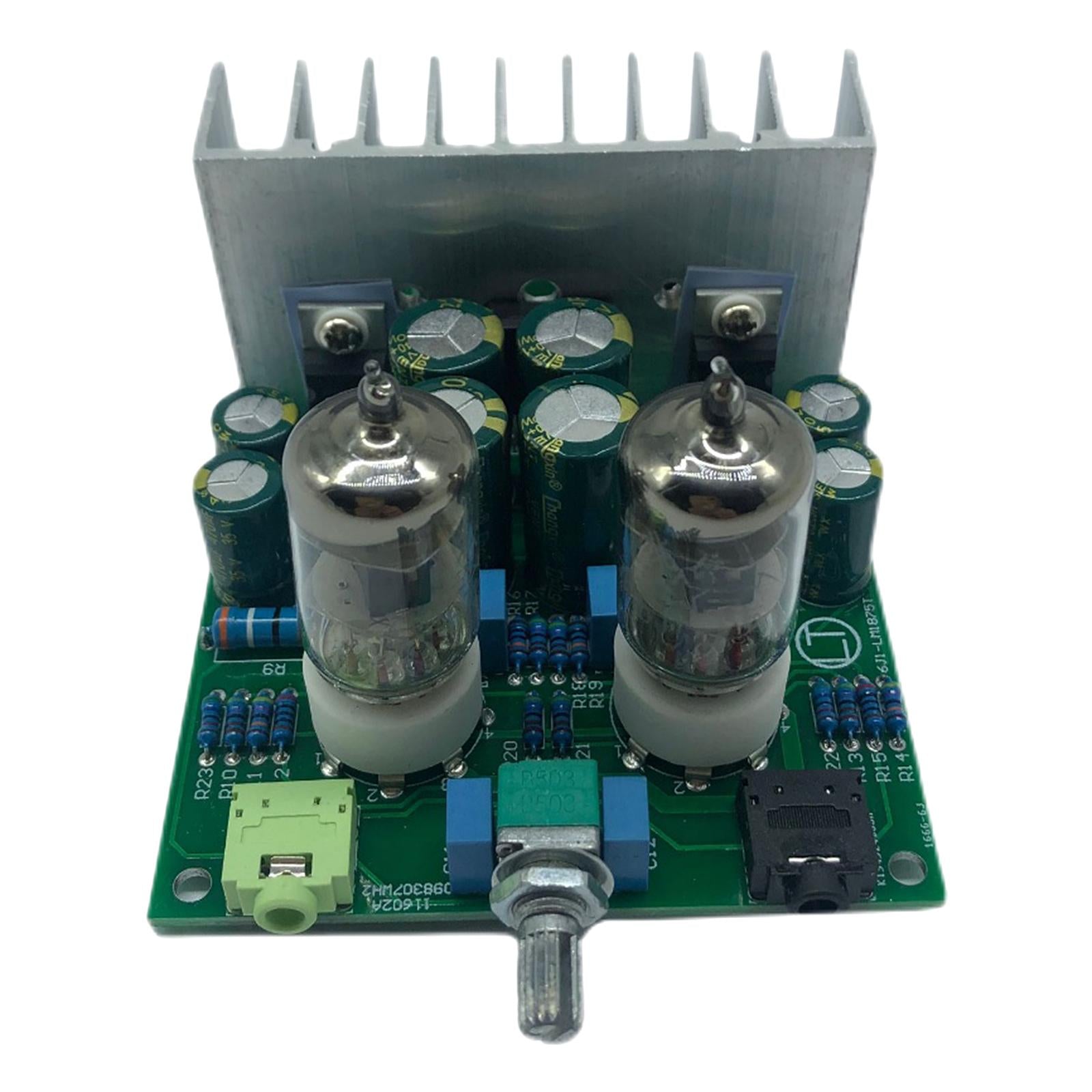

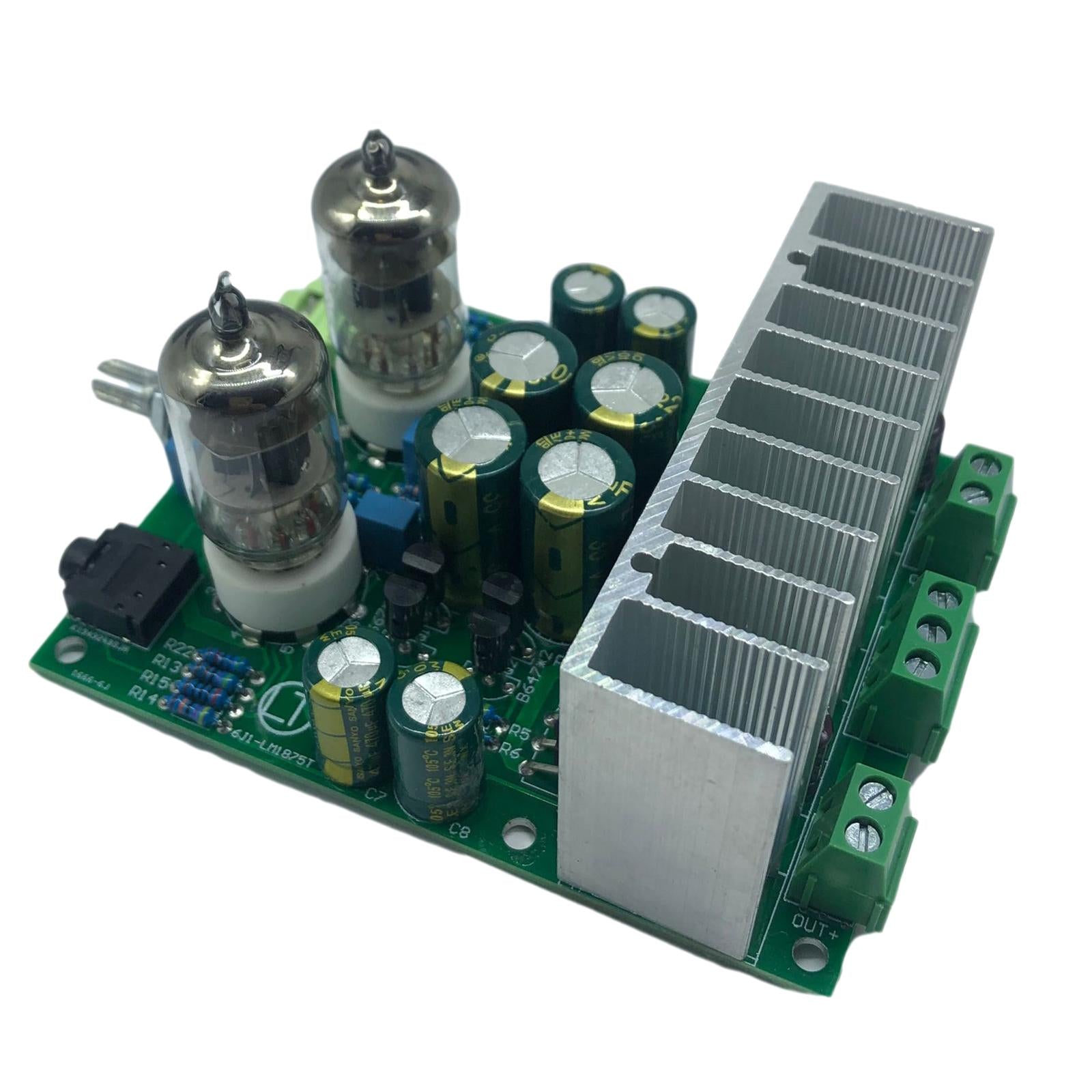

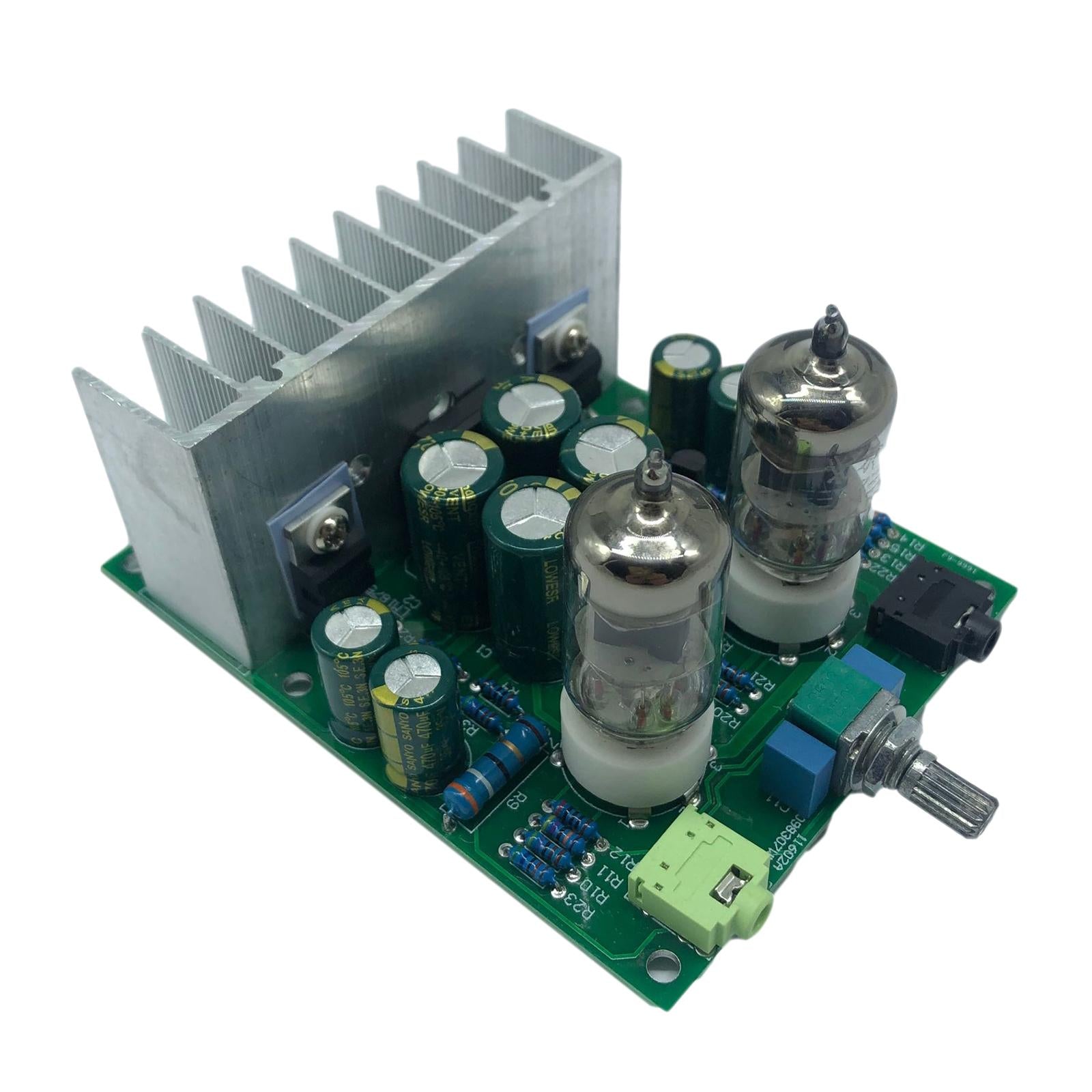

This product uses 6j1 tube to do pre-level lm1875 amplifier, with amp function. After 6j1 tube buffer, can significantly reduce the "digital taste" and "transistor sound", so that the whole sound system to bring a sweet natural "bile", the sound is more sweet, soft. Than the average lm3886, tda7294 better listen.
The pre-level is the use of 6J1 fever tube gall bladder before the class: imitation machine music fax X-10D circuit principle design, to be reasonable to optimize, more stable than the original machine performance, the tube to play increased by 10 percent.
This machine uses dual AC 18v input, do not have to worry about looking for high voltage power supply The board comes with boost to enjoy you in the low power supply to enjoy the charm of high-voltage tube.
Power works: a power supply, tube filament began to heat, then boost from the zero voltage began to boost, and other tube filament hot, the boost is just boost finished, so this is the same with the bile rectification, 4 470UF The capacitor filter is very clean, excellent power supply system will not have the exchange of sound, the filament is DC 12V power supply, the need for two tube filament is in series, the use of DC filament is also to reduce noise.
Before the output level automatically switch to promote the headset or push the rear lm1875 amplifier, that is, after inserting the headset, the amplifier without output, do not insert the headset, is to promote the amplifier output.
Specification:
Power supply voltage: the default dual AC 18v / current 3A, power 60w or more
Amp / front output: magnification about 0.8 times
Lm1875t amplifier output power: typical 20W
Speaker impedance: 4Ω-8Ω
Total Harmonic Distortion:<0.04%
Signal to noise ratio: 105dB
Frequency response: 14Hz-100kHz
Package Includes:
1x Diy Kit
