Ethernet Control Module LAN WAN Network Web Server IP TCP RJ45 Port + 16-Channel Relay Expansion Board for Arduino iOS Raspberry Pi 16 CHs Relay

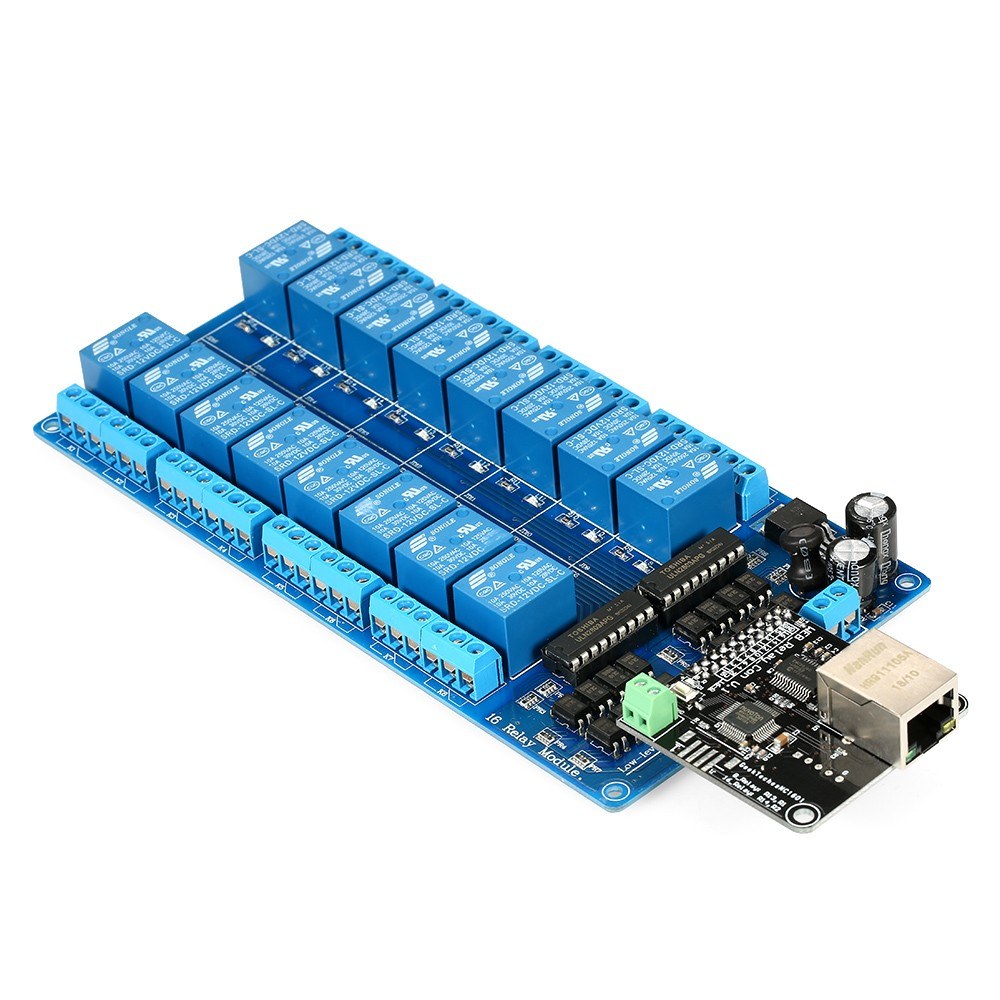

This is an Ethernet controller board based on Imatic system which is compatible with the 16 channels relay. Using the controller module and the 16 channels relay, you can control up to 16 devices remotely on LAN or WAN. The Ethernet controller board has integrated the web server, When you are on your office, you just need to open the page on your computer, pad or smartphone, and then control your devices like lights, air-conditioning or refrigerator on your home. Just look the picture below. You can feel free to enjoy the remote controlling of your other devices with the Ethernet Controller board. The 16 channel relay is included.

• Control switches remotely together with 16 channel relay

• RJ45 interface, via RJ45 telecommunications connection for network control

• Support 16 channels relay which means you can control up to 16 different devices at the same time

• Unique dual TCP connect control, corresponding with above trait, local as TCP server

• Accept client control, when connect to remote server as TCP client

• Supply core module detailed information

• Default IP: 192.168.1.4 prot: 30000

• //192.168.1.4/30000 (You can change the default IP address)

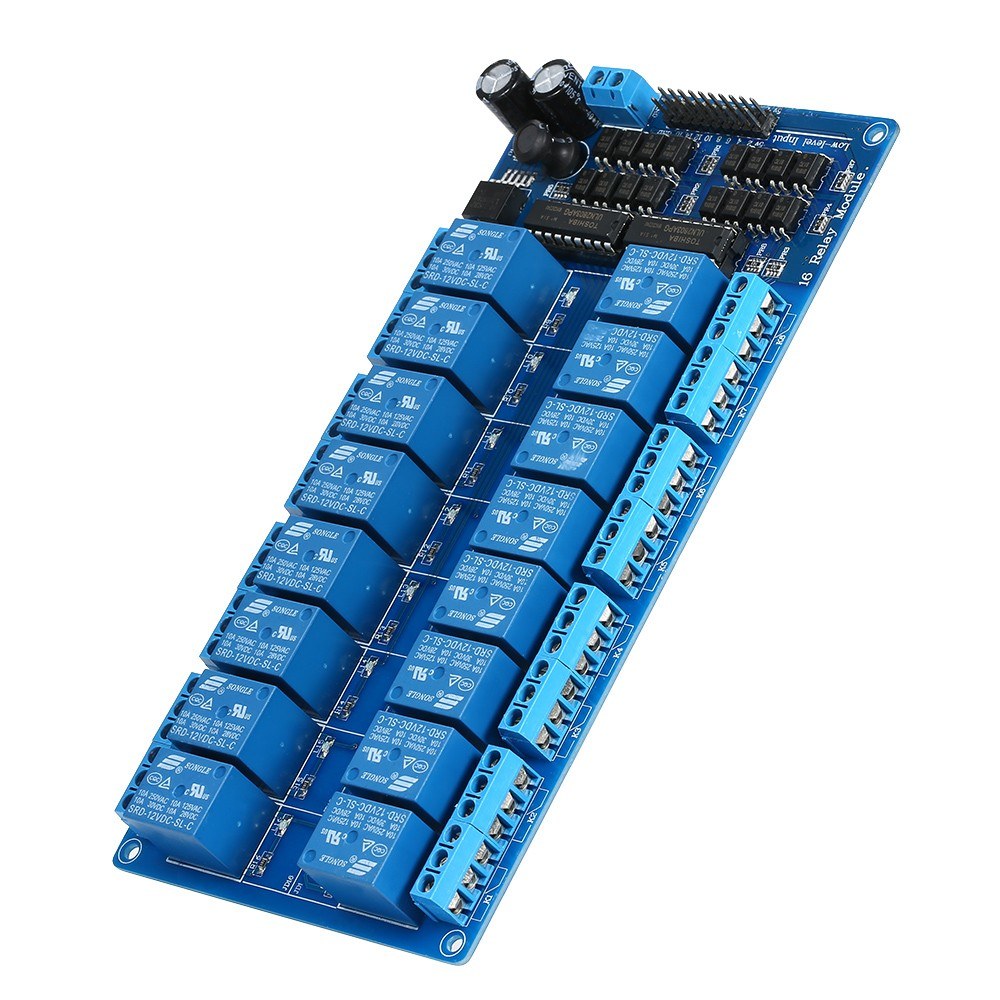

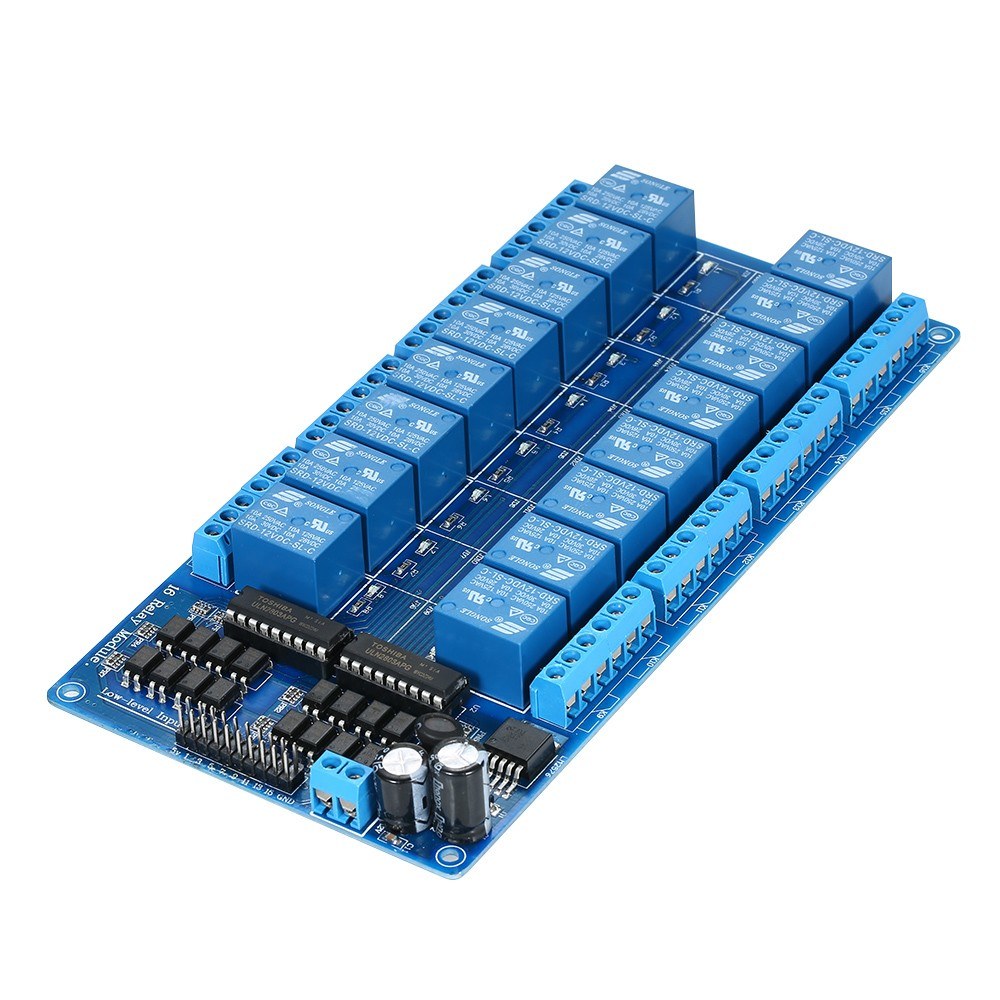

• 16-Channel 12V relay module for Arduino UNO Mega2560 Due R3 Raspberry Pi

HTTP Comment:

• //192.168.1.4/30000/00 : Relay-01 OFF

• //192.168.1.4/30000/01 : Relay-01 ON

• //192.168.1.4/30000/02 : Relay-02 OFF

• //192.168.1.4/30000/03 : Relay-02 ON

• //192.168.1.4/30000/04 : Relay-03 OFF

• //192.168.1.4/30000/05 : Relay-03 ON

• ...

• //192.168.1.4/30000/30 : Relay-16 OFF

• //192.168.1.4/30000/31 : Relay-16 ON

• //192.168.1.4/30000/41 : Enter

• //192.168.1.4/30000/40 : Exit

• //192.168.1.4/30000/42 : Next Page

• //192.168.1.4/30000/43 : Next Page

Specifications:

• Working Voltage: DC 5V

• Channel: 16 Channels

• Ethernet Control Module Size: 50 * 47 * 25mm / 2.0 * 1.9 * 1.0in

• 16 Channel Relay Module Size: 179 * 90 * 19mm / 7.0 * 3.5 * 0.7in

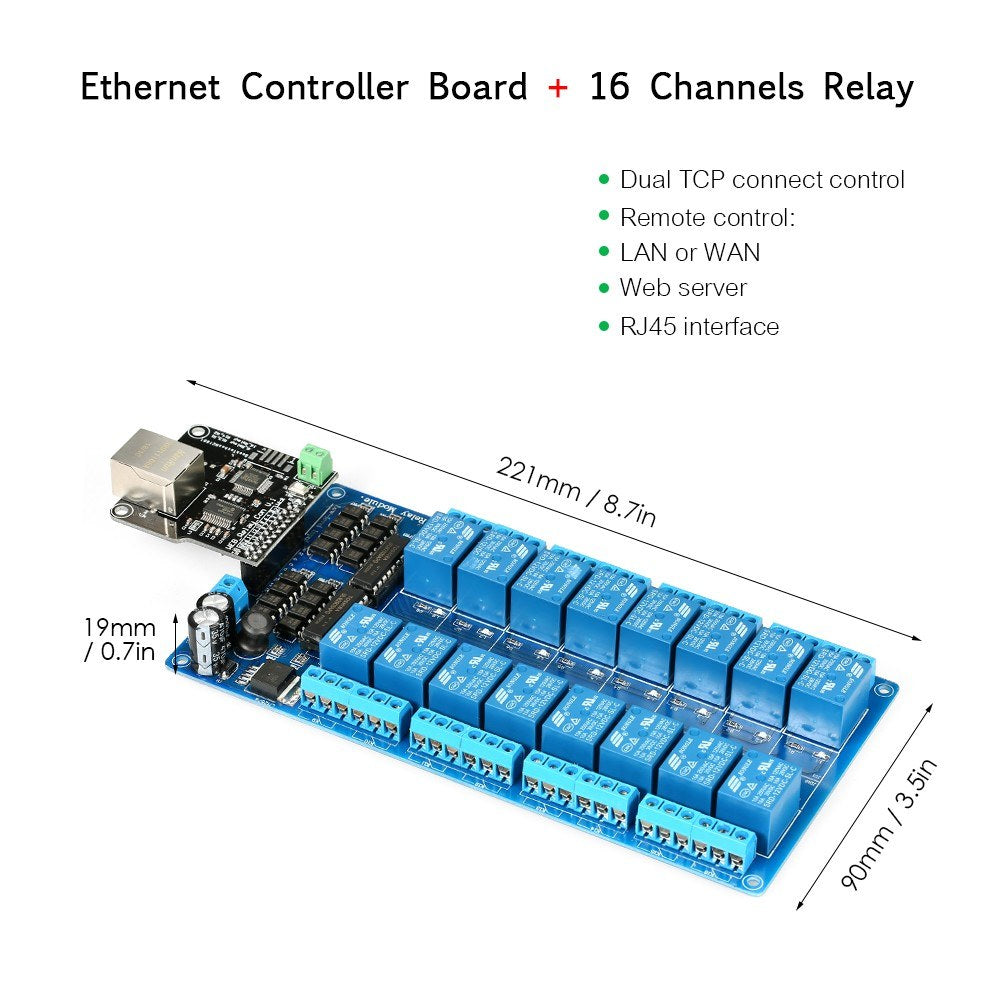

• Assembled Product Size: 221 * 90 * 29mm / 8.7 * 3.5 * 1.1in

• Item Weight: approx 250g / 8.8oz

Package included:

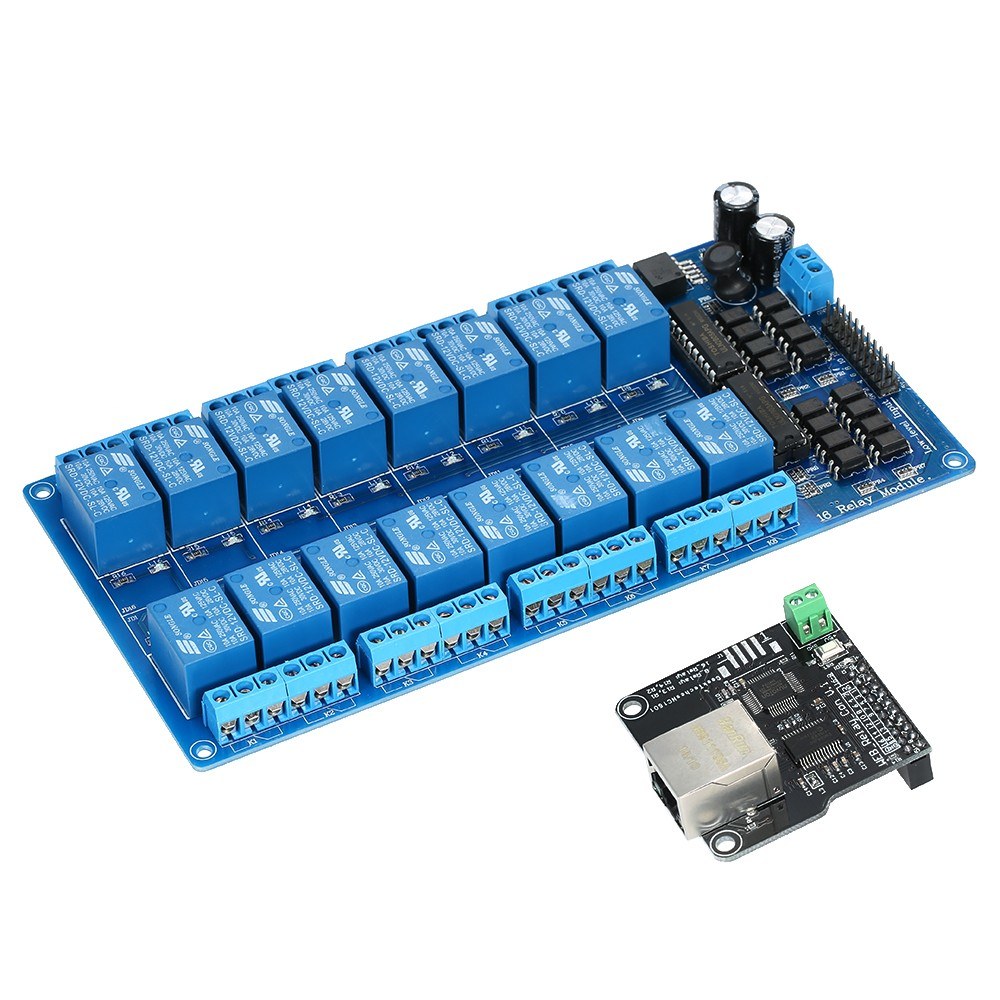

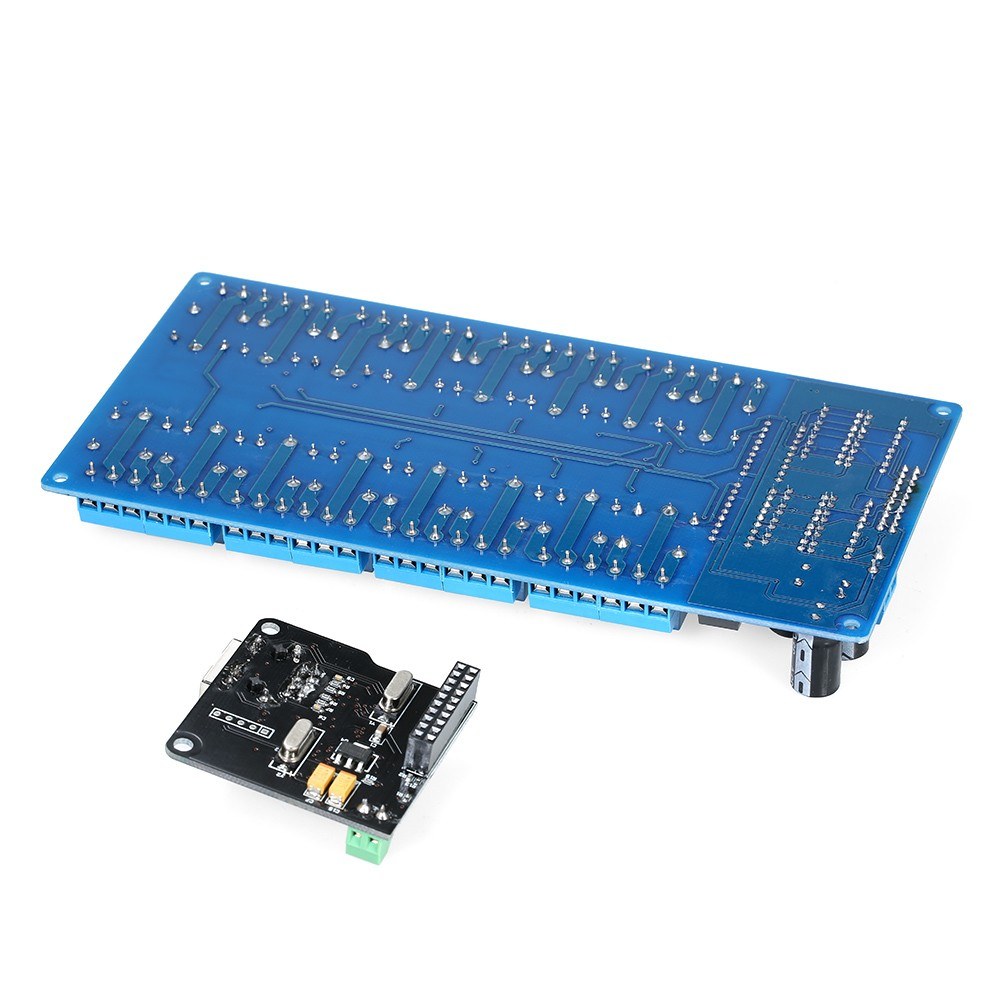

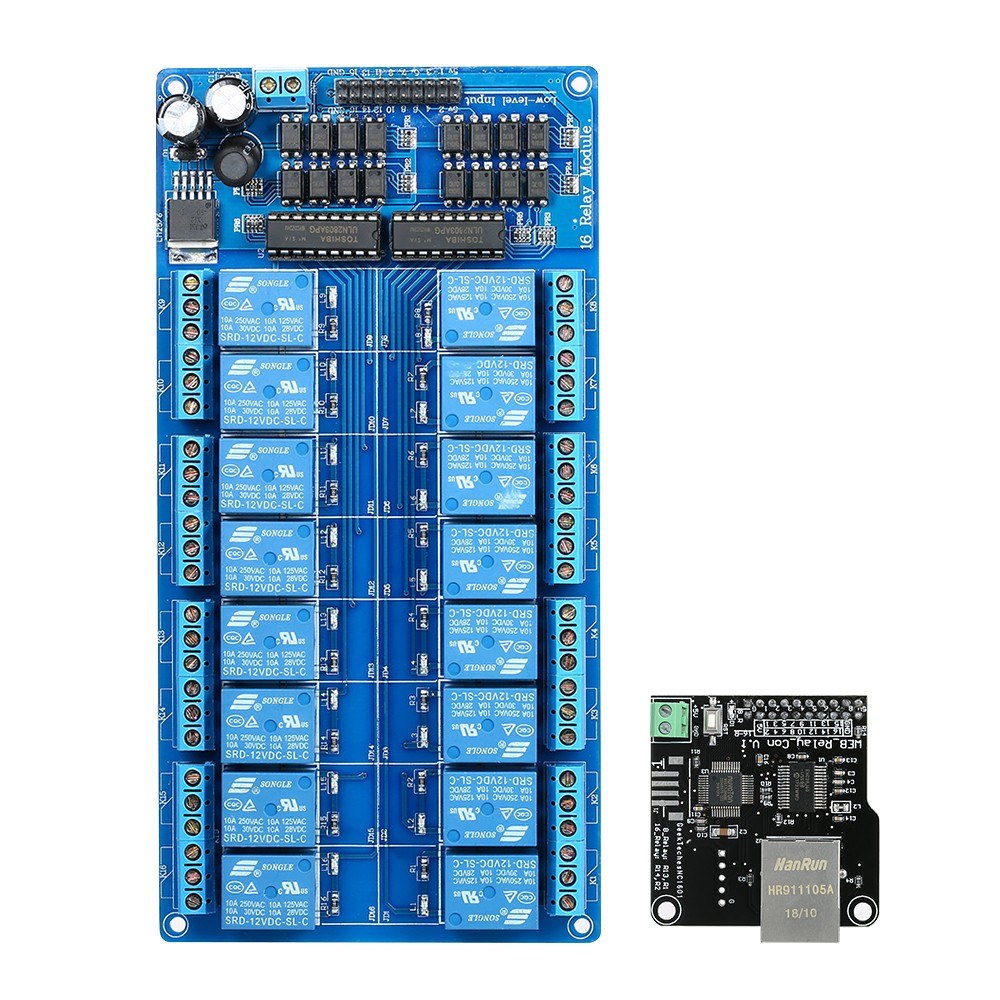

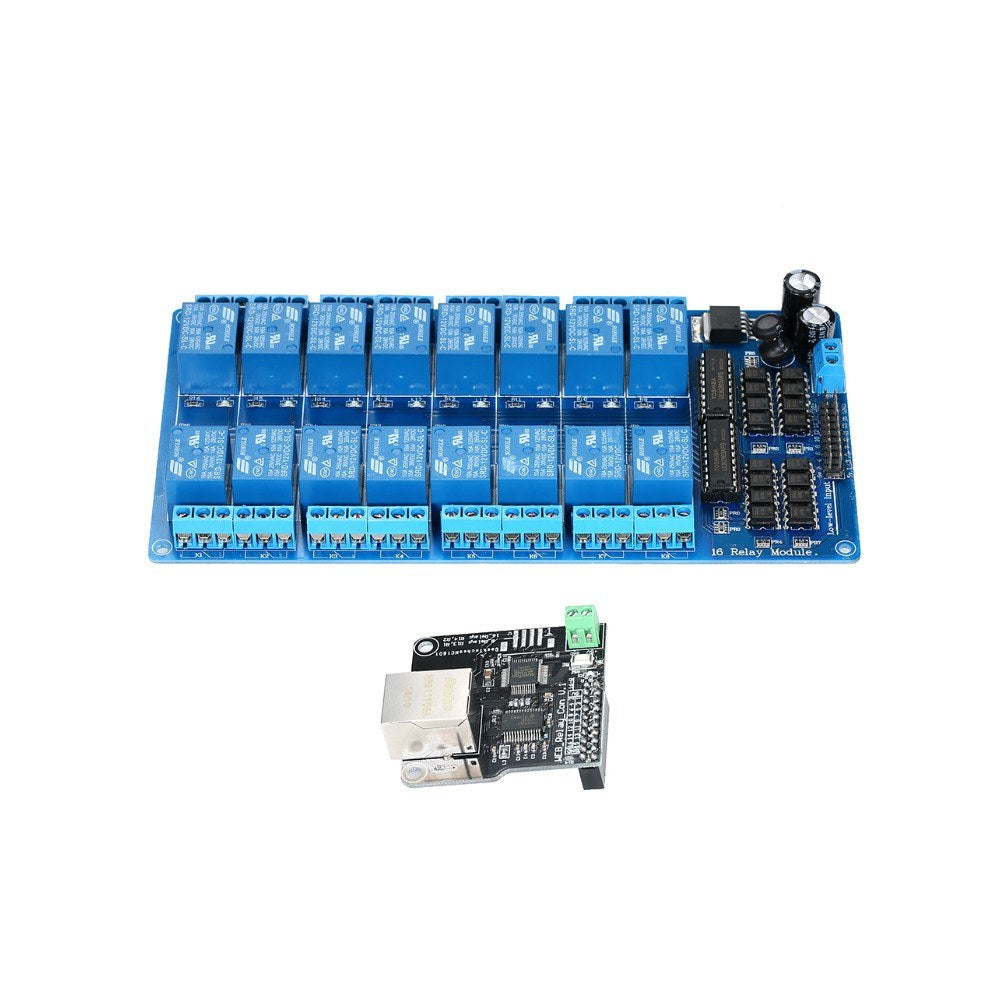

• 1 x Ethernet Control Module

• 1 x 16-Channel 12V Relay Module
