Five-channel stereo microphone mixer with earphone monitoring

Description:

High Quality Five-channel stereo mixer with earphone monitoring
The B895 is a mini five-channel stereo mixer designed for audio and video applications with independent volume control and earphone/line output.

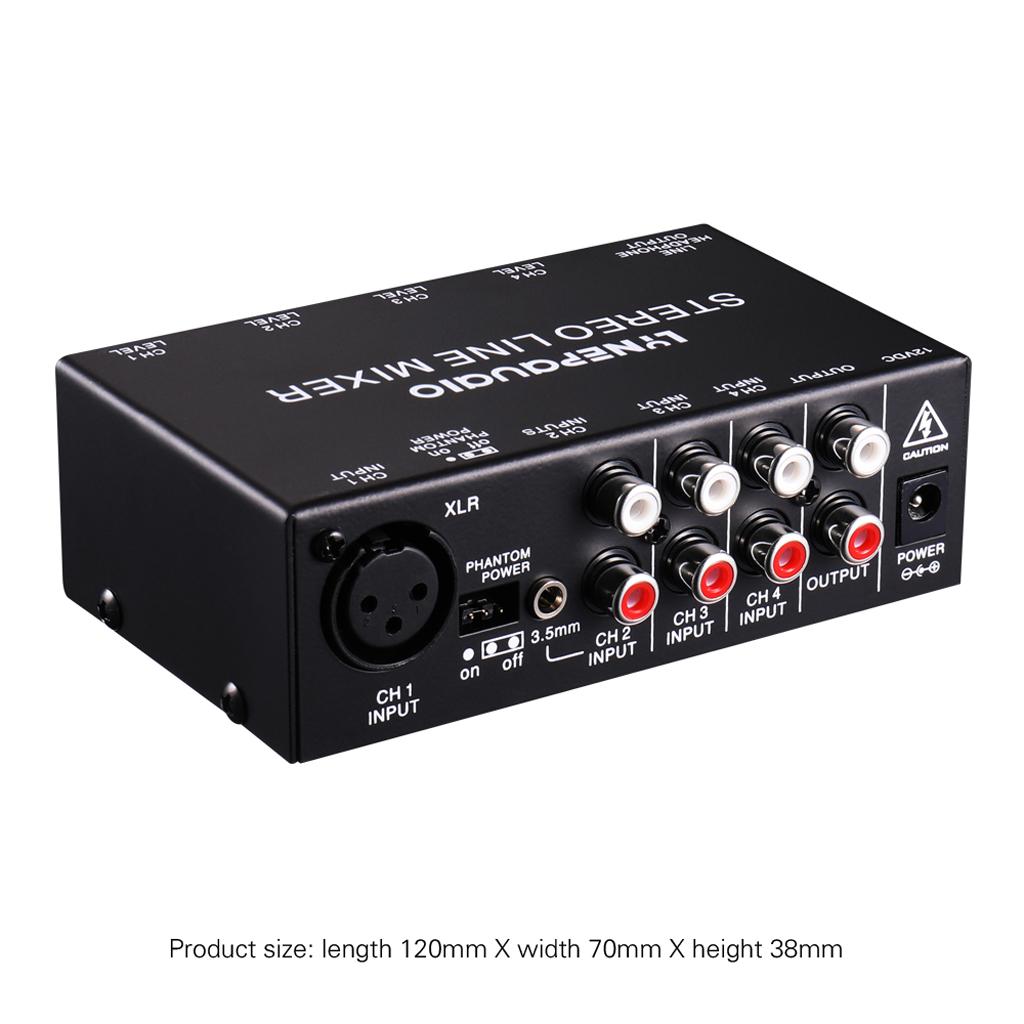

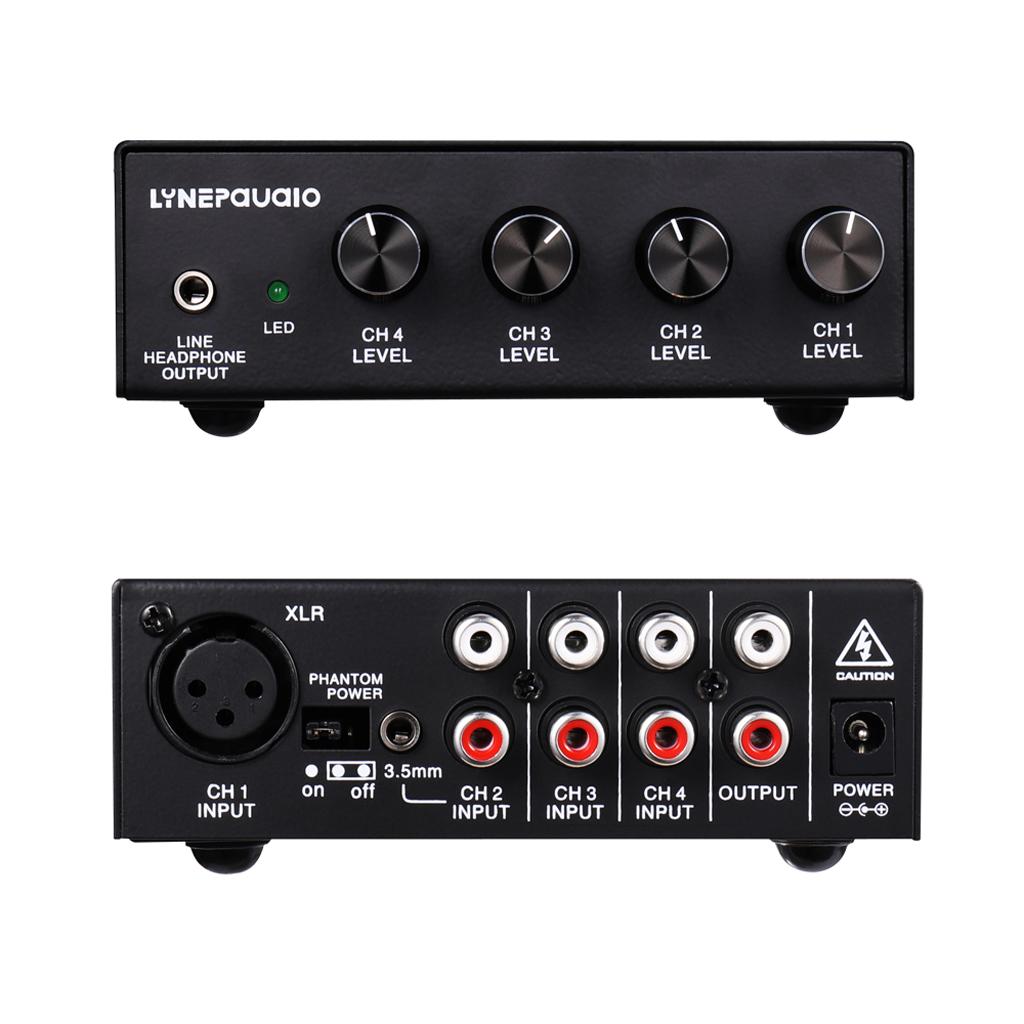

The product has one XLR input, one 1/8 input and three groups stereo RCA inputs.
It has enough gain and output level to connect to the power amplifier with RCA or 1 / 8 Jack. 12VDC adapter power supply.
Channel 1 has a microphone XLR input with a switchable Phantom Power supply.
Channel 2 has 1/8 and RCA input.
Channel 3 and channel 4 have RCA jacks.
The product can also output 1/8 headset output, can drive up to 600 ohms headphone, with a full frequency response.

Specification:

For mixed microphone XLR input and up to three RCA input signals

Input impedance: 10K ohms per jack

CH 1 gain: 32dB XLR jack (maximum gain)

Phantom power: for CH 1 microphone XLR

CH2 gain: 26dB 1 / 8 "and RCA

CH 3 and CH 4 gain: each RCA--26dB

Output: 1/8 "stereo and stereo RCA

Signal-noise ratio: > 90dB

THD：<. 008％

IMD（SMPTE）：<. 008％

Power supply: 12 VDC adapter

Product net weight: 0.36 kg

Product weight after packing: 0.53g

Product size: length 120mm X width 70mm X height 38mm

Packing size: length 200mm X width 180mm X Height 55mm

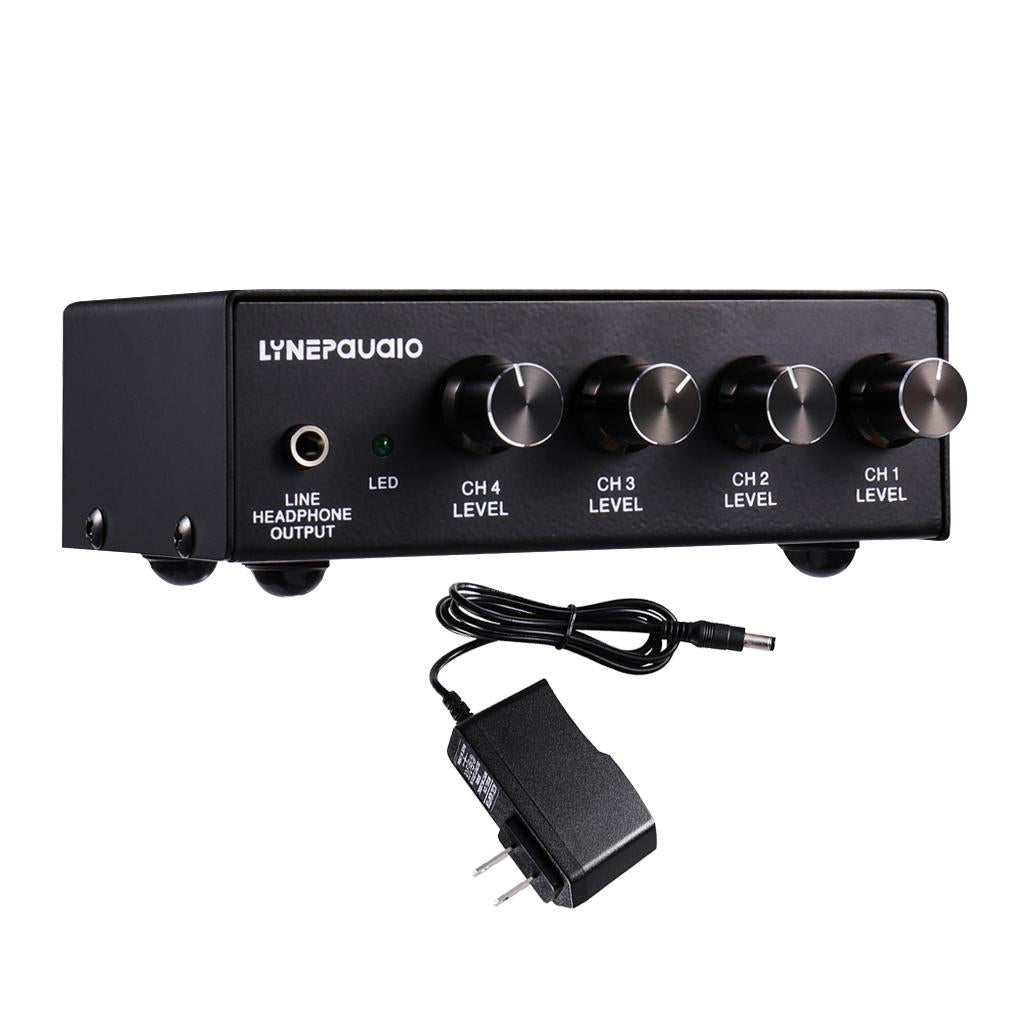

Package Includes:

1X five-channel stereo microphone mixer

1X DC12V Power supply-US standard plug (line length 100CM)
