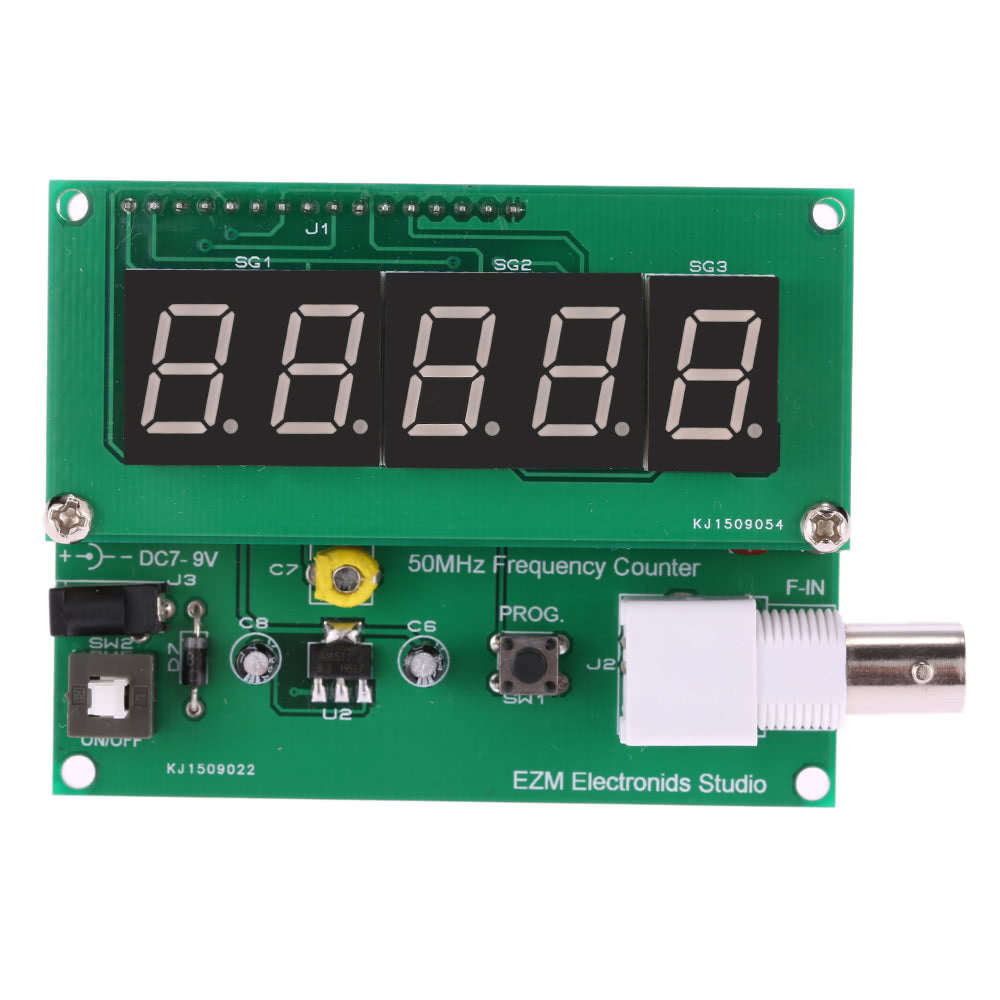

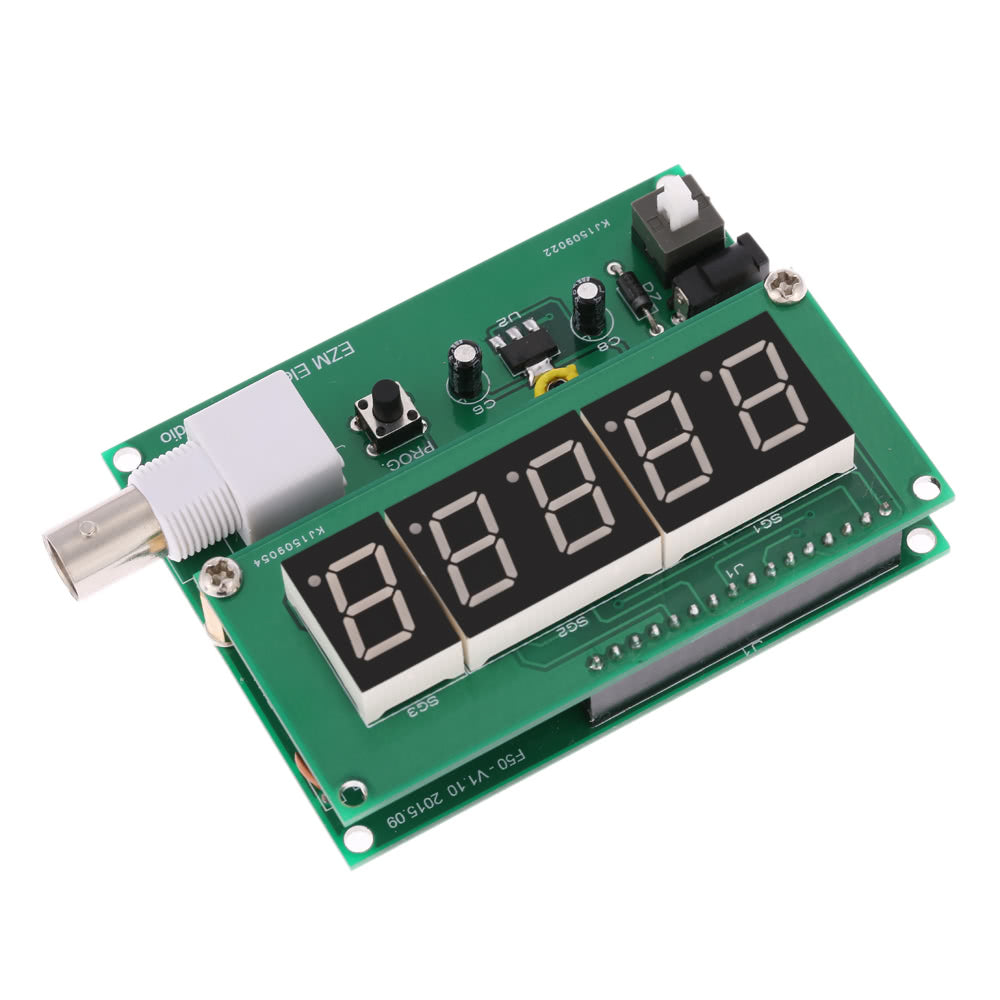

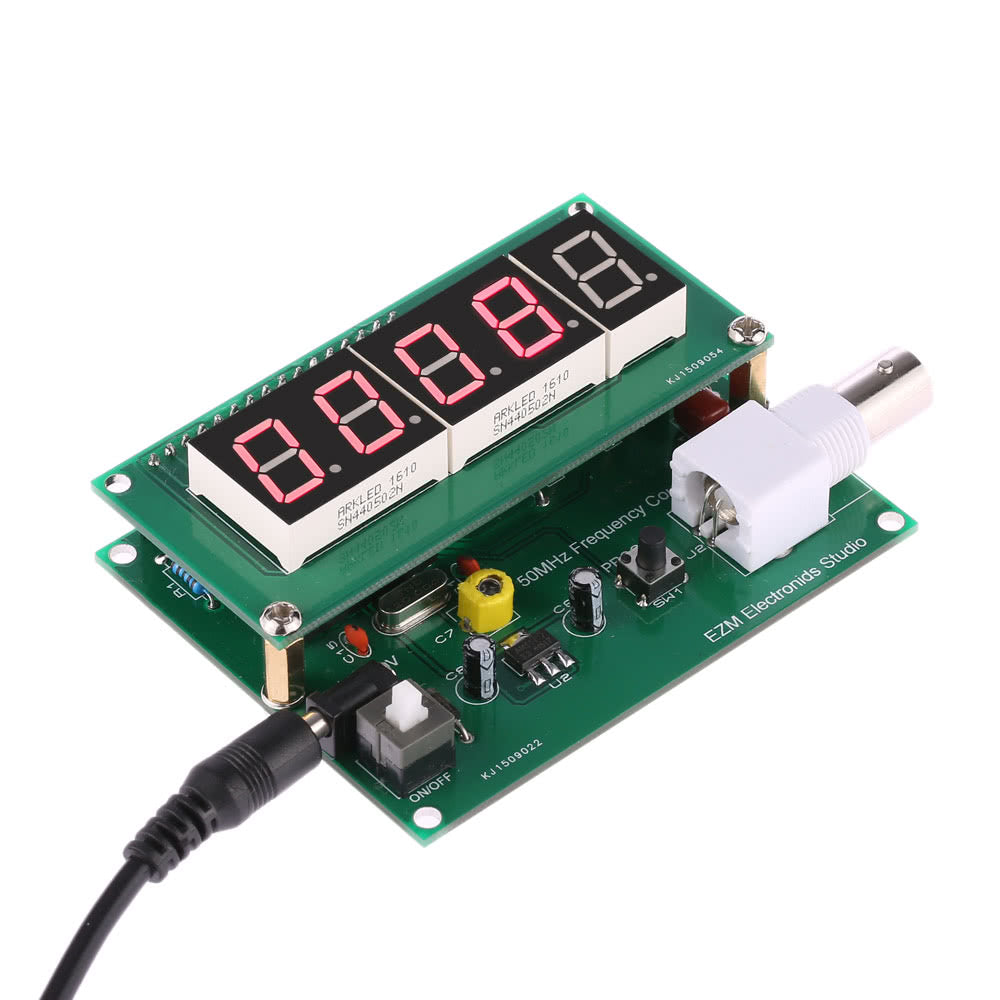

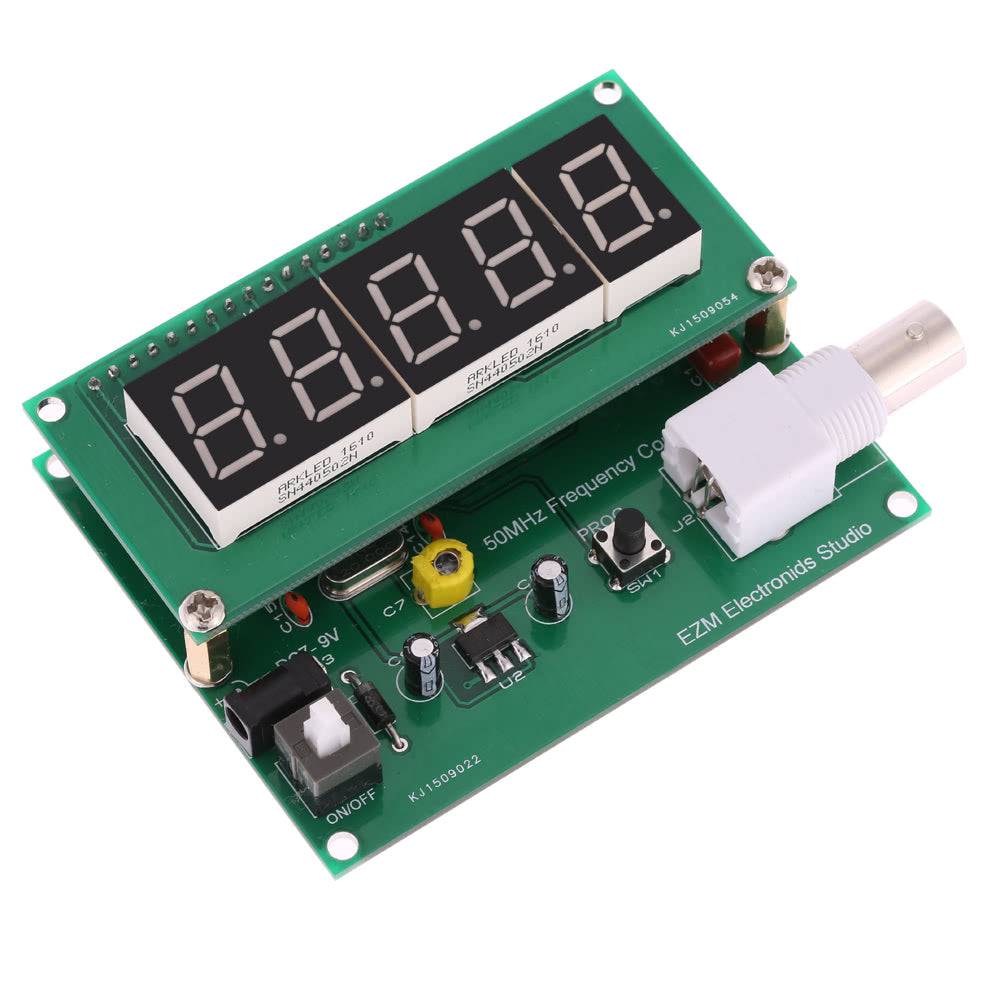

Description
Frequency range: 1Hz-50MHz(in fact, it can work up to 78MHz)
Four or five digits resolution (display for example, x.xxx KHz, x.xxx MHz, or xx.xx MHz)
Automatic range switching with different gate times
Programmable addition or subtraction of the frequency offset
Input impedance: 1.1M, in parallel with about 10pF
Input sensitivity: tipcally less than 20mV RMS from 1Hz-100KHz, rising to 35mV at 20MHz and 75mV at 50MHz (150mV at 78MHz)
Current consumption: 50mA with 7 to 9V input
Optional (configurable) power-saving mode which automatically turns the display off if the frequency didn't change significantly within 15s
Specifications:
Type: Assembled Tester / DIY Kit
Frequency Range: 1Hz-50MHz
Input Impedance: 1.1M, in parallel with about 10pF
Resolution: Max. 1Hz
Current Consumption: 50mA with 7 to 9V Input

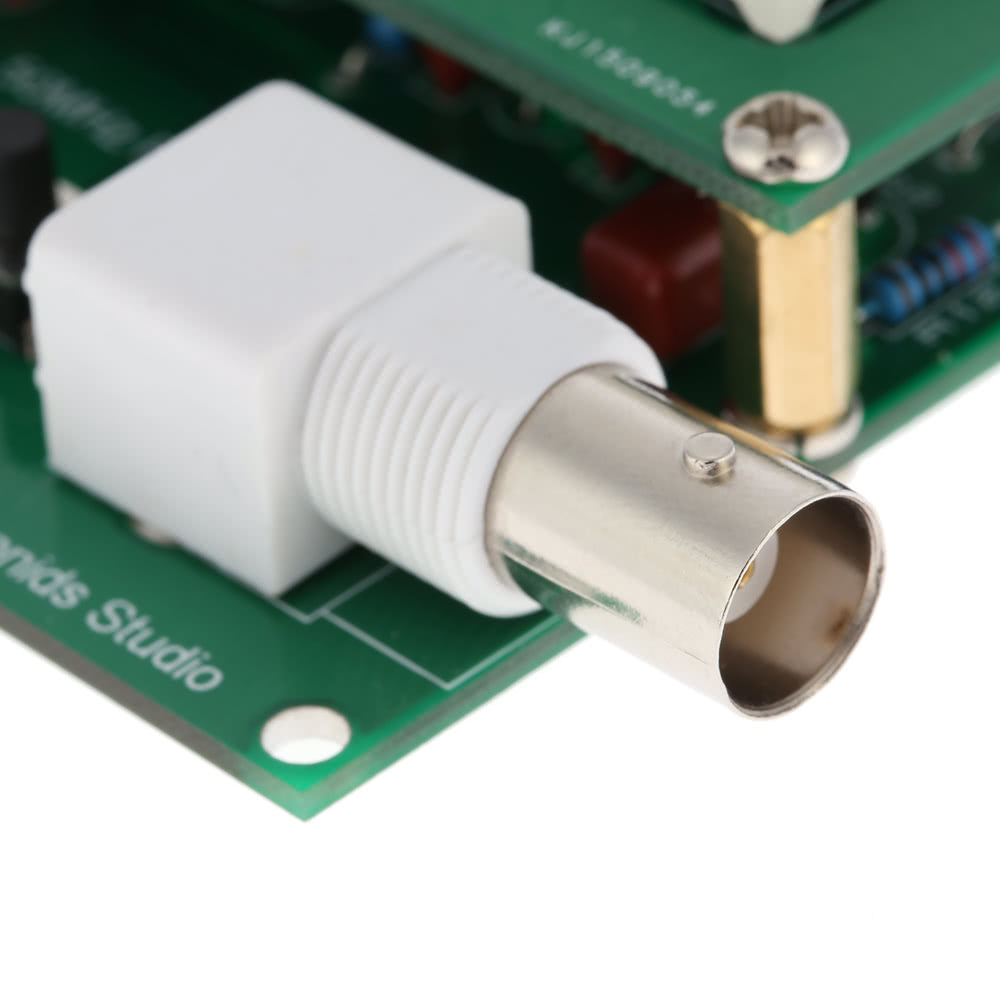

Input Socket: BNC
Display: LED Digital Display

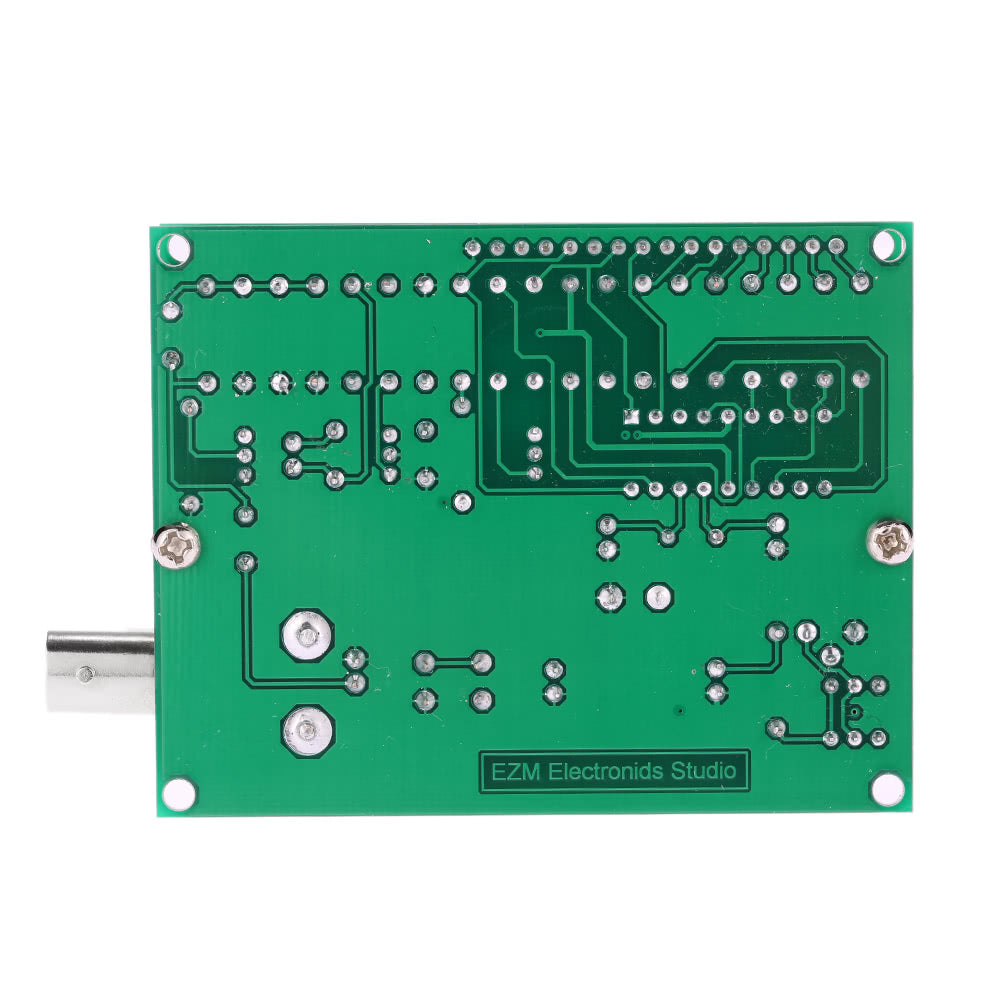

PCB Size: 79 * 62mm / 3.1 * 2.44in

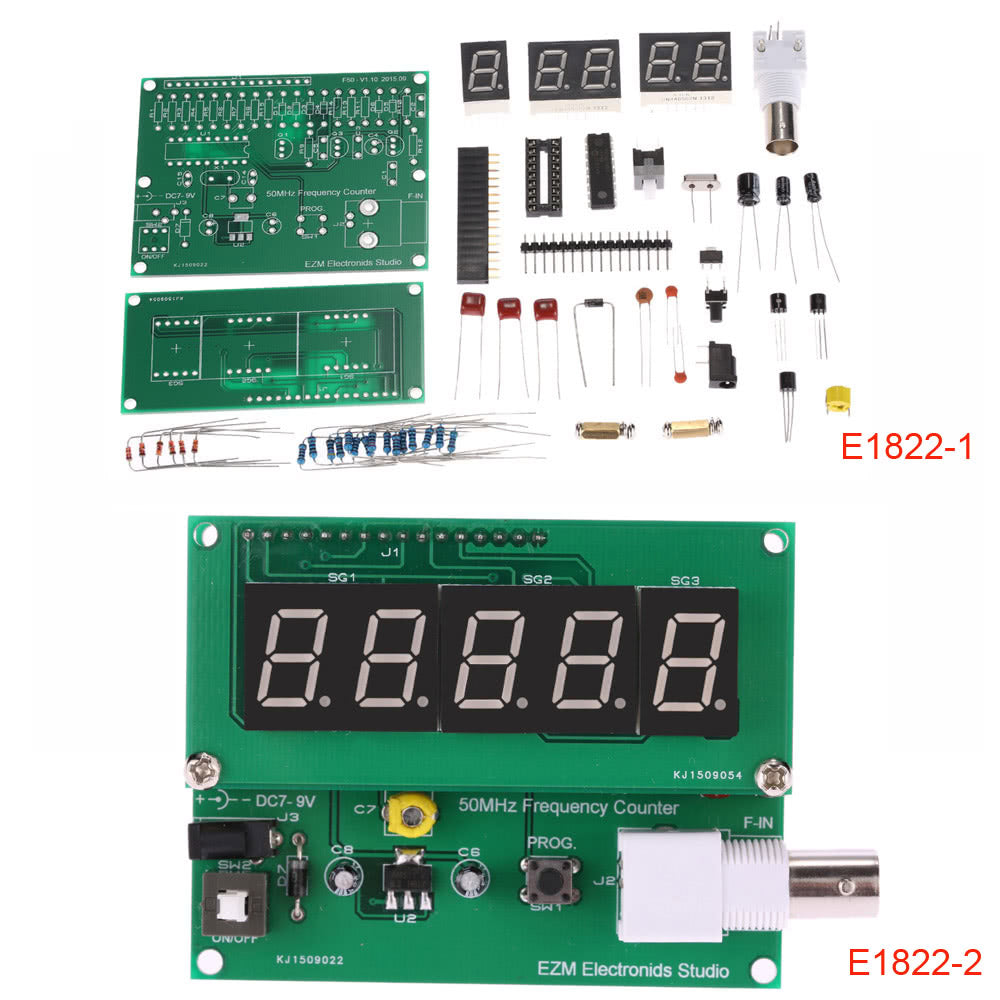

Bill Of Materials
Resistors(0.25W, 1%)
8 R1-R8 1k
2 R9, R15 10k
1 R10 100k
1 R11 1M
1 R12 220
1 R13 56k * According to the different batches of C3355, the resistance may change
1 R14 470
Capacitors:
1 C1 470n Polypropylene
1 C2 100p Ceramic
2 C3 C5 100n Polypropylene
1 C4 47u Electrolytic
2 C6, C8 10u Electrolytic
1 C7 6-40p Variable
2 C14, C15 22p Ceramic
Integrated Circuits
1 U1 PIC16F628A (Programmed) + 18pin IC socket
1 U2 LM1117-5V SMD
Transistors:
1 Q1 C945
1 Q2 J310
1 Q3 C3355
Diodes:
6 D1-D6 1N4148
1 D7 1N5819
Miscellaneous:
1 J1 16Pin SIL Socket & header
1 J2 BNC Socket

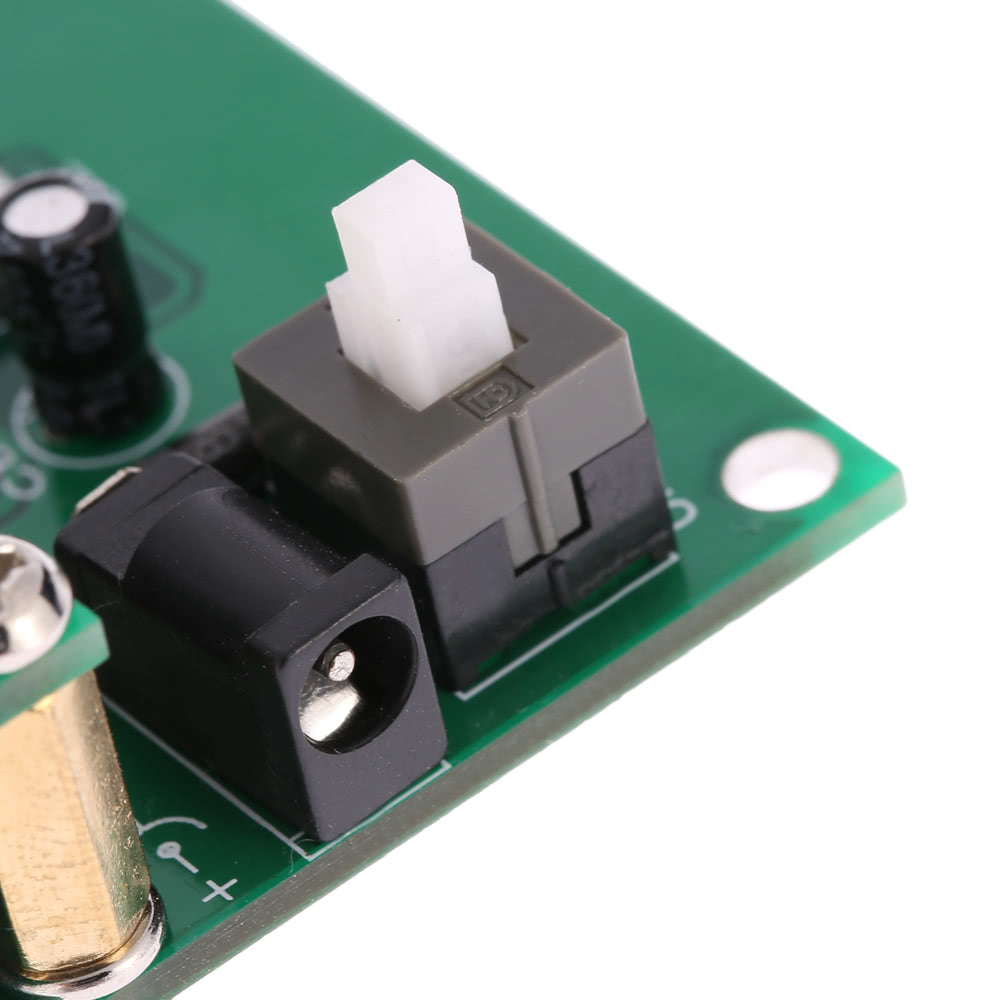

1 J3 DC_CZ_ZM DC adapter socket
1 SW1 AN_SW Push button switch
1 SW2 SW2X2 Push button switch
1 X1 Crystal 20MHz
2 SG1-SG2 Red 2digit common cathode 7-segment display
1 SG3 Red 1digit common cathode 7-segment display
1 Main PCB
1 Display PCB
2 Copper Pillar +Screw +Spring Washer
Assembly Diagram:
https://www.dropbox.com/s/0yjnpjtfp7htck2/Aassembly%20diagram%20for%20E1822.pdf?dl=0
Bill of Materials:
https://www.dropbox.com/s/o5g7abvwuk7fswp/Bill%20of%20materials%20for%20E1822.pdf?dl=0
User Manual:
https://www.dropbox.com/s/nrpzdw4nzp5n5cx/The%20main%20features%20of%20E1822.pdf?dl=0
