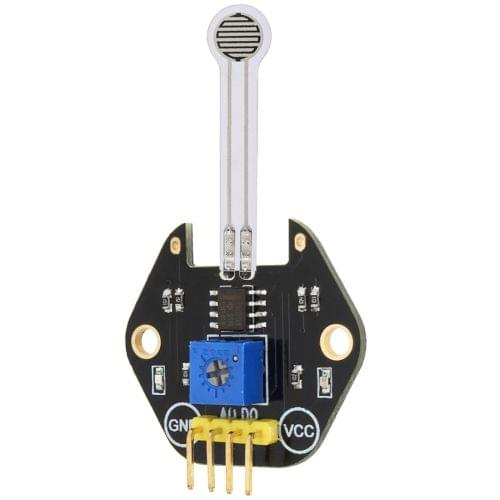

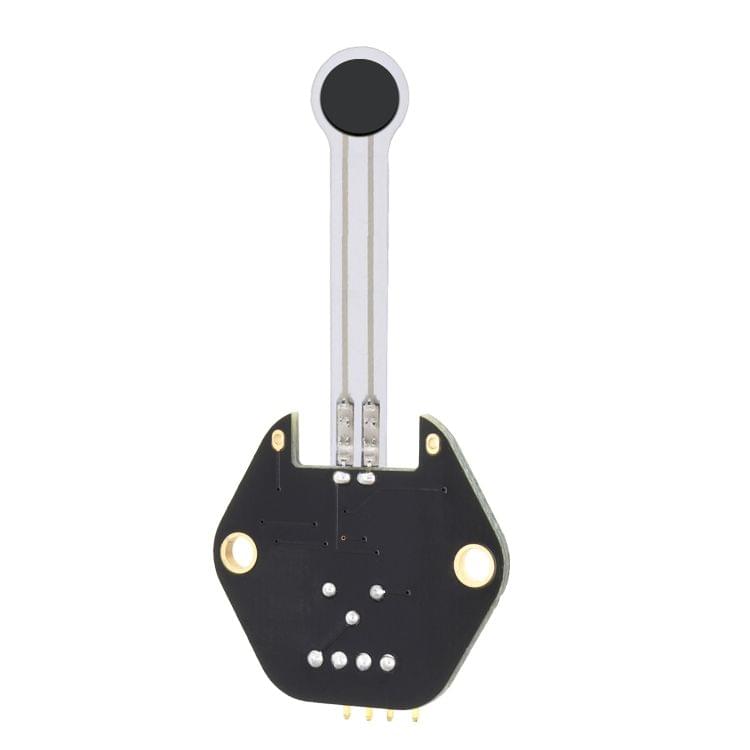

LandaTianrui LDTR-RM037 10kg Thin-film Pressure Sensor Module for Arduino / Raspberry Pi (Black)

Description
This sensor adopts the new flexible nano pressure sensitive material with ultra thin film pad. It has the functions of water-proof and pressure detection. When the sensor detects the outside pressure, the resistance of sensor will make a change. So using the circuit, it can convert the pressure signal that senses pressure change into the corresponding electric signal output. In this way, we can get the conditions of pressure changes by detecting the signal changes.

Feature
1.Output :1A 0 analog voltage output. 2 DO digital switching output (0 and 1).
2.Sensitivity is adjustable.
3.Suitable for Detecting the pressure.
4.Output signal can connect IO port of SCM.

Parameters
1.Working Voltage: DC 3.3V - 5V.
2.Range: 0-10kg.
3.Thickness: less than 0.25mm.
4.Response Point: less than 20g.
5.Repeatability: less than positive and negative 5.8 percent(50 percent load).
6.Accuracy: positive and negative 2.5 percent (85 percent range interval).
7.Durability: more than 100 thousand times.
8.Initial Resistance: more than 100M ohm (no load).
9.Response Time: less than 1m / s.
10.Recovery Time: less than 15m / s.
11.Working Temperature: -20 degree celsius to 60 degree celsius.

Packing List

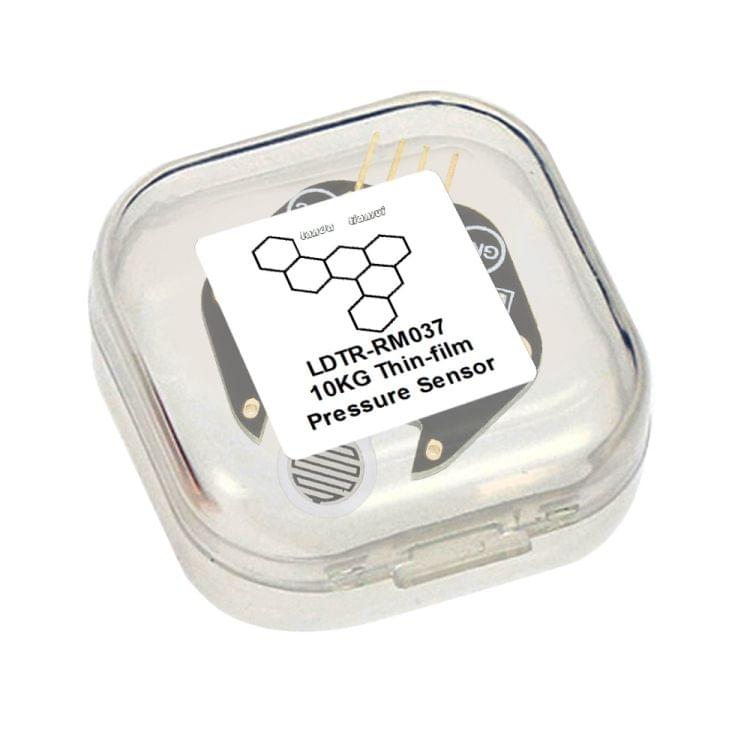

10kg Thin-film Pressure Sensor Module x 1
Plastic Box x 1
