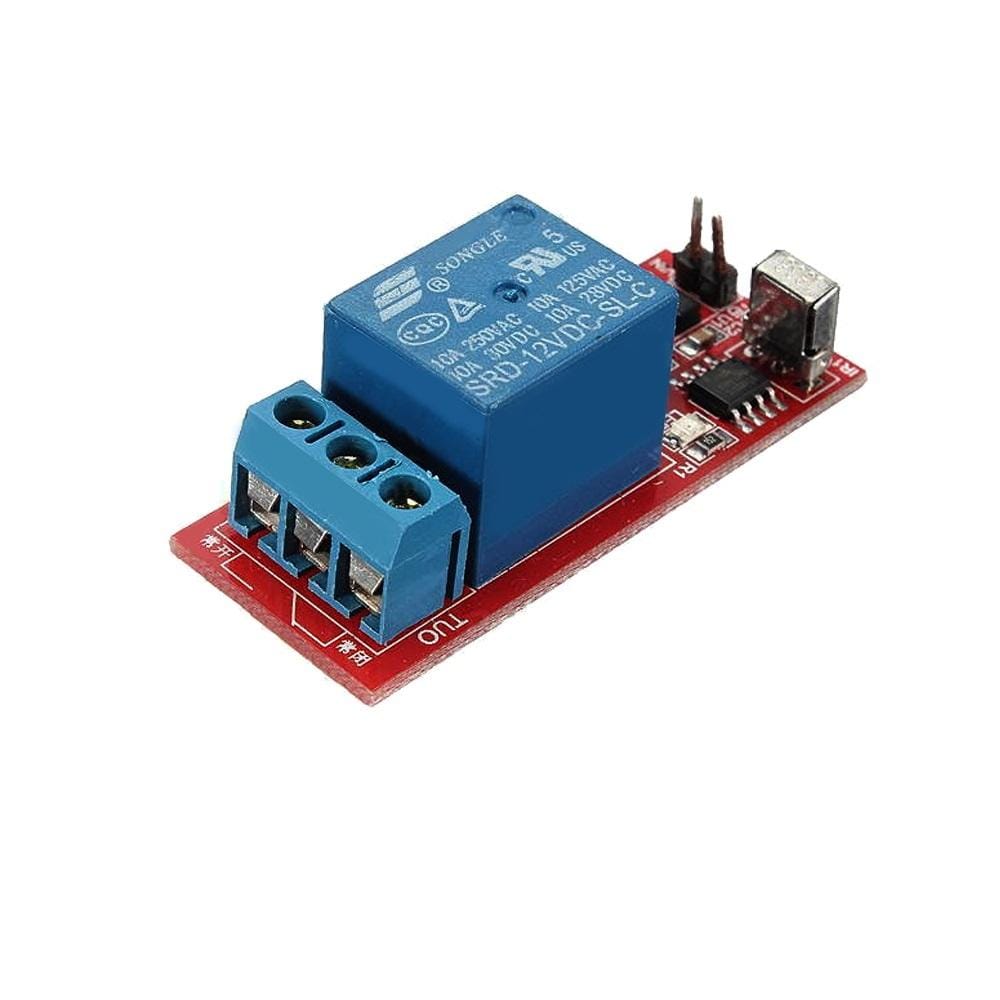

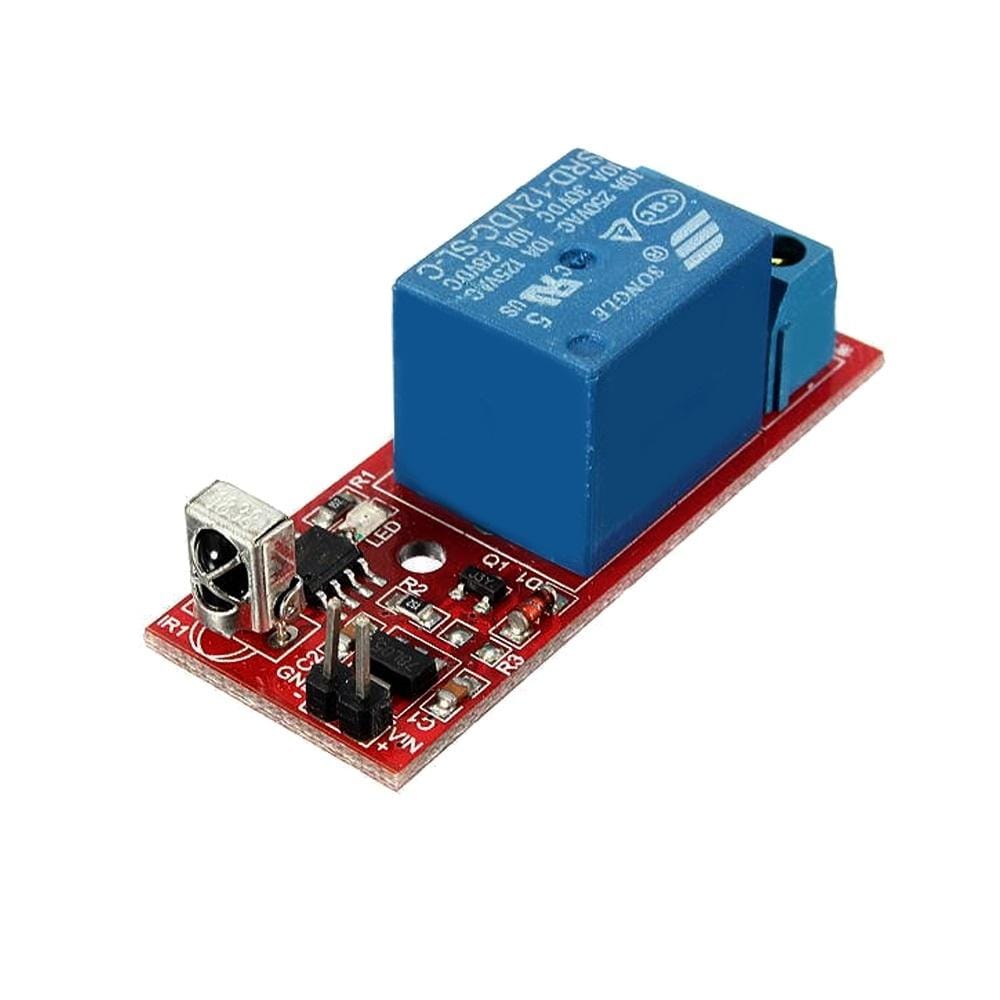

LDTR-WG0150 12V IR Control Receiver Board 1 Channel Relay 2 Key Remote Control (Red)

1. 1 channel Self-locking IR Receiver Controller: Operating voltage: DC 12V
- Quiescent current: =< 1mA
- Pick-up current: =< 80mA
- Remote control distance: MAX 8 meters
- Work status: Self-locking
- Size: 50 x 20 x 20(MM)

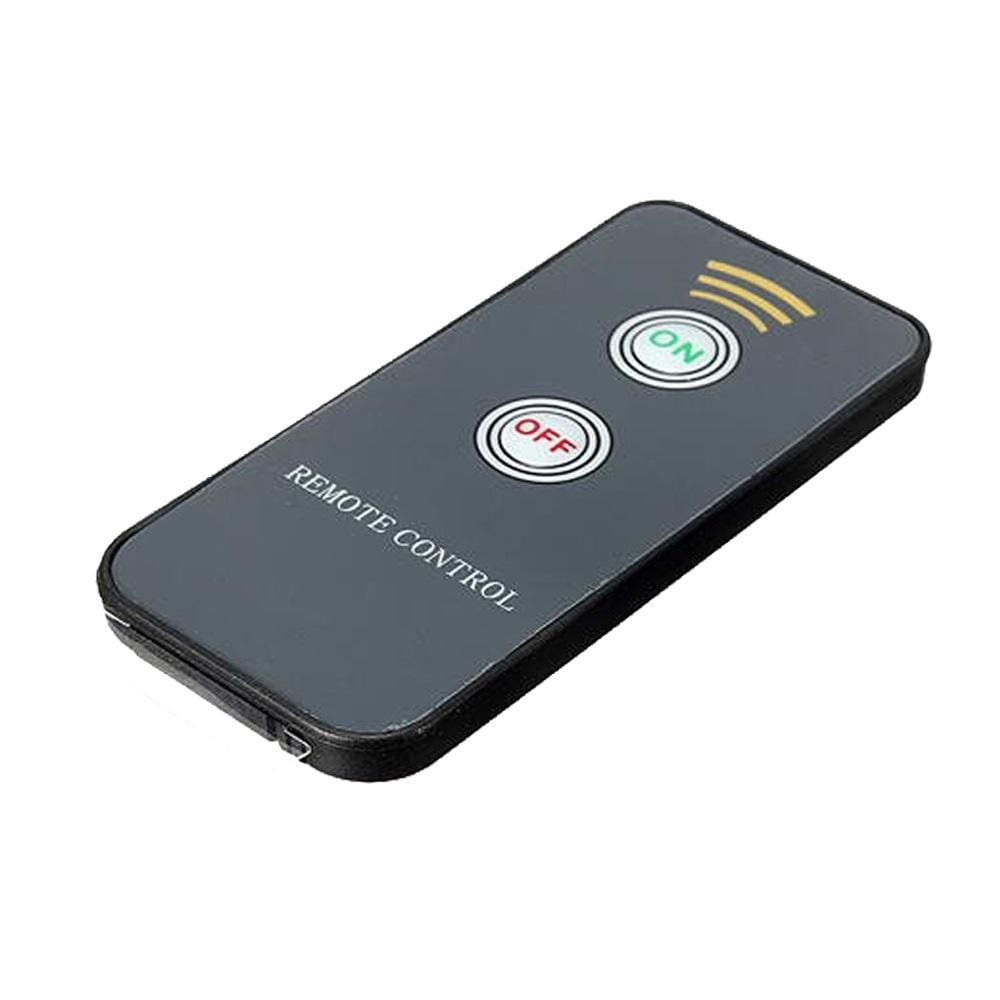

2. Infrared Remote Controller:
- Using UPD6122 chip, NEC encoding format
- User code: 0x00FF
- Key value: "ON" Button is 40; "OFF" Button is 19
- Battery powered: 1 x CR2025
- Size: 86 x 40 x 6(MM)
3. The receiver board must be equipped with a suite of remote control, it cann't recognize other remote controls.The load capacity of this relay is 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A.

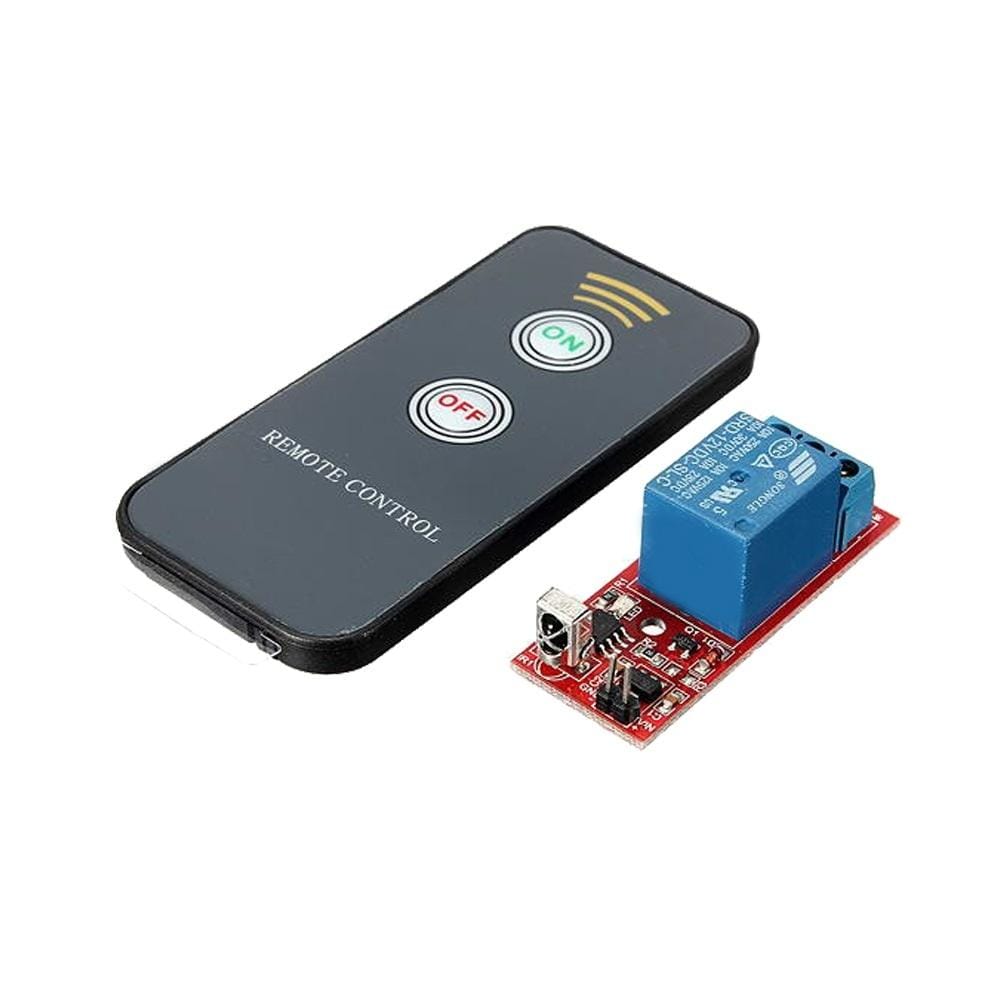

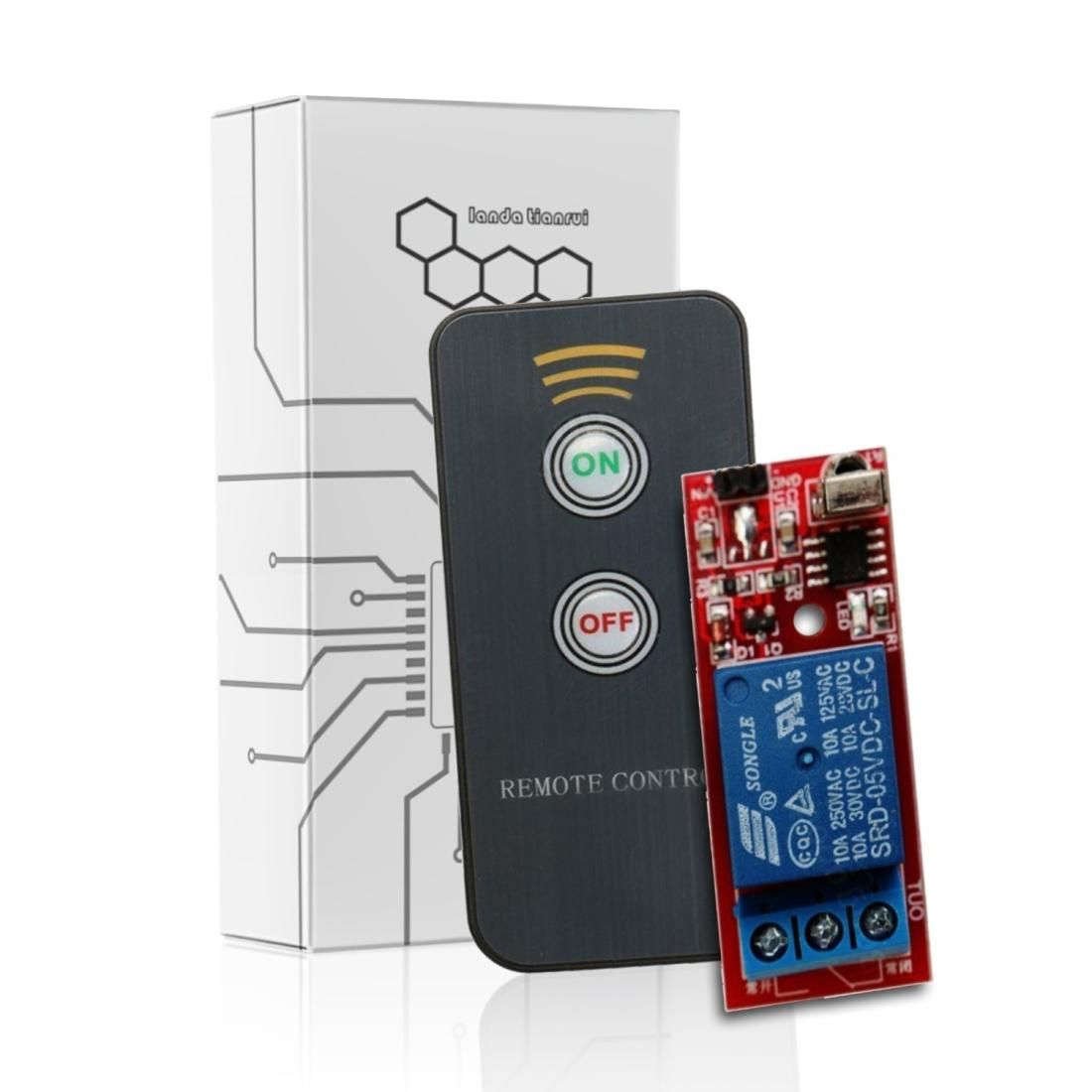

4. Package included:1 x Receiver Board?1 x Remote Controller
