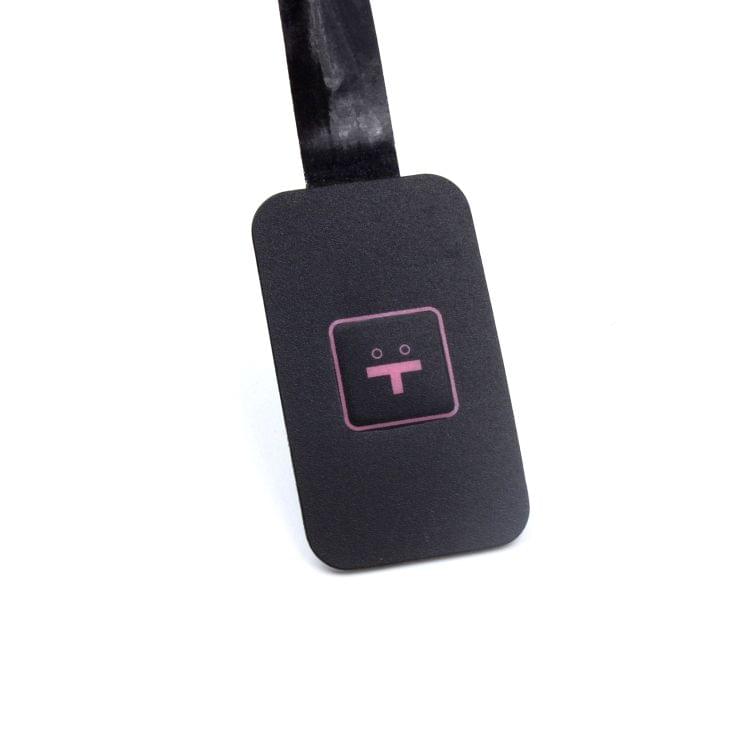

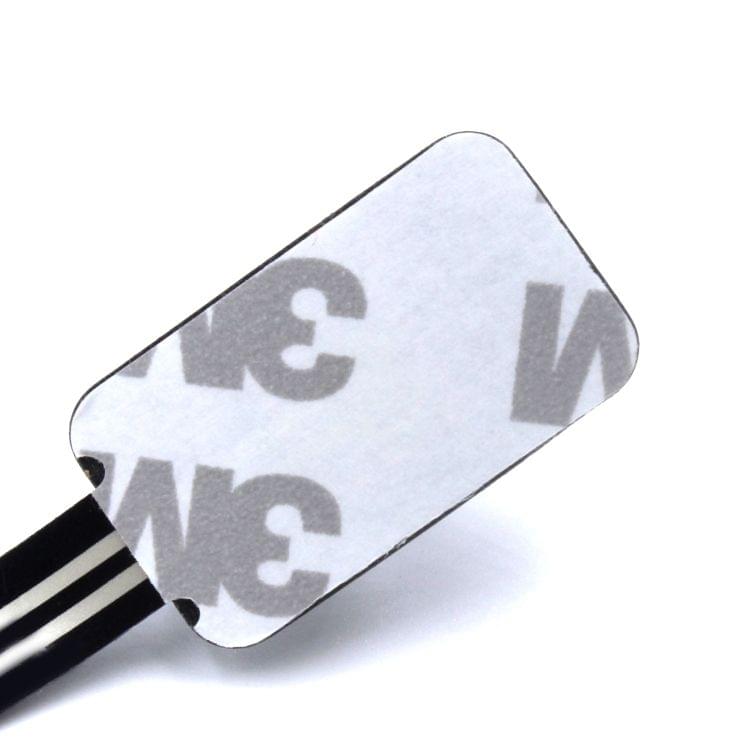

- LDTR-WG0159 One Key Matrix Membrane Switch with Connection PCB Board Connections Wire LDTR-WG0159 One Key Matrix Membrane Switch with Connection PCB Board Connections Wire
- Description
- Reviews
Features
1. One key matrix membrane switch, with connect PCB connections wire, panel size: 35 * 20MM
2. Circuit level: 3.5VDC, 100mA, 1W
3. Standard sheet resistance: <1ohm
4. Contact resistance: <1ohm
5. Insulation resistance: 150Mohm 100V
6. Dielectric withstanding voltage: 250V Rms (50-60Hz 1min)
7. Contact Bounce: =< 3ms
8. Storage temperature: +15 degree C ~ +35 degree C
9. Storage humidity: 70% ~ 90%
10. Test temperature: -10 ~ +70 32H
11. Test Humidity: 90% 32H
12. Vibration: 20Gs msx, (10-200Hz, MIL-STD-202, M204 Condition)
13. Line thickness: =< 0.13mm
14. Life: 500,000 times or more
Specification
1. Brand: landa tianrun
2. Model: LDTR-WG
3. Quantity: 1Piece
4. Dimensions (115 cm x 2 cm x 0.35 cm), Weight (8g)

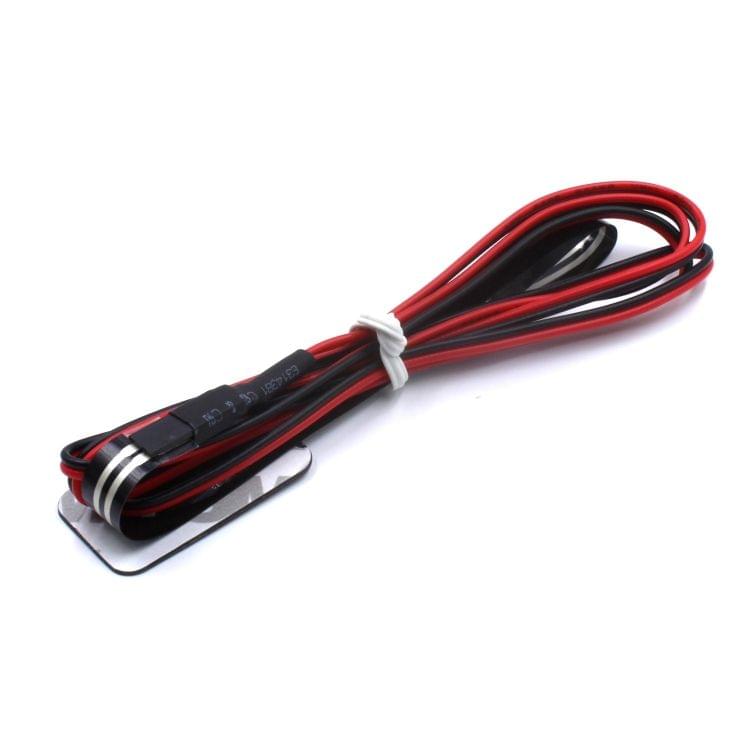

5. Packing List: 1 x Matrix Membrane Switch (connection line length: 90cm)
