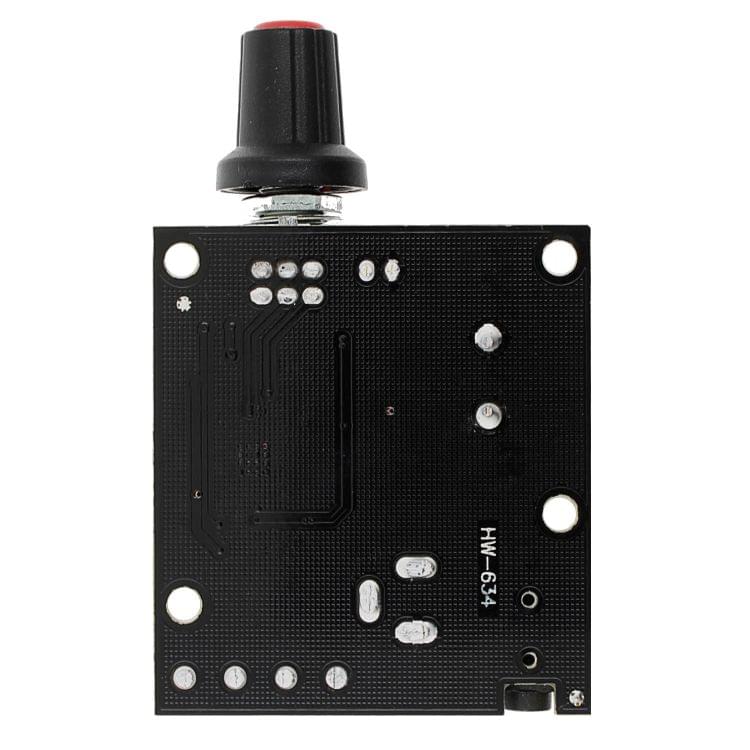

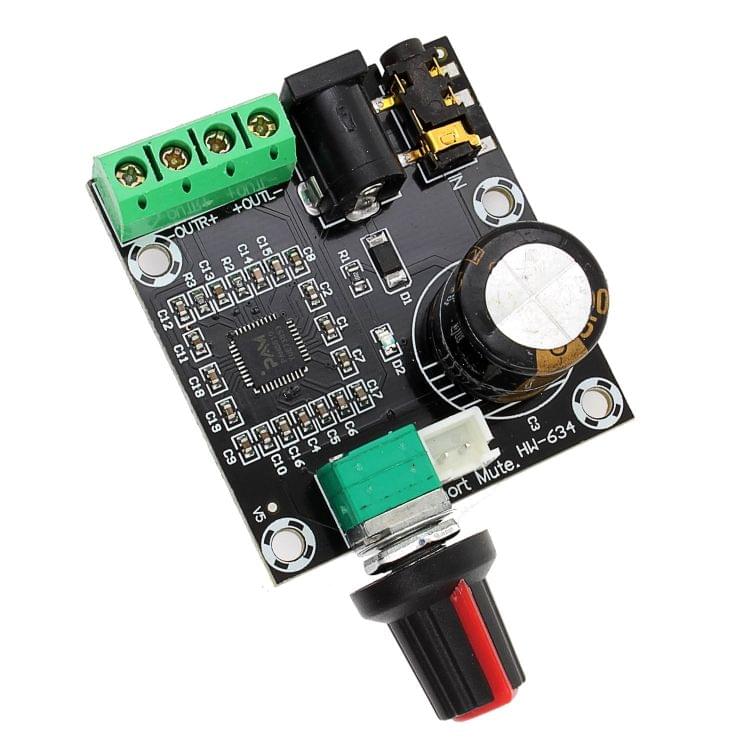

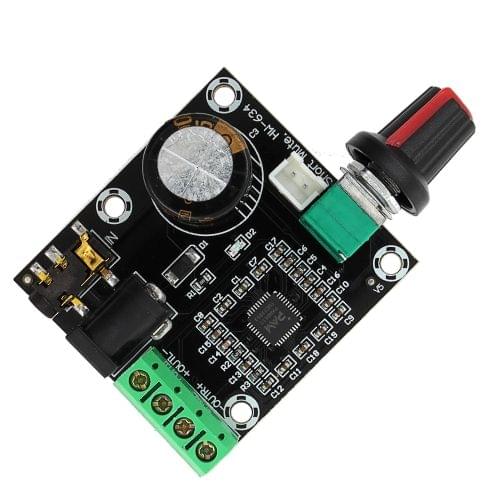

LDTR-WG0198 PAM8610 15W+15W 2-CH Stereo Class D Digital Amplifier Board HD Amplifier Board Module

1. Product Name: Digital audio amplifier board
2. Model: XH ~ M120
3. Work: Class D (PWM modulation)
4. Chip: PAM8610
5. Scope of supply: DC6 ~ 15V
6. Keep pushing Voltage: DC12V
7. Output Power: 15W * 2
8. Channel Type: Dual Channel
9. SNR: 90dB
10. Frequency response: 20Hz-15KHZ
11. Quiescent current: 20MA(DC 12V)
12. Recommend Speaker: 10-100W
13. Input Impedance: 20M
14. Harmonic distortion: <0.1 percentage
15. Model: LDTR-WG0198
16. Material: FR4
17. Chipset: PAM8610
18. Dimensions: 7cm x 4.5cm x 1.8cm
19. Weight: 25g
20. Packing List: 1 * Digital Amplifier Module
