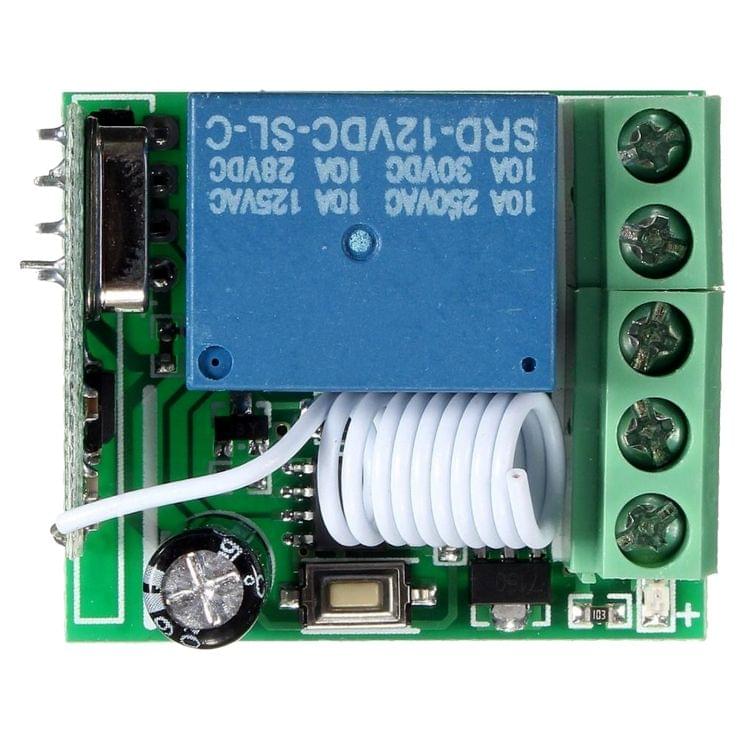

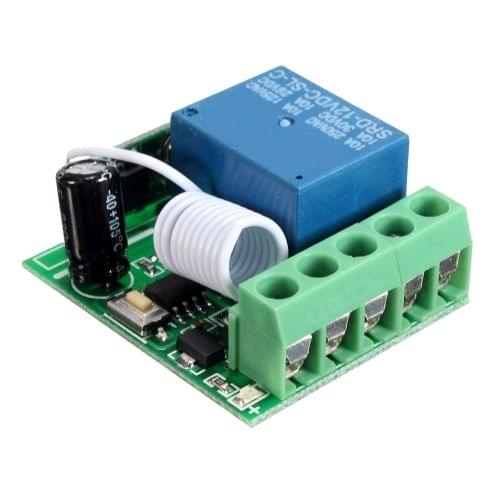

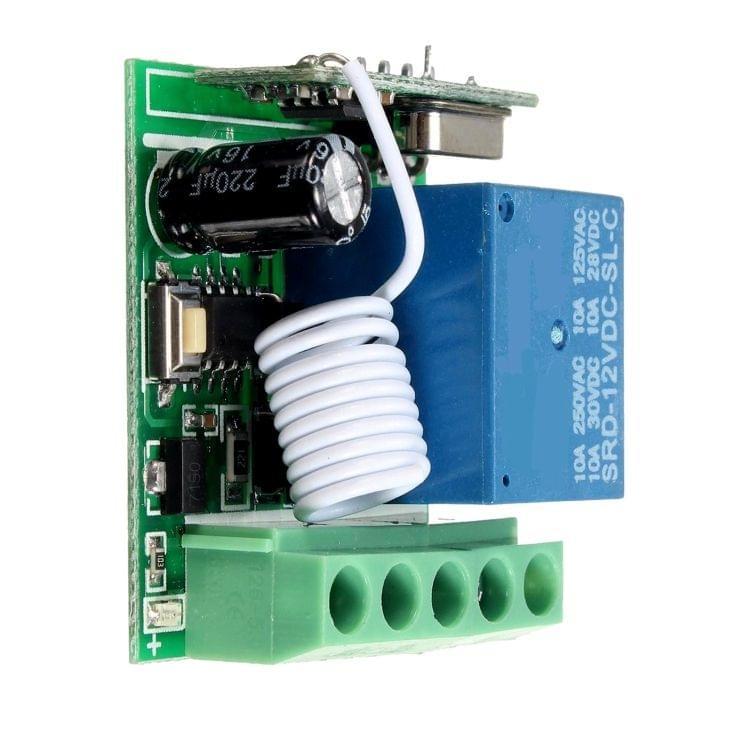

LDTR-WG0228 DC12V 10A 1CH 433MHz Wireless Relay RF Remote Control Switch Receiver (Green)

Specification
1. Input Voltage: DC10-14V
2. Standby Current: <5MA
3. RF Frequency: 433MHZ
4. RF Working mode:Super heterodyne receiver
5. Receiver Sensitivity: >90dBm
6. Remote Control Distance: >100 meter(In open environment)
7. Decoding Way: MCU Software decoding
8. Can store the number of remote control:50
9. Support remote control type: Fixed code, learning code
10. Channel: 1CH
11. Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
12. Wiring Method:Fixed wiring terminal
13. Working Voltage: DC12V
14. Output Current: 10A
15. Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC

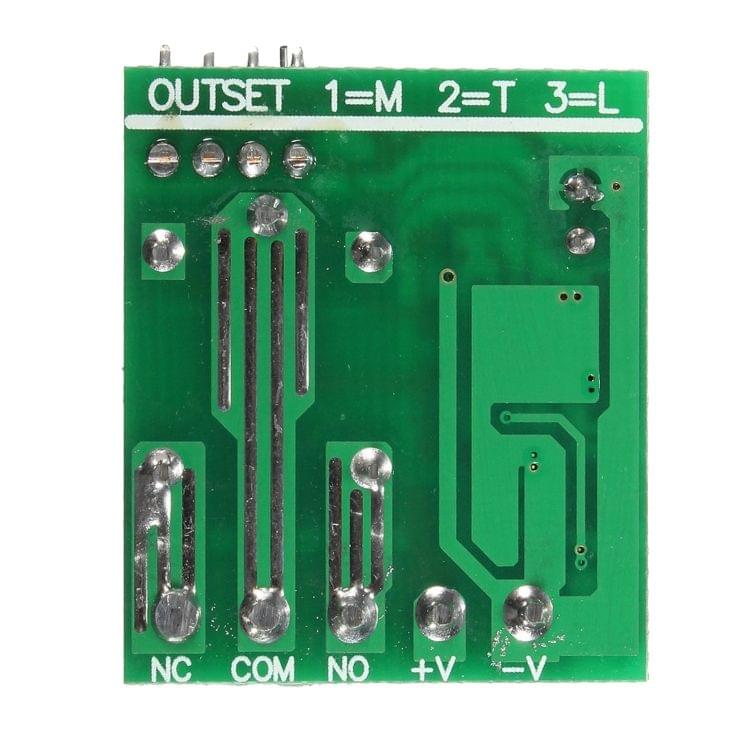

16. Output: Normally open, common, normally closed
17. Dimension: 3.5cm*3cm*1.6cm
18. Package included:
- 1 x 12V 1CH 433MHz Wireless Relay Switch Receiver

Working/output way
1. Jog: Press the learning button then release, set the mode from the system automatically working mode to action mode, wait for a while, when the board LED off, said it is into the learning state, press the remote control, the system received the signal. The LED flashes 5 times and goes off again. After 3S delay, LED light marked learning success, the system automatically withdraw from the learning state.
2. Self-locking: Press the learning button, then release, press 2 times, the system automatically set to self-locking mode, wait for a while, LED off, it is into the learning state, press the remote control, LED flash 5 times Off. 3S after the delay, LED light learning success.
3. Interlock: press the learning button, then release, press 3 times in succession, the system is set to interlock mode.
4. Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay

Description
1. Press the learning code. The indicator flash, loosen your finger, press any button of the remote control the indicator flash 2 t
