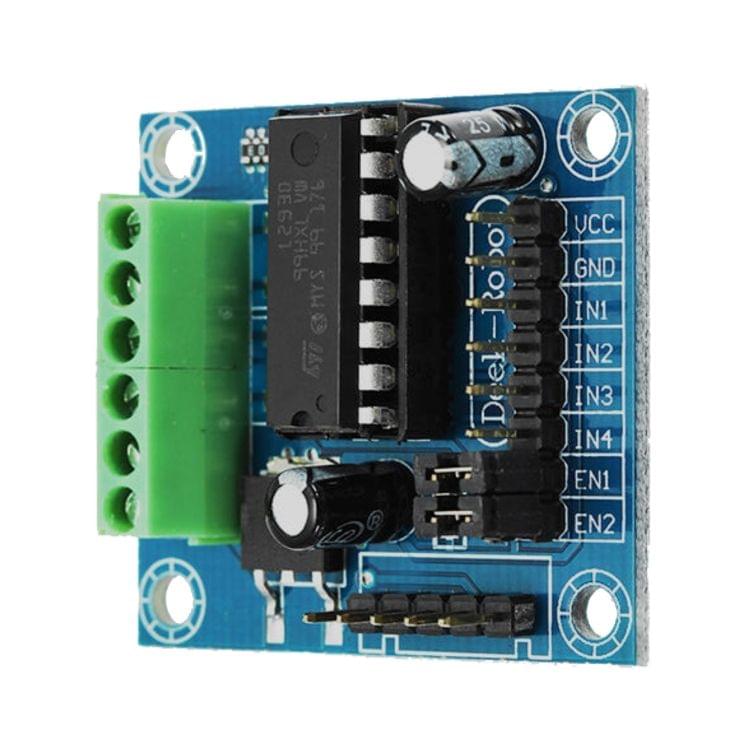

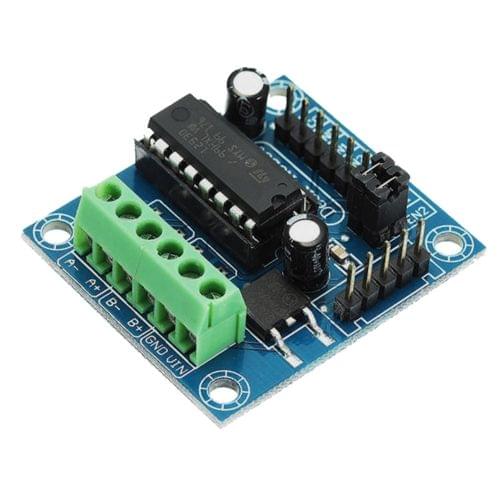

LDTR-WG0258 MINI L293D Arduino Motor Drive Expansion Board Mini L293D Motor Drive Module (Blue)

1. The Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors to simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications
at frequencies up to 5 kHz.
2. Input voltage DC4.5-25V, 600mA output current capability per channel
3. 1.2A PEAK output current(non repetitive) per channel
4. Enable facility
5. Overtemperature protection
6. Logical "0" input voltage up to 1.5 V(HIGH NOISE IMMUNITY)
7. Internal clamp diodes

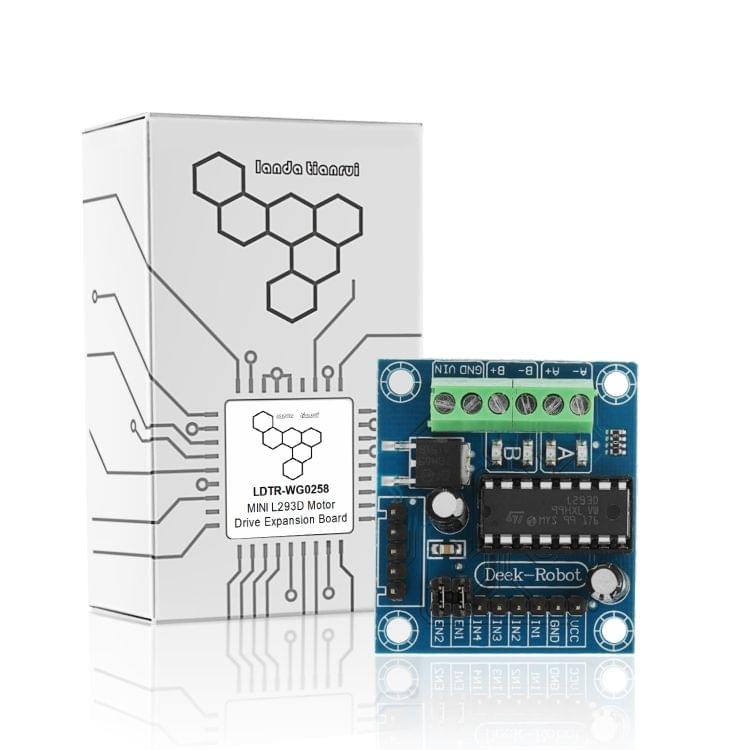

9. Package included: 1 x MINI L293D Arduino Motor Drive Expansion Board
