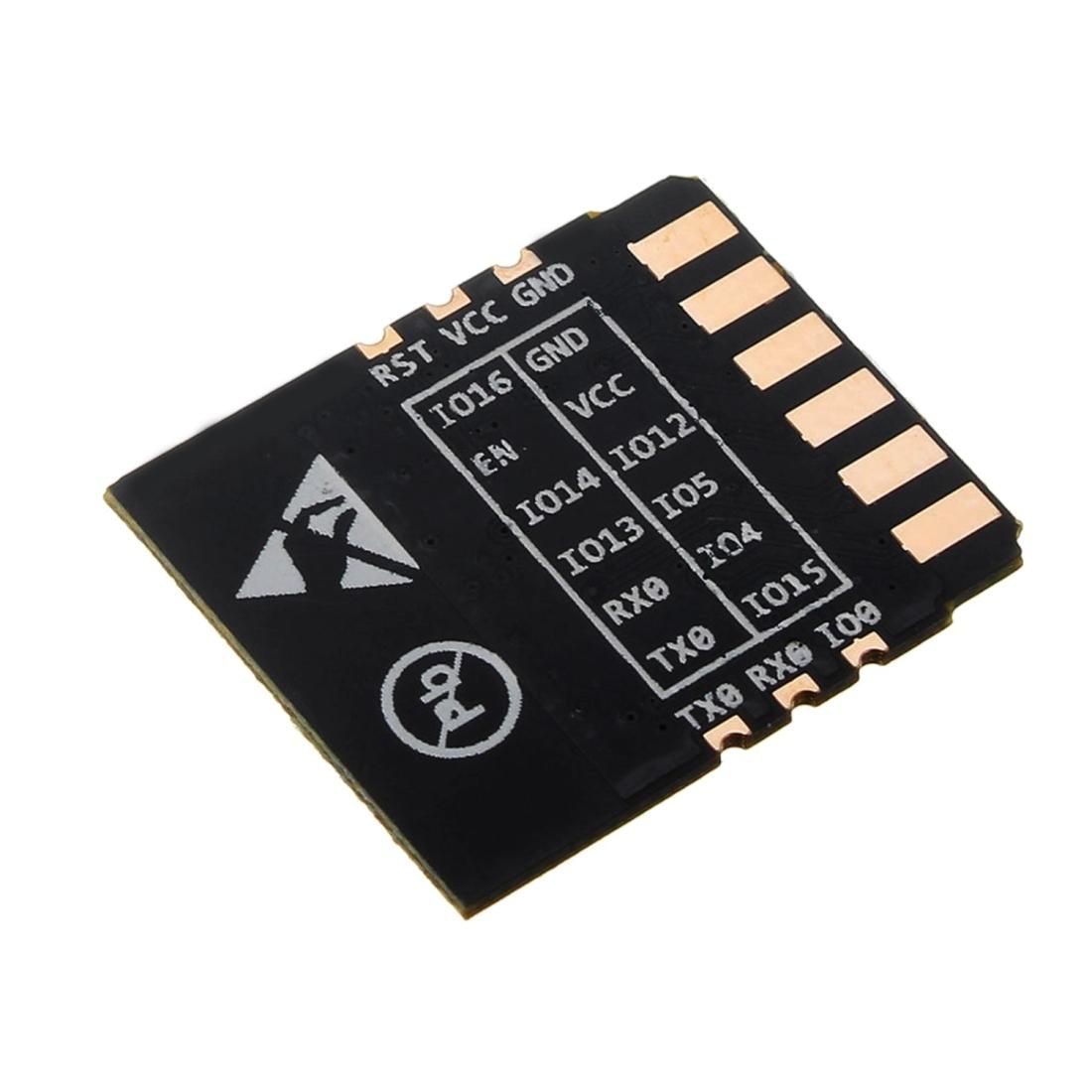

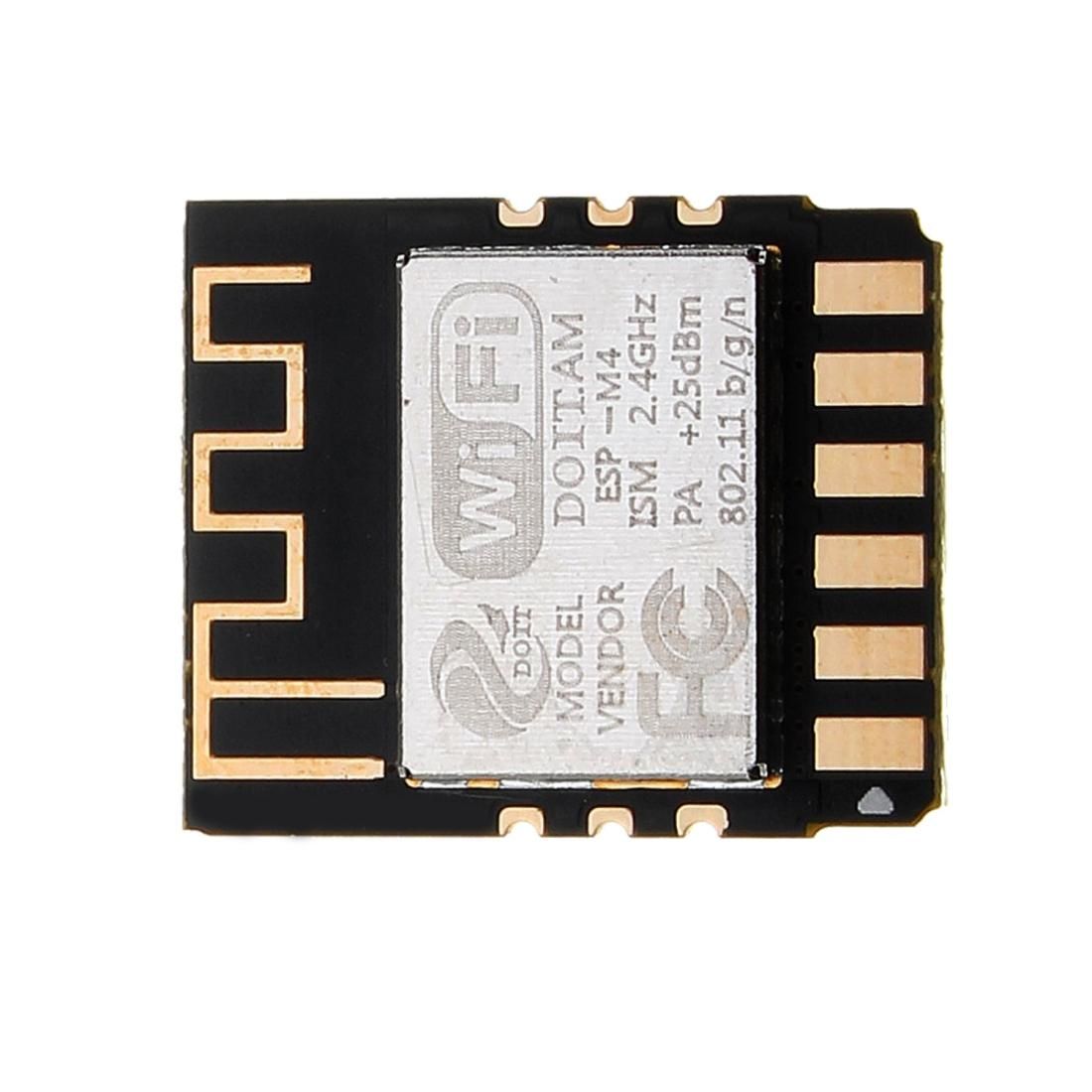

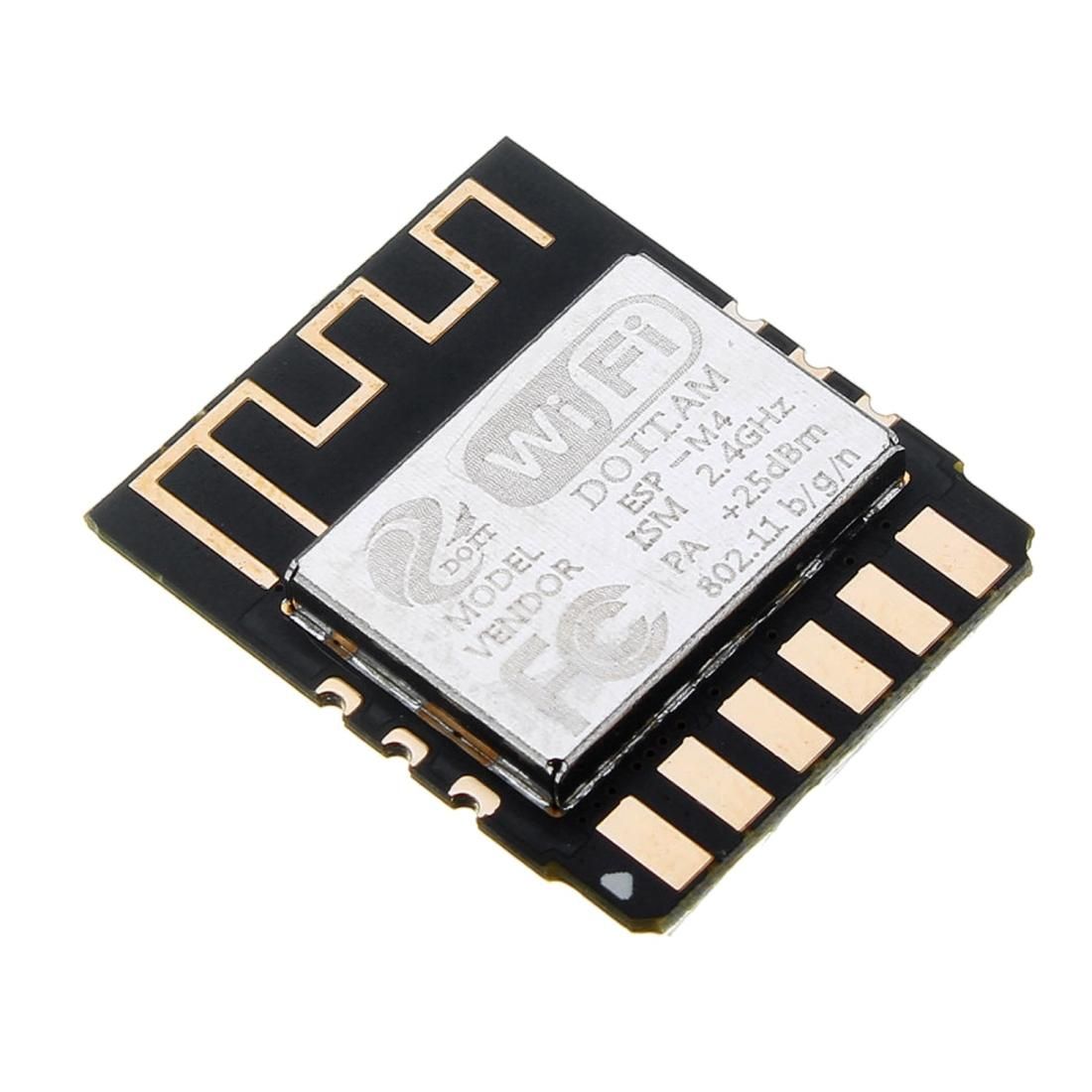

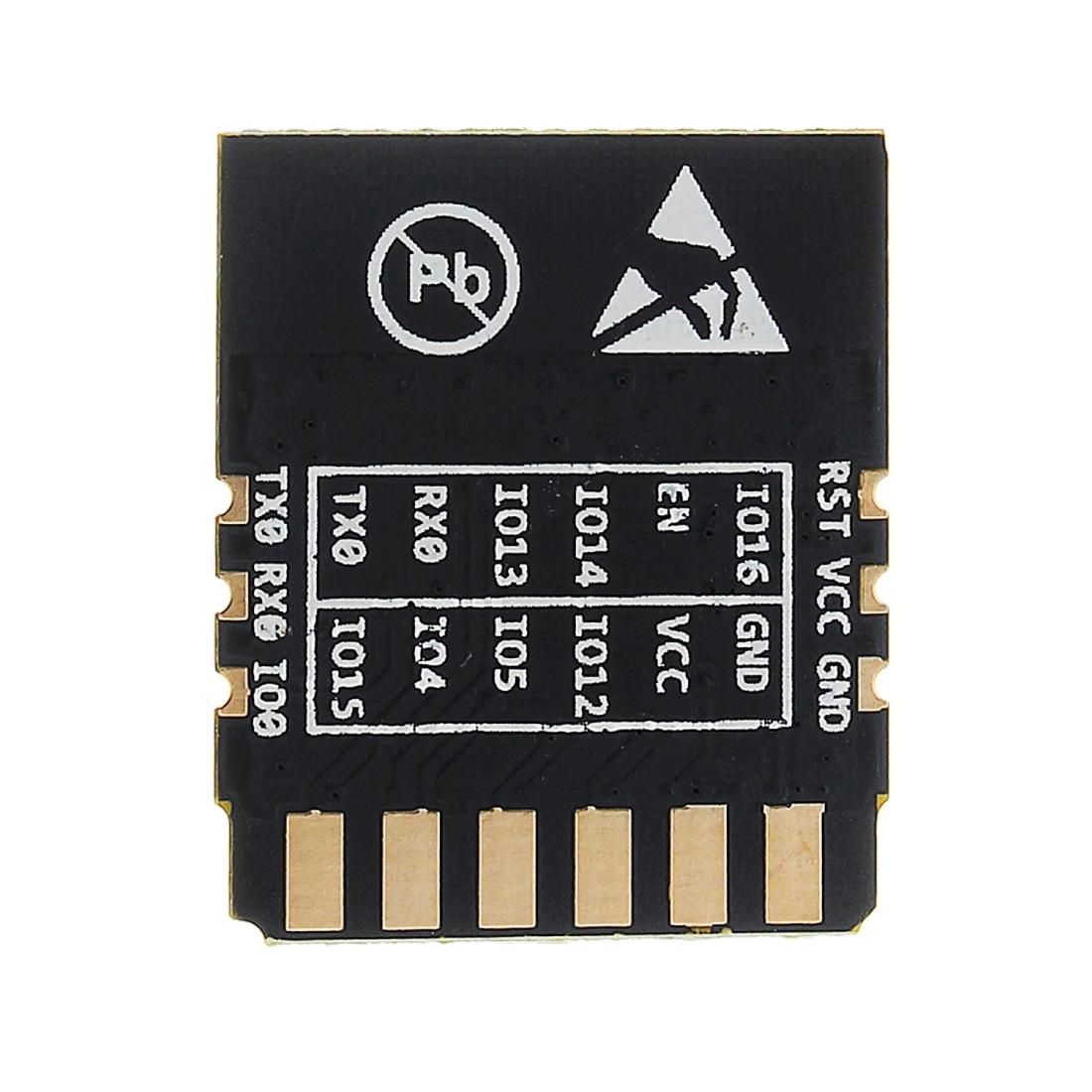

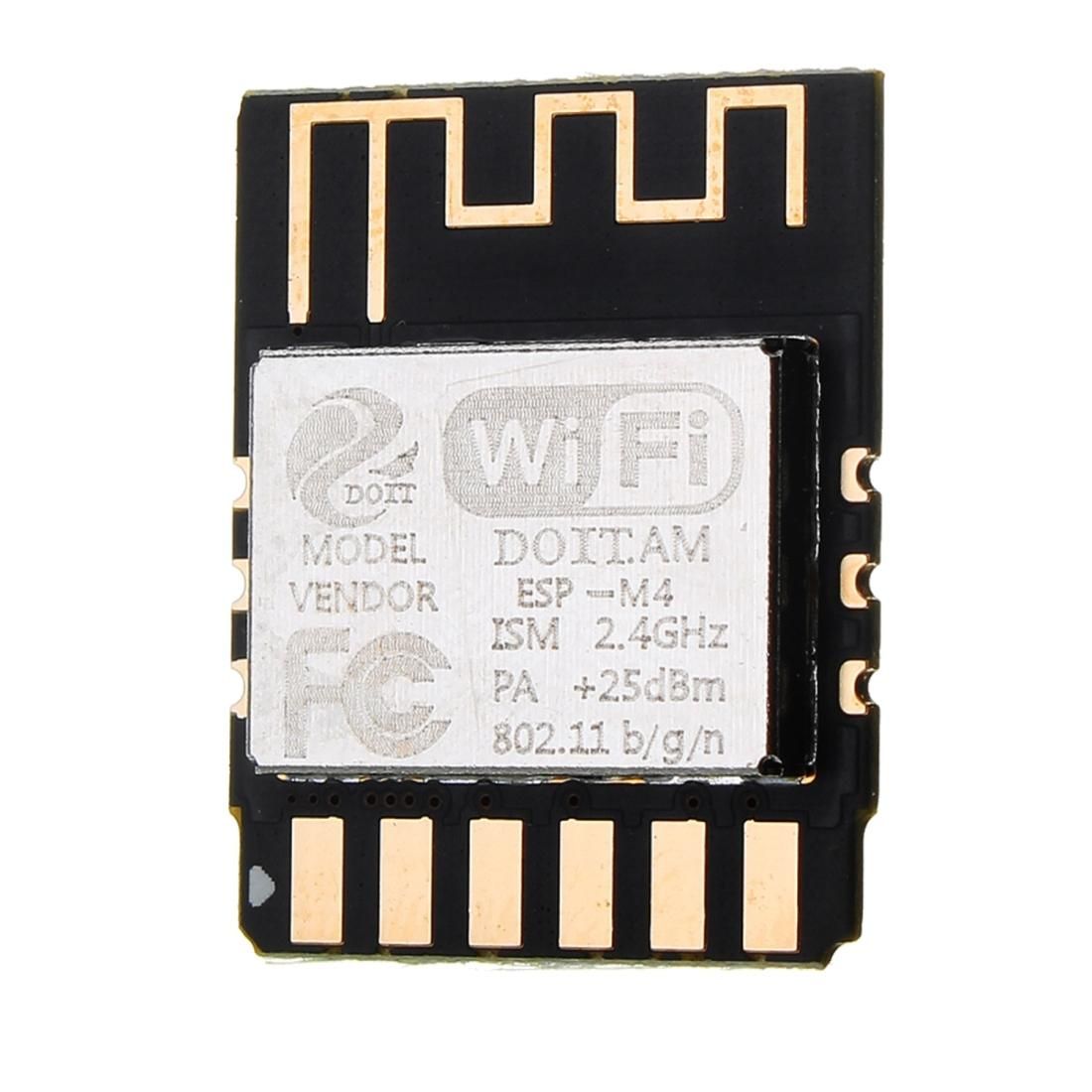

LDTR-WG0264 ESP-M4 Wireless WiFi Module ESP8285 Serial Port Transmission Control Module, Compatible with ESP8266, Transparent Transmission Firmware (Black)

1. The core processor of the ESP-M4 module uses the cost-effective chip ESP8285. The chip integrates an enhanced version of Tensilica L106 Diamond Series 32-bit core processor in a smaller package with on-chip SRAM. The ESP8285 has a full Wi-Fi network function, which can be used independently or as a slave to other host MCUs. When the ESP8285 hosts an application, it can be launched directly from external Flash. The built-in cache helps improve system performance and optimizes the storage system. In addition, the ESP8285 can be used as a Wi-Fi adapter via the SPI/SDIO interface or I2C/UART port for any microcontroller-based design.
2. The ESP-M4 module supports the standard IEEE 802.11 b/g/n/e/i protocol and the complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.
3. The ESP-M4 module offers maximum practicality at the lowest cost, providing unlimited possibilities for Wi-Fi functionality to be embedded in other systems.
4. Material: PCB
5. Dimensions: 2.2 cm x 1.8cm x 0.3 cm
6. Weight: 5g
7. Packing List:
- 1 x ESP-M4 Wireless WiFi Module
- 1 x 1 x Plastic Box
