Description

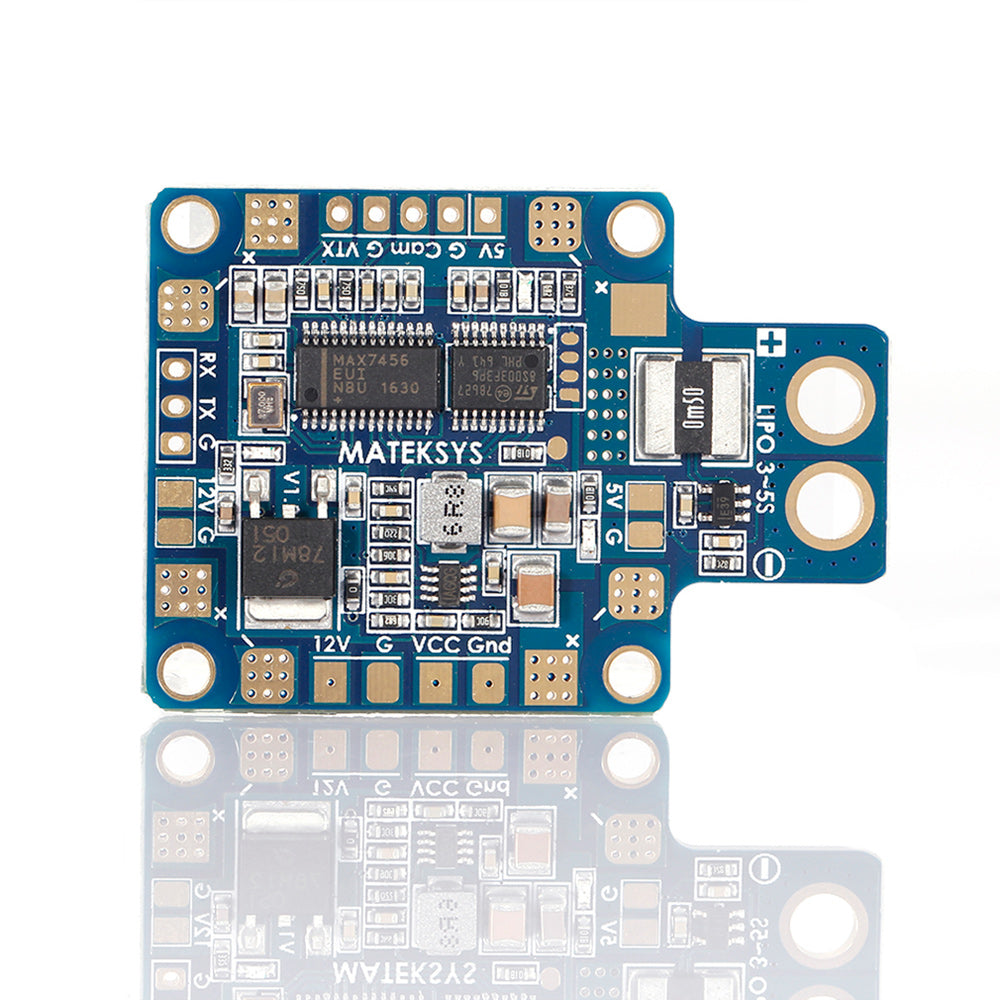

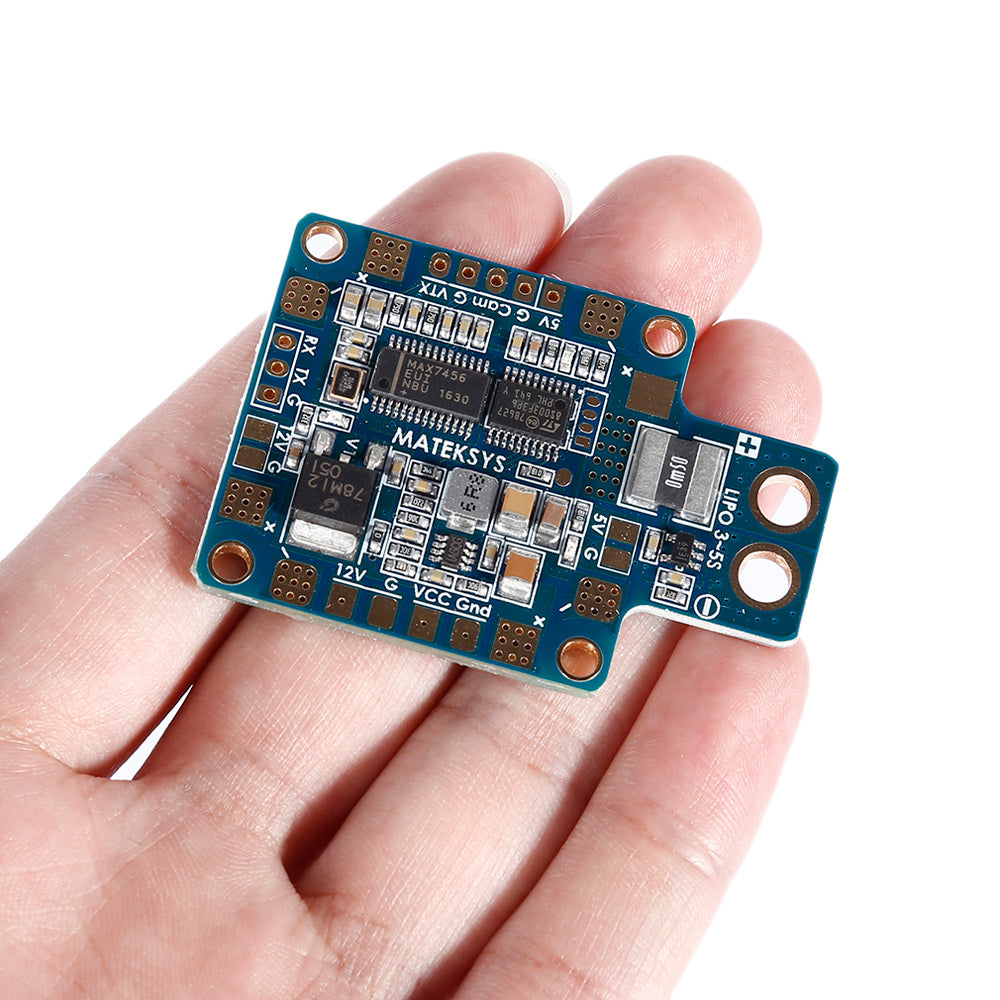

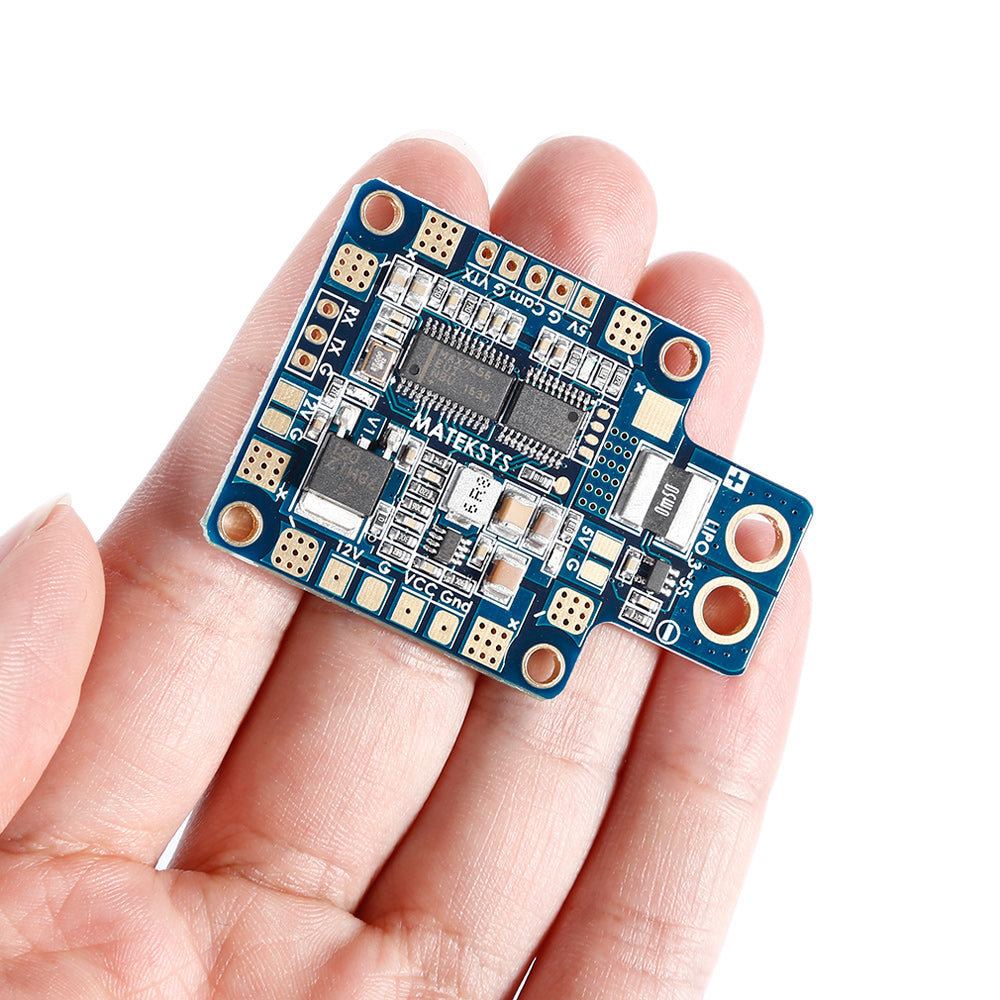

The HUBOSD has been engineered to provide the highest possible performance and reliability in a 46 x 36mm and 4-layer PCB
It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, current sensor 140A, STOSD8
It is specially made for the mini FPV quad
The BEC 12V is linear regulator, no LC filter needed
Built-in STOSD8 can support plug & play, no complicated settings needed

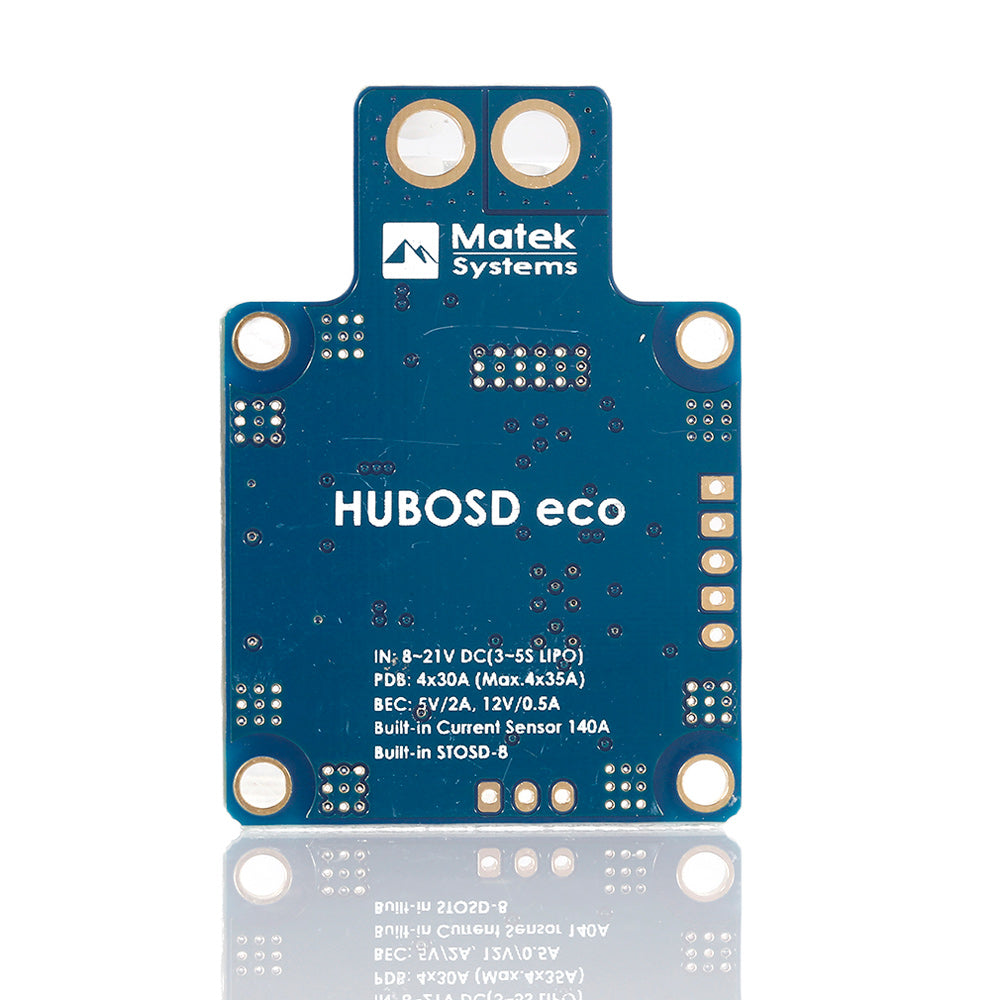

Specifications:
General:
Material: Composite material
Input voltage range (3S-5S operation): 8 - 21VDC
PDB: 4 x 30A (Max.4x35A)
Regulated 5V and 12V outputs
Current sensor 140A
Built-in STOSD8
Physical:
- 2oz copper, 4-layers and 1.6mm PCB
- 1 x battery input, 4 x ESC outputs, 2 x BEC 5V outputs, 2 x BEC 12V outputs - Camera dignal & Gnd pads, video transmitter signal & Gnd pads
- 1 x serial port (RX, TX, G)
- Dimensions: 51 x 36 x 4mm, weight: 18g
- Mounting holes 30.5mm square spacing, ?3mm
PDB (ESC outputs)
Continuous current: 30A per output
Peak current (10 seconds/minute): 35A per output
BEC 5V outputs
Designed for RC receivers, flight controllers, OSD, and servos
DC/DC synchronous buck regulator
Voltage: 5.0 +/- 0.1V DC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)
BEC 12V outputs
Linear regulator, very low noise
LC filter is needless
Designed for video TX or FPV camera
Voltage: 12.0 +/- 0.3VDC (4~5S operation)
Continuous current: 500mA@16V IN, 400mA@20V IN
Short-circuit tolerant (2 seconds/minute)
If the battery is 3S LiPo, output voltage=3S LiPo voltage - 1V

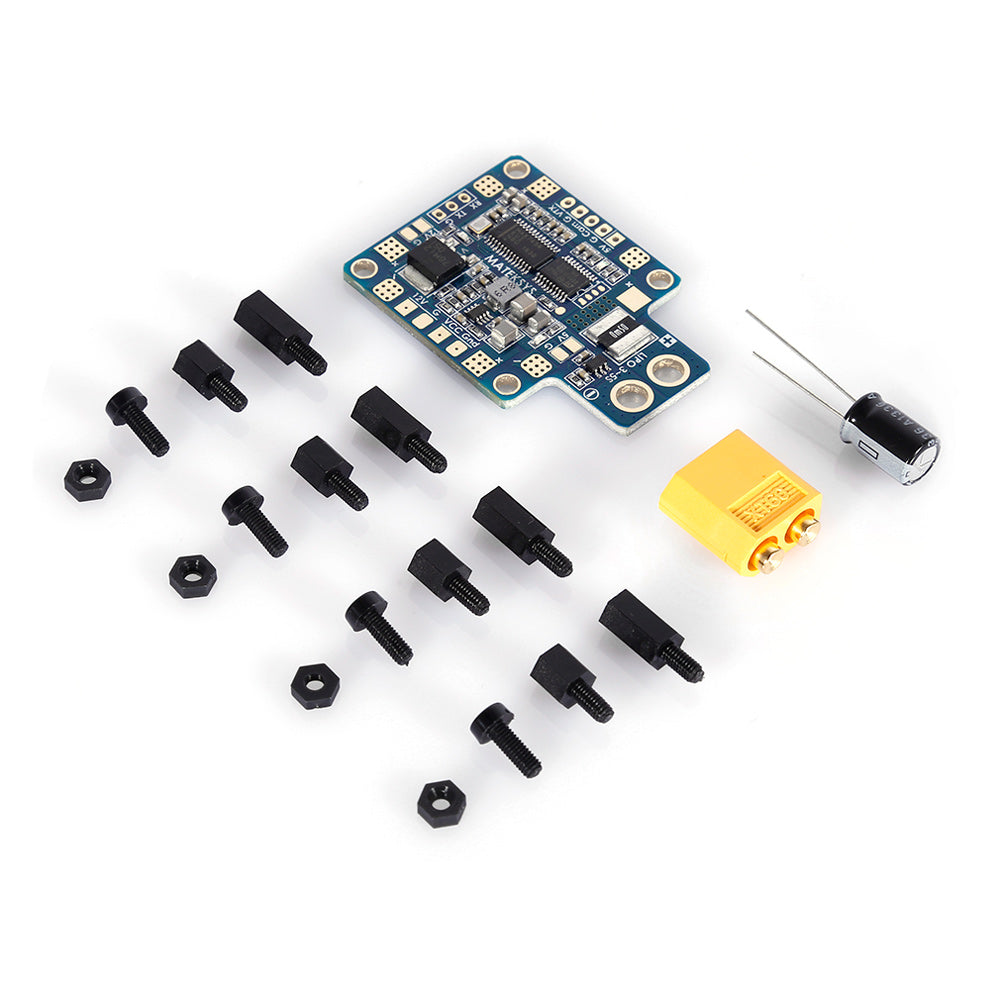

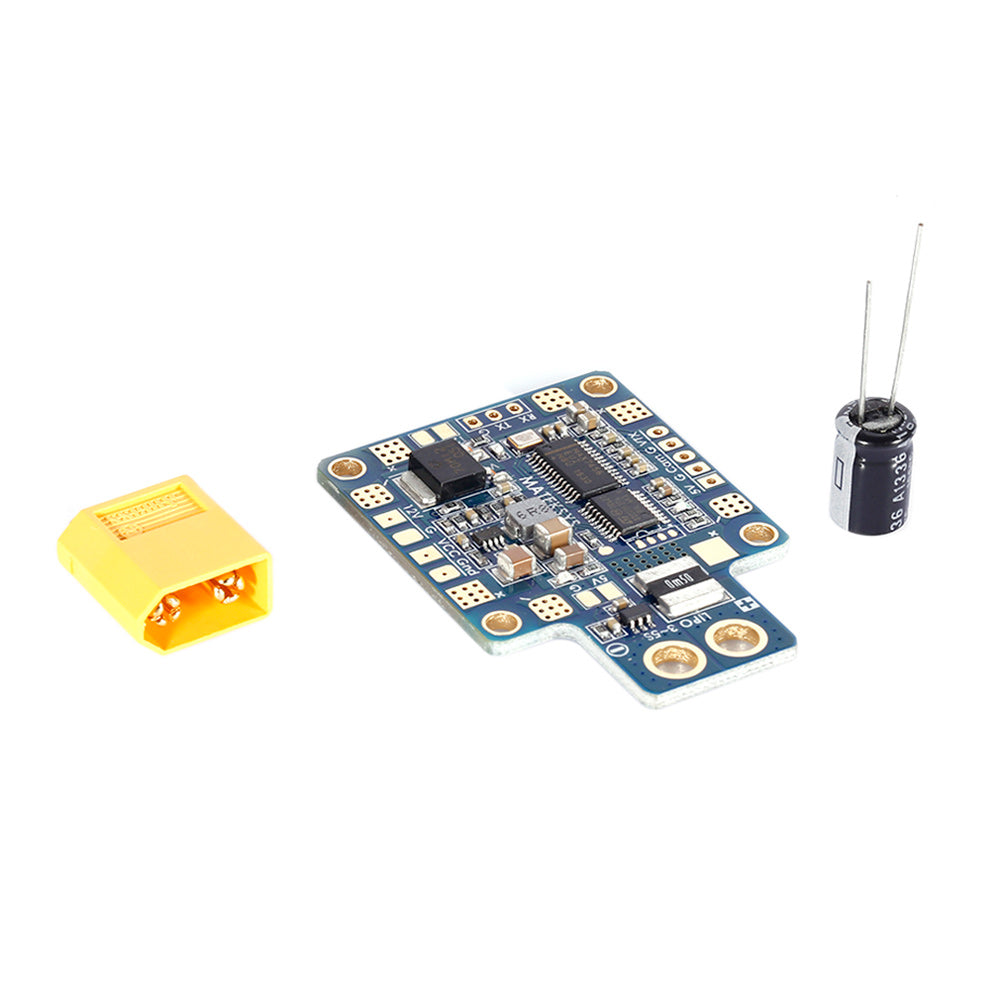

Package included:
1 x HUBOSD Eco X-Type STOSD8 PDB Module Current Sensor
1 x Dual BEC

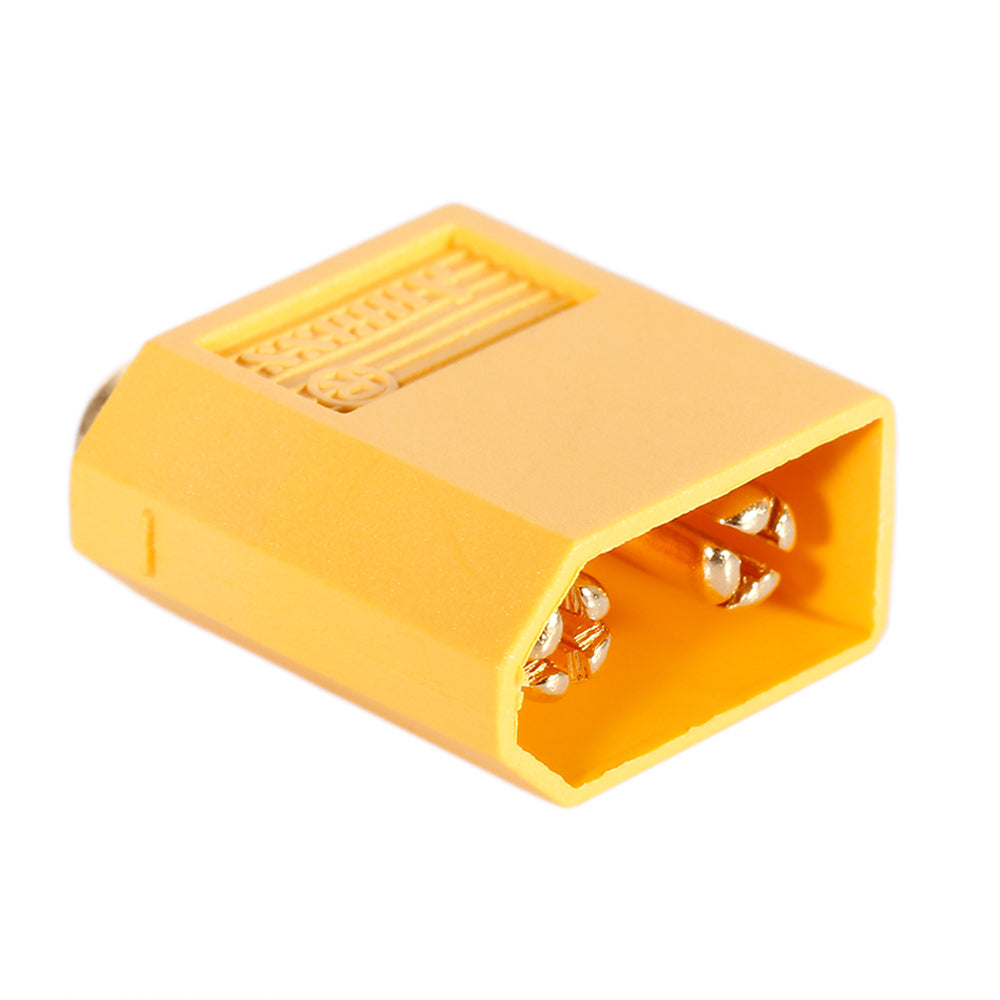

1 x XT60
1 Bag of Screws
