Description
About This Product
1. This RFID Proximity access controller using proximity system is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid.
2. The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed.
3. Access control and safety management system is a new modern safety management system, it is an effective measure to solve the inward and outward safety management. Apply to all kinds of confidential departments, such as bank, hotel, office, computer room, the armory, confidential room, intelligent community, factory, etc.
Magnetic Lock
1. Lock size: 266.5*72.9*40mm.
2. Armature plate: 180*60.8*14.8mm.
3. Holding force: 500kg(1100lbs).
4. Mode: NC (locked whilst power supply is operating), fail safe mode.
5. Voltage: DC12V.
6. Current Draw: 0.5A.
7. Safety function: Built-in voltage spike suppressor.
8. Opening Mode: 90 degree swinging door.
9. Suitable For: Wooden door, Glass door, Metal door, Fire Proof door, etc.
Power Supply
1. Small and exquisite, easy installation.
2. Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only +-1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).
3. AC input: Standard AC100V-240V 50-60HZ 36W.
4. DC output: Stabilizator DC12V/ 3A.
5. It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
6. Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
7. Outside iron shell dimension: 120mm*95 mm*38mm.
8. Set NC / NO outputs, can control various types of electric locks.

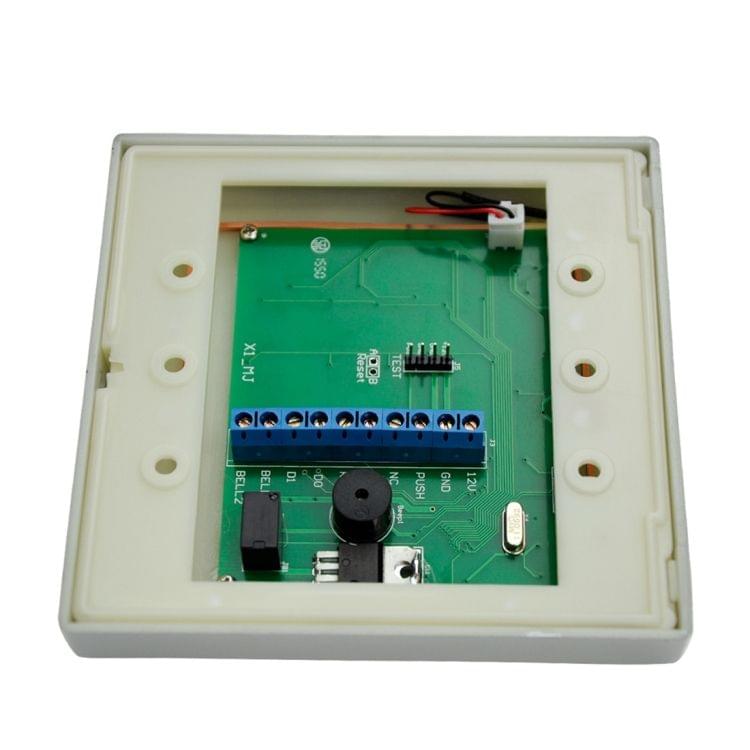

Control System Keypad
1. Power supply: Voltage 12V+/-10% current < 0.1A.
2. Dimension: 116*116mm*20mm.
3. Memory capacity: 500 user cards or 50 door opening passwords.
4. Working distance: 5-15cm.
5. Card Type: EM compatible cards.
Exit Button
1. Dimensions: 86*86*20mm.
2. Current rating: DC 36V 3A Max.
3. Suitable for door: Hollow door.
4. Panel Material: Fireproof material.

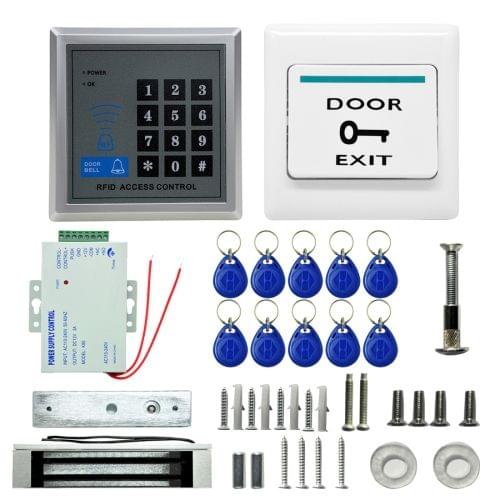

Kit Including
1. Entrance guard host 1 pc
2. Door switch 1 pc
3. Door dedicated power supply pc
4. Magnetic lock pc
5. Buckle card 10 pcs
6. Mounting screws 1 set
