Description

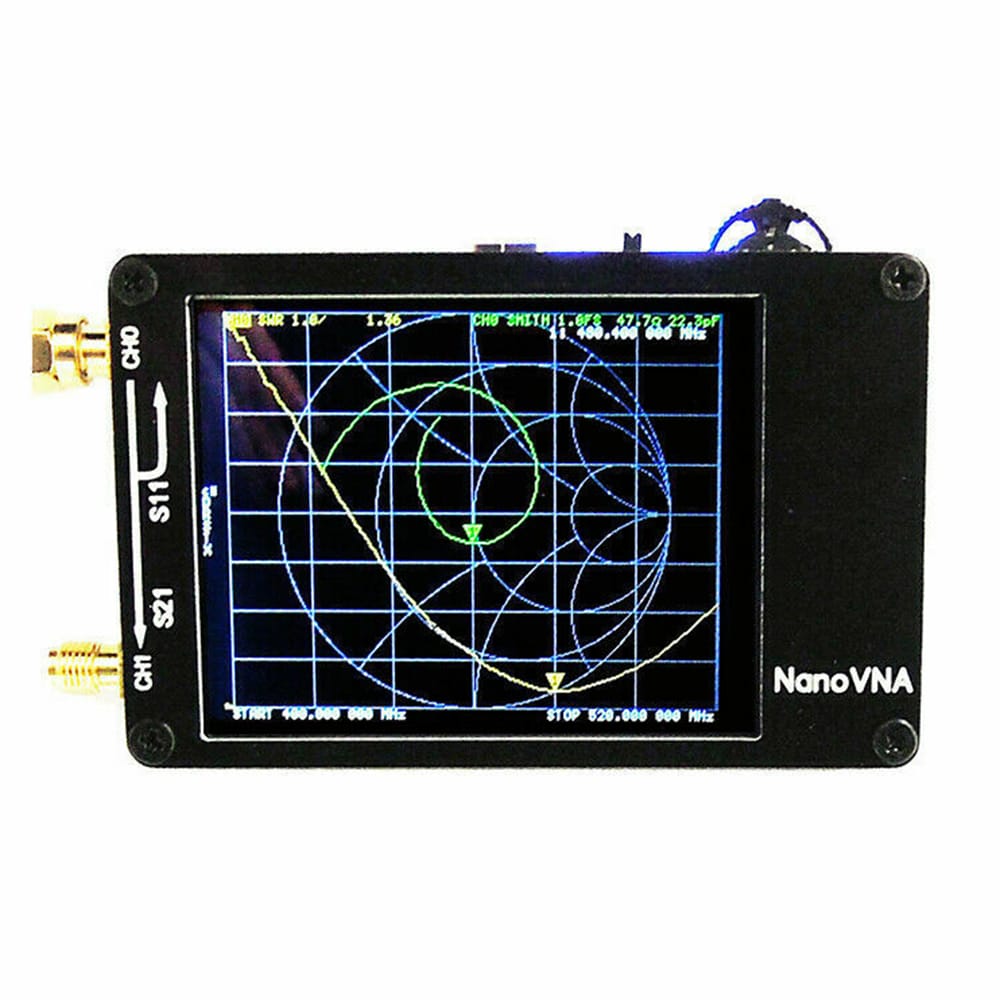

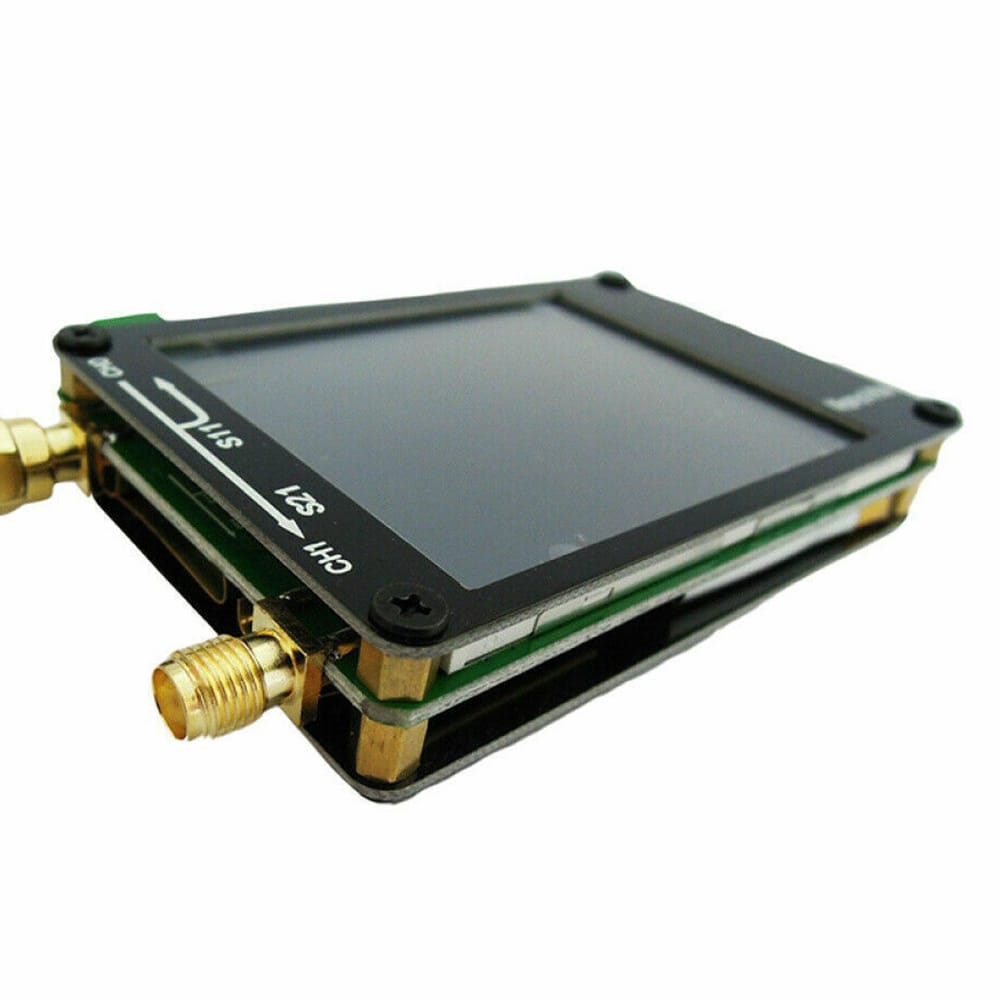

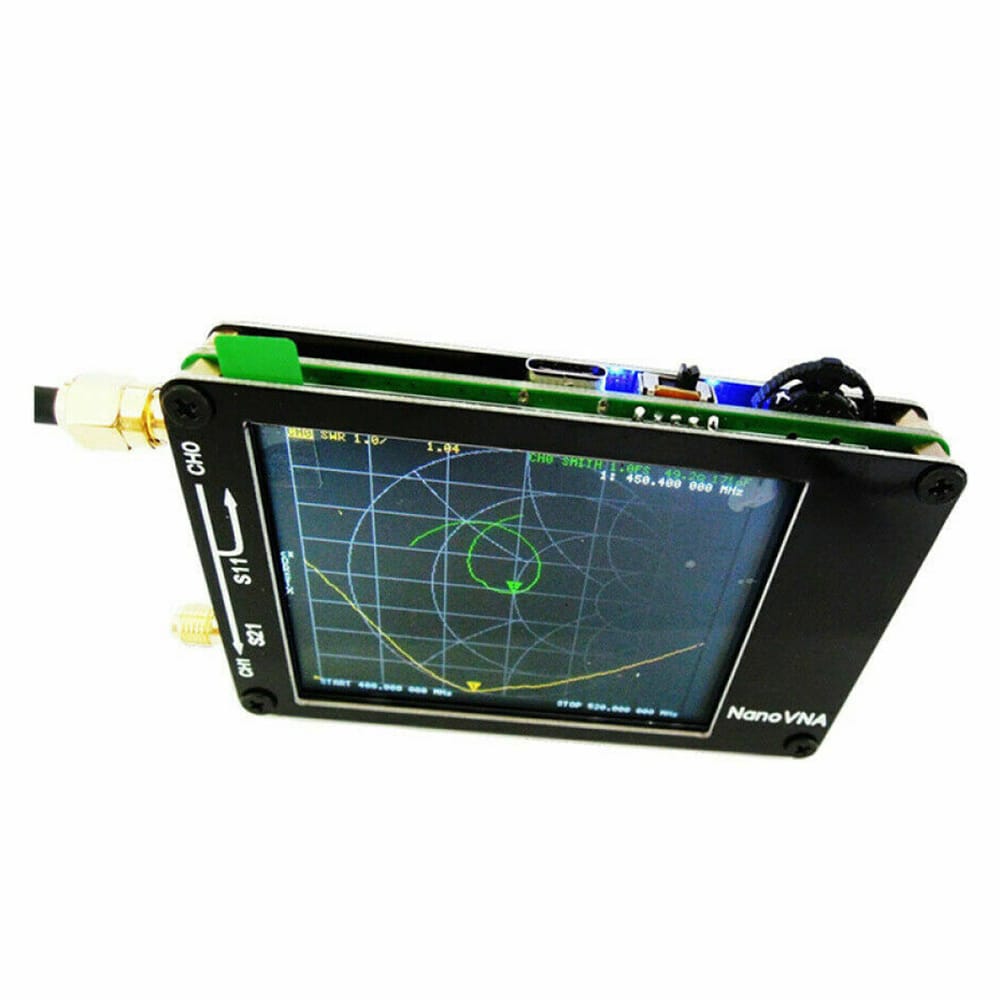

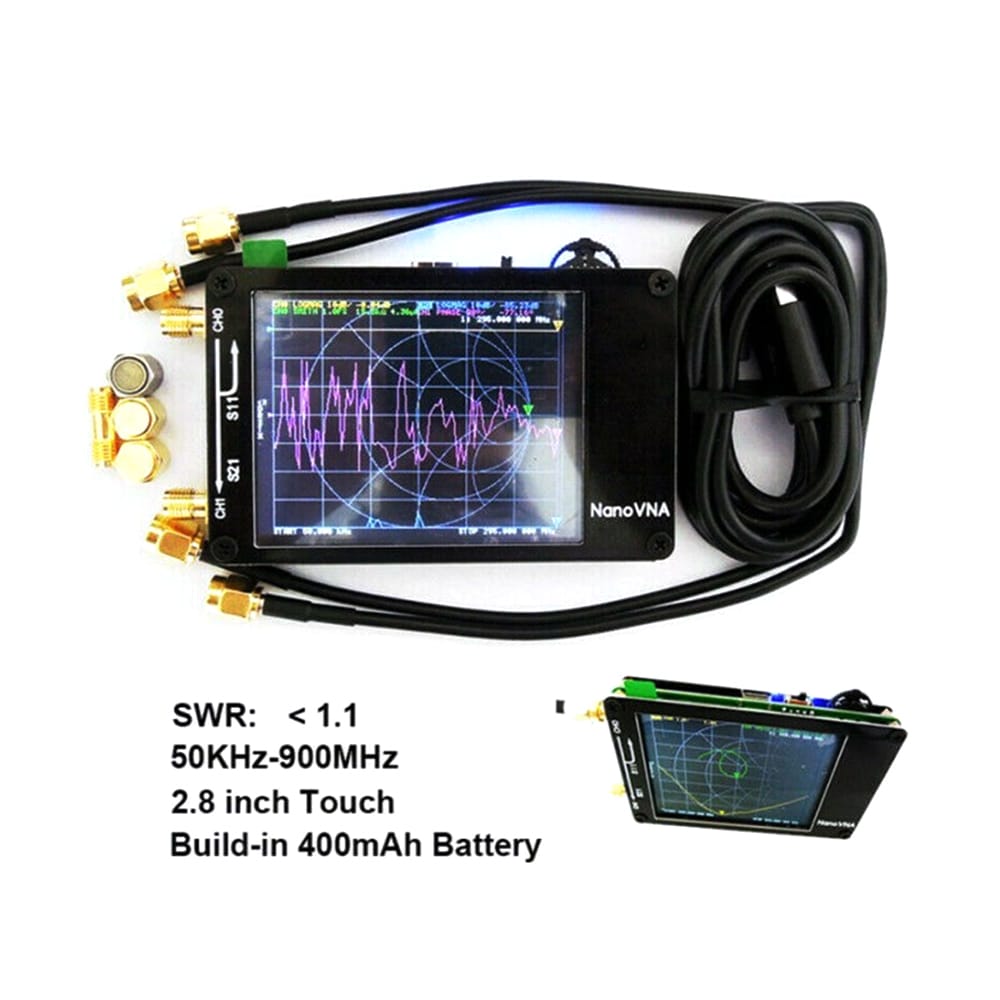

This is a DIY product providing perfect vector network measurement capabilities in the size of a credit card. Simple and practical computer control software you can export touchstone (snp) files to various radio design and simulation software through computer software.Features:The improved frequency algorithm can use the unmatched harmonic extension of SI5351 to support measuring frequency up to 900MHz.Metal shell is designed to reduce external interference and improve measurement accuracy.The frequency range of 50KHz-300MHz of direct output SI5351 provides better than 70db dynamics.The extended range of 300M-600MHz provides better than 50db of dynamics and the 600m-900m band is better than 40db of dynamics.It includes a 2.8 inch press screen and a 400mah battery which can be used offline for 2 hours.The TX/RX method can measure the full parameters of S11 and S21. If you need to get S12 and S22 you need to manually replace the transceiver port wiring.Specifications:Material: LasticsColor: BlackMeasurement Frequency: 50KHz ~ 300MHz (50KHz-900mhz with extended firmware enabled)RF Output: -13dbm (Max. -9dbm)Frequency Accuracy: 0.5ppmMeasurement Range: 70dB(50KHz-300MHz) 50dB (300M-600MHz) 40dB(600M-900MHz) with extended firmware enabledPort SWR: 1.1Display: 2.8-inch TFT (320x240)USB Interface: USB type-CCommunication Mode: CDC (Serial)Power Supply: USB 5V 120mA built-in 400mAh battery maximum charge current 0.8ANumber of Calibration Points: 101 (fixed)Number of Scanning Points: 101 (fixed)Show Trace: 4Mark: 4Setting Save: 5Item Size: 85.5 * 54 * 11mm / 3.37 * 2.13 * 0.43inPackage Weight: 150g / 5.29ouncesPackage Size: 120 * 95 * 35mm / 4.72 * 3.74 * 1.38inPacking List:1 * NanoVNA Host1 * USB Type-C Data Cable2 * 300mm SMA Male to RG174 RF Male Cable1 * Set of SMA Calibration Pieces1 * Female SMA to Female Connector
