Description

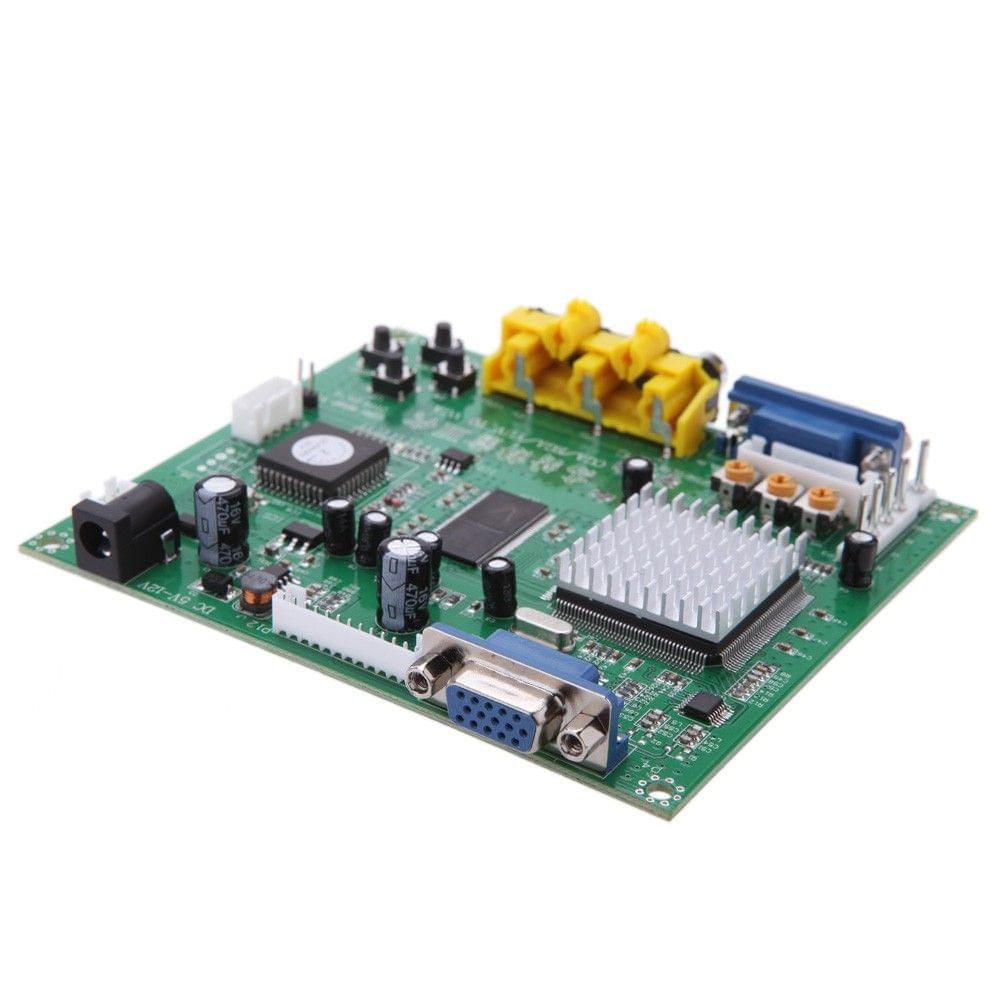

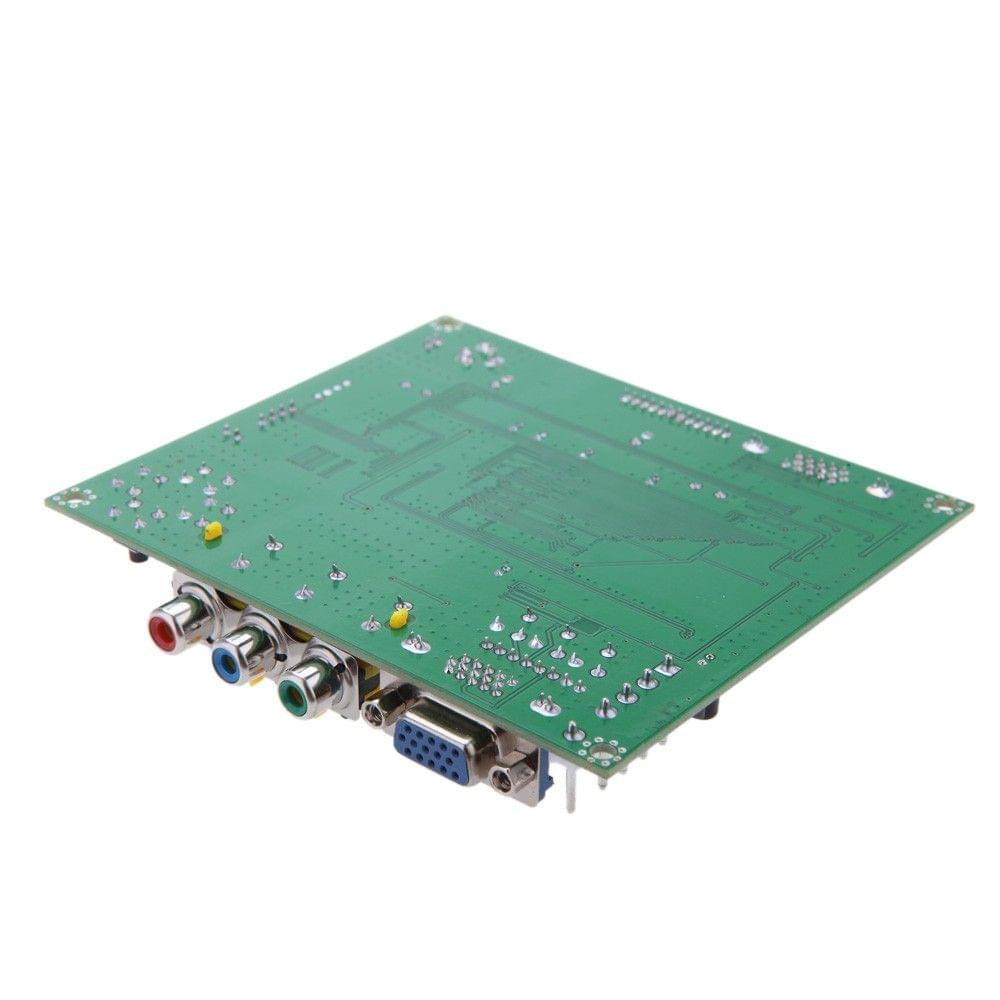

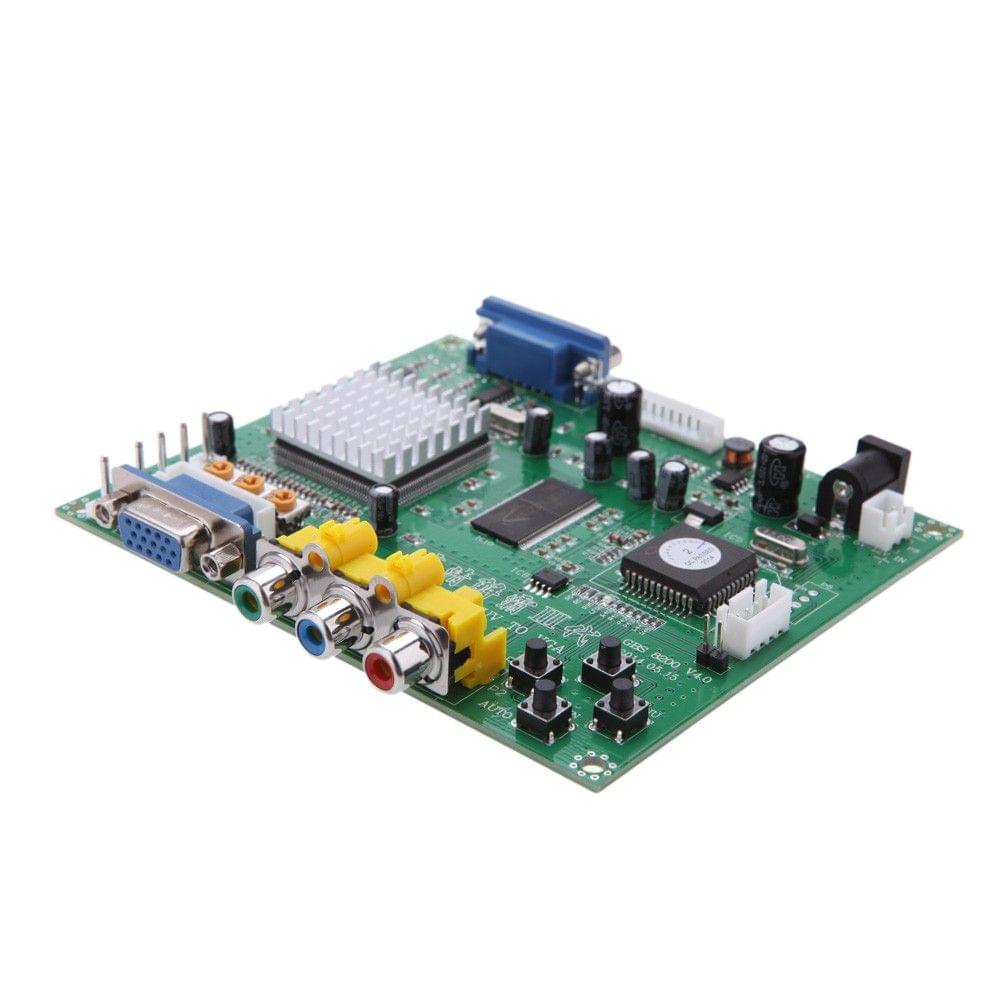

The high definition GBS-8200 Video converter is a professional game converter, which support all games such as, Amusement, Play station, for Xbox, wii, etc. It can convert CGA/EGA/VGA/YUV Component input Signal to the HD Monitors (CRT Monitor LCD Monitor PDP Monitor) with VGA interface (VGA video signal), and automatically scan CGA / EGA / YUV signal, VGA output signals. It will bring you much fun and convenience.
Features:
Convert CGA/EGA/VGA/YUV Component input Signal to VGA video signal
Supports CGA/EGA/VGA/YUV Component Signal Input.
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).
Supports image position control & image zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:
Input Power: DC 5V ±0.5V (2A) P7 or P9
Input signal:
CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
Output signal:
VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13
User controls:
Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green
Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55in
Package Weight: 87g / 3.06oz
Package size: 15.5 * 12.5 * 3.0cm / 6.10 * 4.92 * 1.18in
Package weight: 116g / 4.09oz
MENU CONTROL:
“MENU” open OSD menu, and enter.
“UP” up and increase.
“DOWN/AUTO” down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu)
“SW” switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu).
“Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package list:

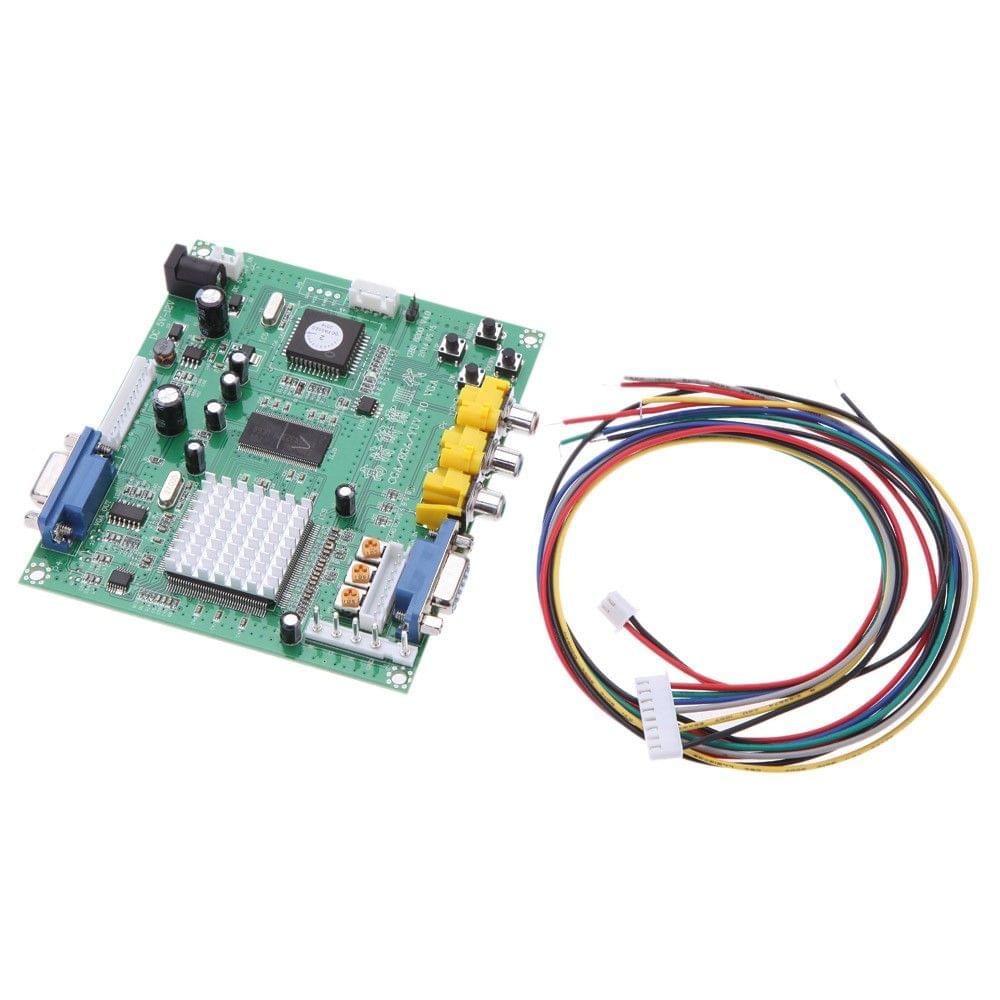

1 * CGA/EGA/RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
Features:
Convert CGA/EGA/VGA/YUV Component input Signal to VGA video signal
Supports CGA/EGA/VGA/YUV Component Signal Input.
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768).
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p).
On Screen Display (English and Chinese).
Supports image position control & image zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:
Input Power: DC 5V ±0.5V (2A) P7 or P9
Input signal:
CGA / EGA: 14.5kHz ~ 16.5kHz / 23.5 ~ 25.5kHz / 30.5 ~ 32.5 kHz (Auto scan) P3 or P11 or P10
RGBHV: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
VGA: 30.5 ~ 32.5 kHz (Auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (Auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (Auto scan) P2
Output signal:
VGA: 640 * 480, 800 * 600, 1024 * 768, 1360 * 768 P4 and P13
User controls:
Input Switch, Image Zoom, Input Zoom, Image Position, Output resolution, R/G/B gain adjust. MENU KEY R/G/B VR
Color: Green
Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55in
Package Weight: 87g / 3.06oz
Package size: 15.5 * 12.5 * 3.0cm / 6.10 * 4.92 * 1.18in
Package weight: 116g / 4.09oz
MENU CONTROL:
“MENU” open OSD menu, and enter.
“UP” up and increase.
“DOWN/AUTO” down and reduce.
Press this key: auto scan CGA/EGA signal
Press this key over 5 second and release: reset system (this operation is invalid when you open OSD menu)
“SW” switch input signal Ypbpr/RGBS/RGBHV (this operation is invalid when you open OSD menu).
“Clamp sp” & “Clamp” please don’t adjust this button, except the monitor has black item or picture discoloration.
For more functions control, please look at OSD to operate.
Package list:
1 * CGA/EGA/RGB To VGA Game Video Converter Board
1 * 6pin signal wire
1 * 2pin power supply wire
