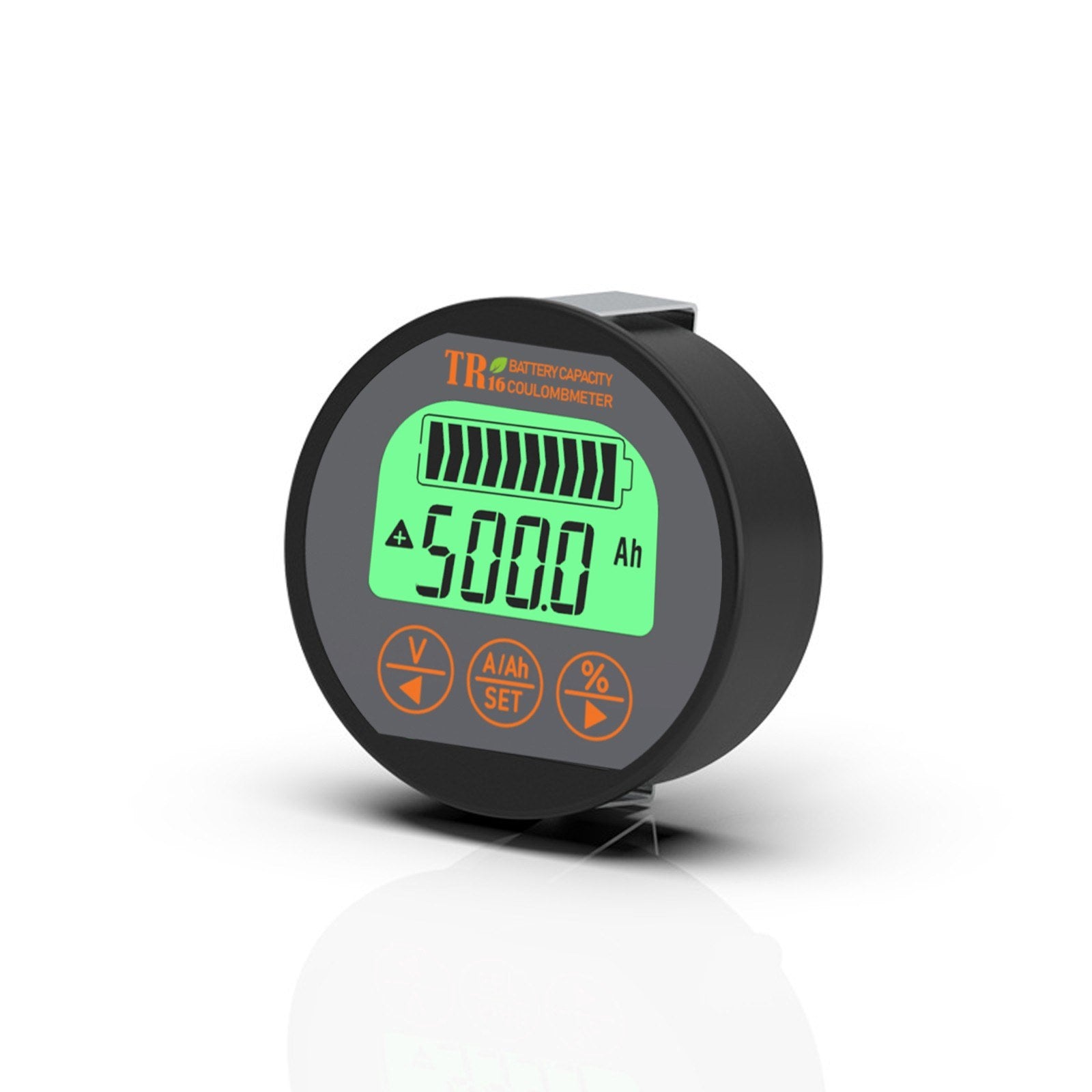

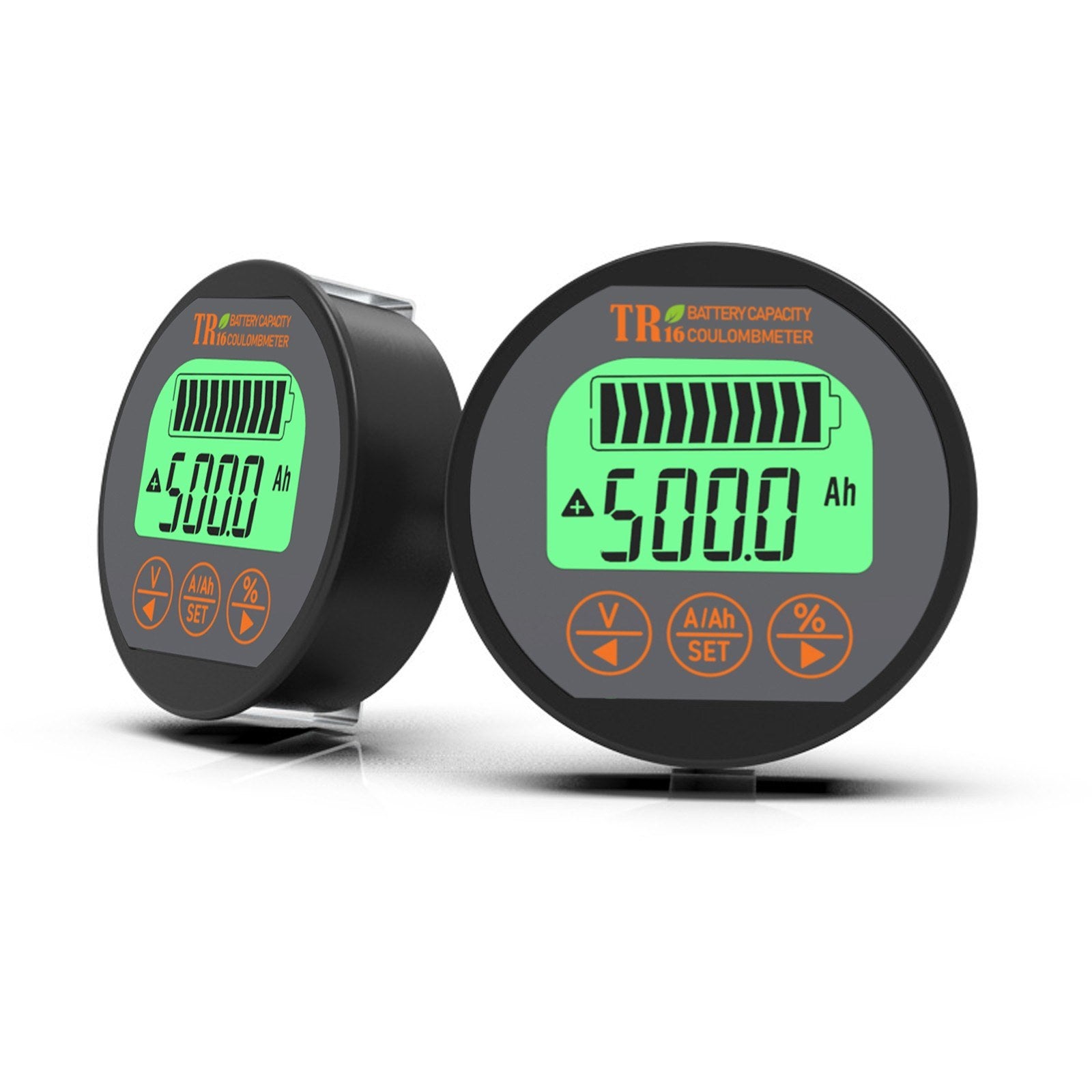

TR16 8-120V Waterproof Battery Capacity Tester Voltage Current LCD Display with Memory Function

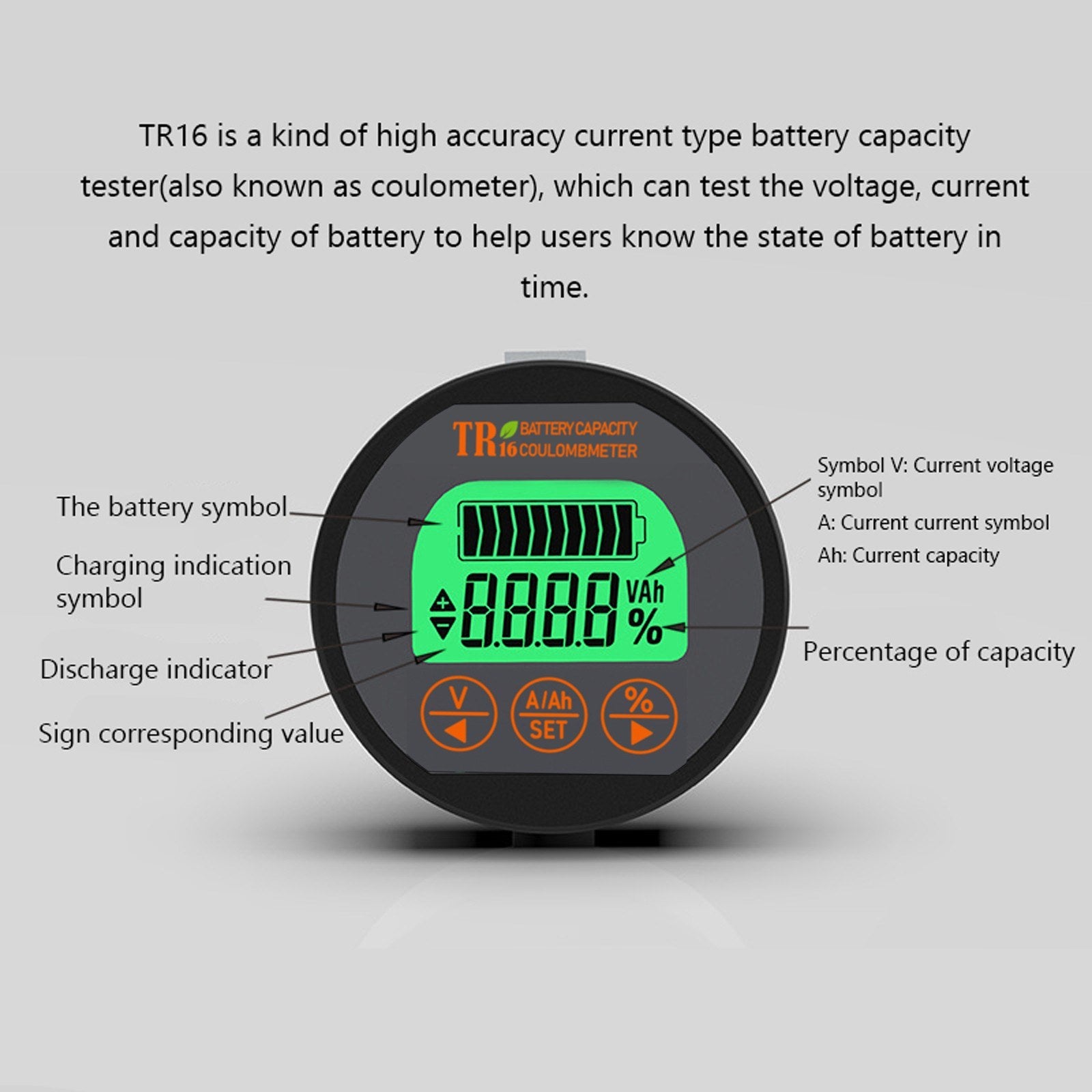

TR16 is a kind of high accuracy current type battery capacity tester(also known as coulometer), which can test the voltage, current and capacity of battery to help users see the state of battery in time. TR16 has memory function. It is suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, etc.

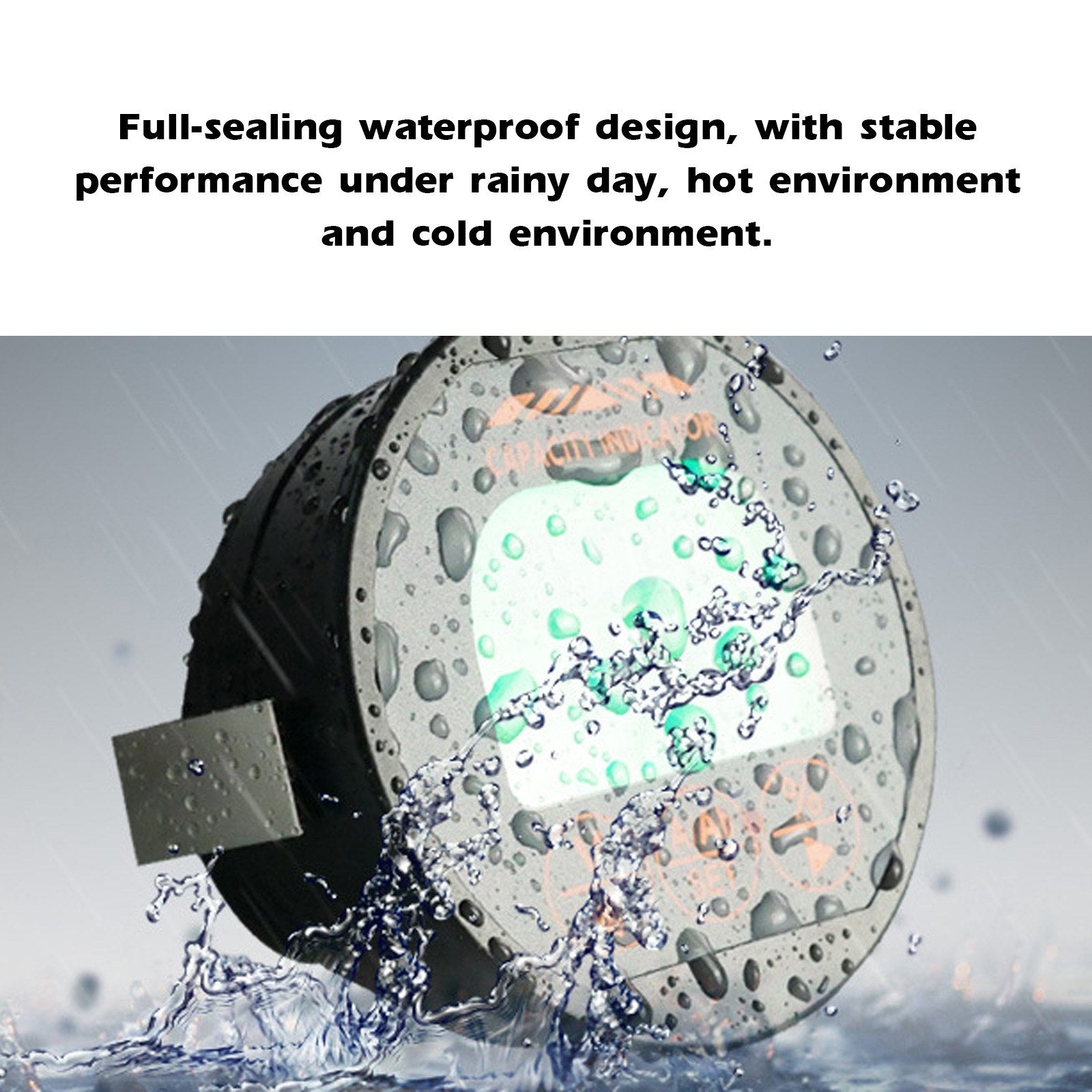

• Full-sealing waterproof design, with stable performance under a rainy day, hot environment and cold environment.
• Large capacity design, max 999.9AH settable, compatible with all kinds of batteries
• High accuracy design, the testing error of charge and discharge quantity of electricity is ≤1%
• Equipped with LCD display, you can see the electric quantity, voltage, current clearly
• Suitable for lithium batteries, lithium iron phosphate batteries, lead acid batteries and nickel-metal hydride batteries whose working voltage is from 8V to 120V
• Help to test the voltage, current and capacity of the battery to help users know the state of the battery in time

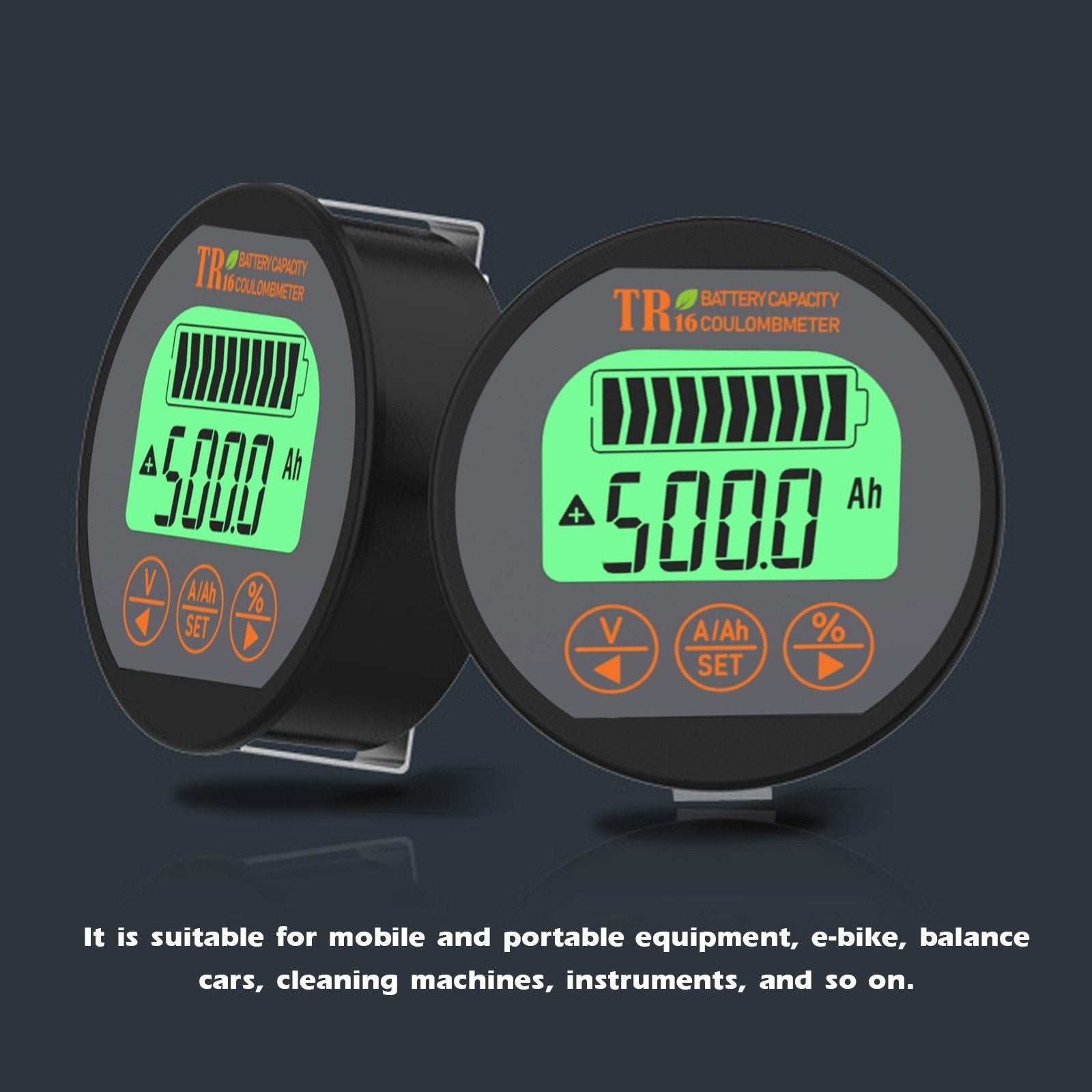

• Suitable for mobile and portable equipment, e-bike, balance cars, cleaning machines, instruments, etc.

Specifications:

• Name: Battery Capacity Tester
• Model: TR16
• Material: ABS
• Testing-range: 8-120V
• Current: 50A, 100A, 350A (optional)
• Working dissipation: 10.0-12.0mA
• Standby dissipation: 0.5-0.6mA
• Sleep dissipation: 50-60μA
• Voltage accuracy: ±1.0%
• Current accuracy: ±1.0%
• Capacity accuracy: ±1.0%
• Backlight on current(50A): 50.0mA
• Backlight on current(>50A): 100.0mA
• Preset capacity value: 0.1-999 Ah
• Current of 50A sampler: 0.0-75.0A
• Current of 100A sampler: 0.0-150.0A
• Current of 350A sampler: 0.0-500.0A
• Temperature range: -10 to 60 ?
• Item size: 59 * 59 * 20mm / 2.32 * 2.32 * 0.79in

Item weight:

• 50A: 200g / 7.05ounce
• 100A: 270g / 9.52ounce
• 350A: 410g / 14.46ounce

Package included:

• 1 x Battery Capacity Tester

• 1 x Cable

• 1 x Bracket
