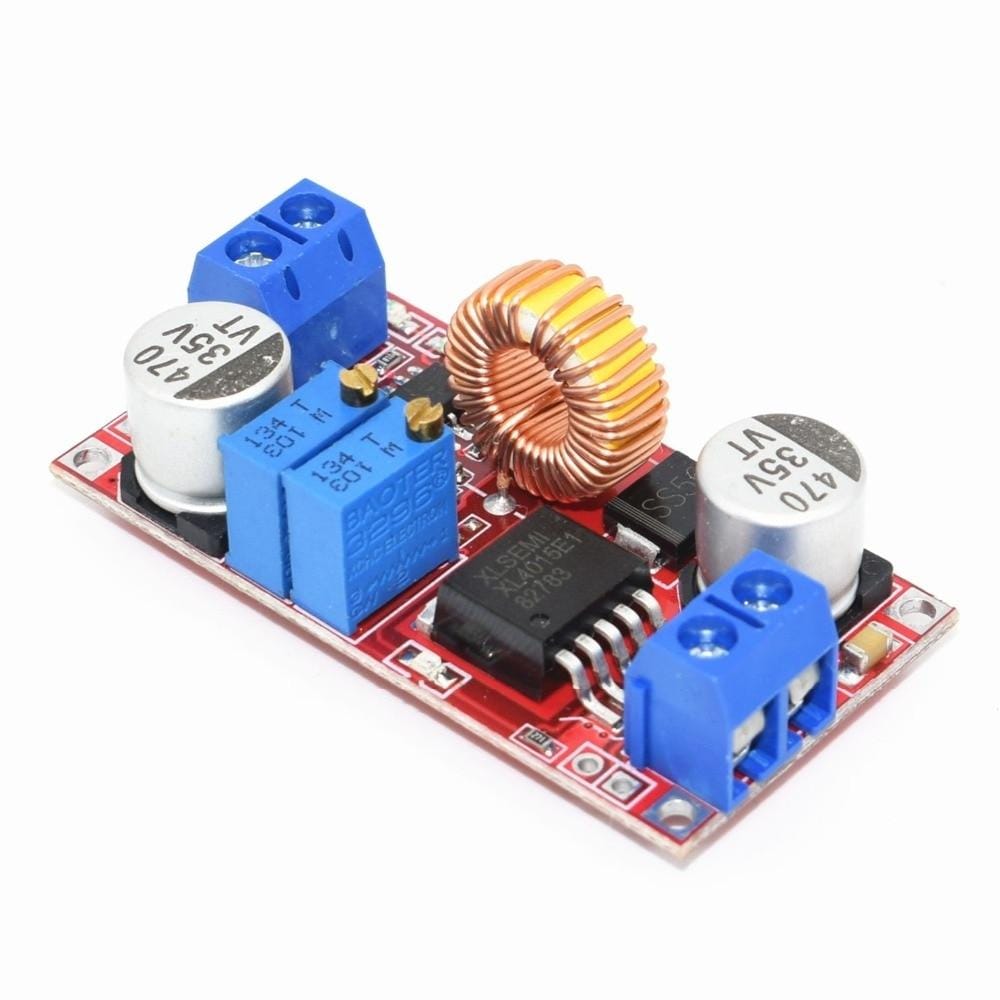

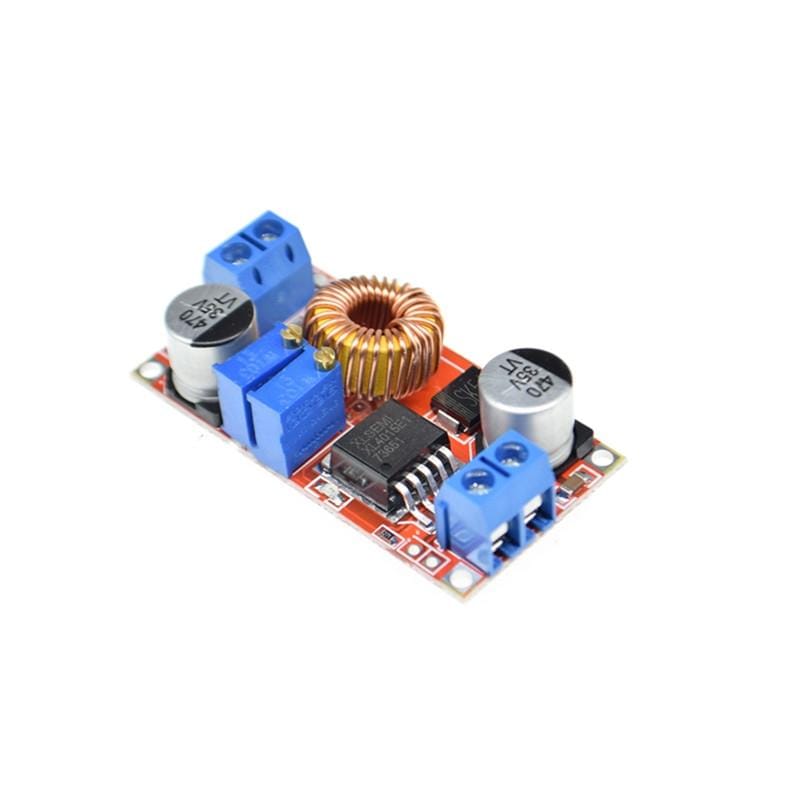

XL4015 High Current 5A Constant Current And Constant Voltage LED Drive Lithium-ion Battery Charging Power Module (Red)

1. Rectification mode: Asynchronous rectification
2. Input voltage: 5V-32V
3. Output voltage: 0.8V-30V
4. Output current: adjustable up to 5A
5. Conversion efficiency: 95% (maximum)
6. Switching frequency: 300KHz
7. Output ripple: 50mV (maximum) 20M bandwidth
8. Load adjustment rate: 0.5%
9. Voltage regulation rate: 2.5%
10. Operating temperature: -40 C to +85 C
11. Size: 51*26.3*14 (length * width * height) (mm)
