Description
- The AX99100 is a single-chip solution that fully integrates PCIe 2.0 Gen 1 endpoint controllers and SerDes with various peripherals, such as two/four high-speed serial ports, a parallel port, an I2C master device, high-speed SPI, local bus (ISA Like), and GPIO
- It consists of four main configurations, such as 2S (PCIe to Dual Serial), 2S+1P (PCIe to Dual Serial and Single Parallel)
- 2S+SPI (PCIe to dual serial and SPI) and LB (PCIe to local bus/ISA) - Like) are suitable for different types of applications
- The AX99100 is packaged with 68-pin QFN and complies with RoHS standards. It supports a commercial operating temperature range of 0? to 70? and an industrial temperature range of -40? to 85?
Specifications:
- PCI Express:
- Single channel (X1) PCI Express endpoint, PHY integrated controller
- Complies with PCI Express card specifications, PCI Express 2.0 Gen 1
- PCI Power Management 1.2 compliant
- Supports traditional and MSI interrupts, ASPM power management
- RS-232 serial port interface
- Dual or quad UART
- Support RS-232/RS-422/RS-485 multi-protocol
- Up to 25 Mbps bidirectional speed per port
- Full serial modem control
- Support hardware and software flow control
- Supports 5, 6, 7, 8 and 9 bit serial formats
- Support even, odd, none, space and mark parity
- Support custom baud rate through internal PLL or external clock
- Support 256-byte depth FIFO on the chip, sending and receiving paths of each serial port
- Support remote wake-up and power supply
- Management Function:
- Serial port transceiver shutdown support
- Support slow IrDA mode (115200bps)
- On all serial ports
- Multi-point application supporting 9-bit mode
- Support DMA burst transmission
- Compatible Devices:
- Serially connected equipment, serial network/monitoring equipment, data acquisition system, POS terminal and industrial PC, serial I/O of additional card
- I/O expansion of USB and embedded system
- Operating System:
- Windows 98SE/Me/NT4.0/2000/XP/Server 2003/Vista/Win 7/Win 8/Win 10, for Linux, for DOS
Package included:

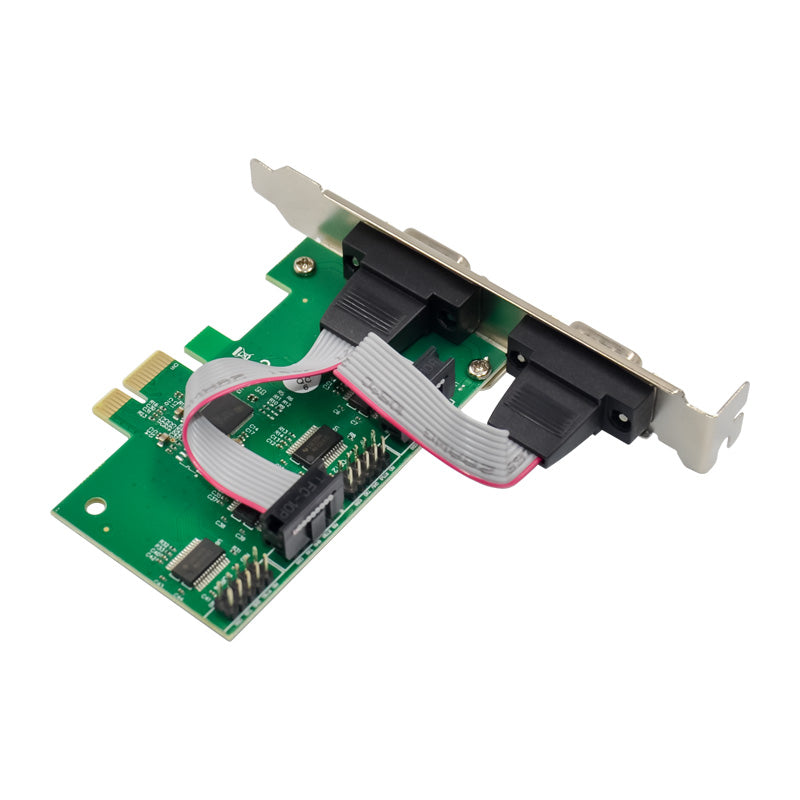

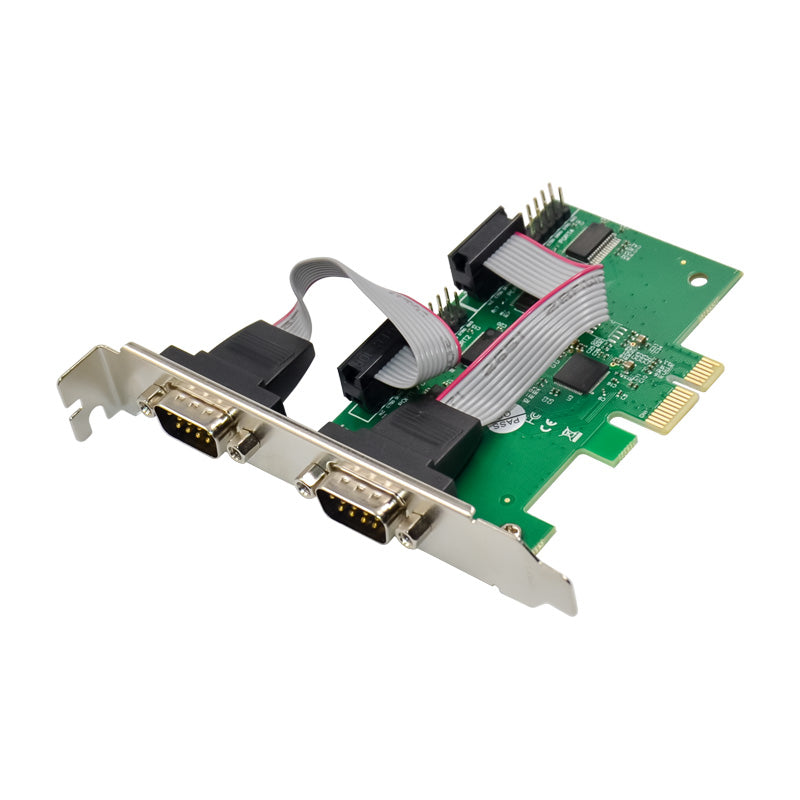

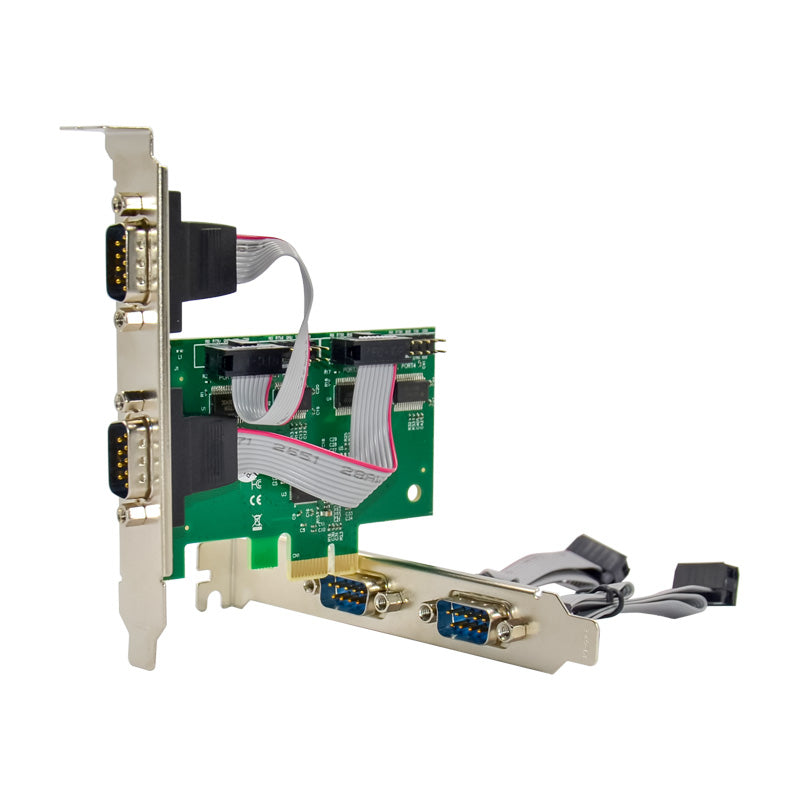

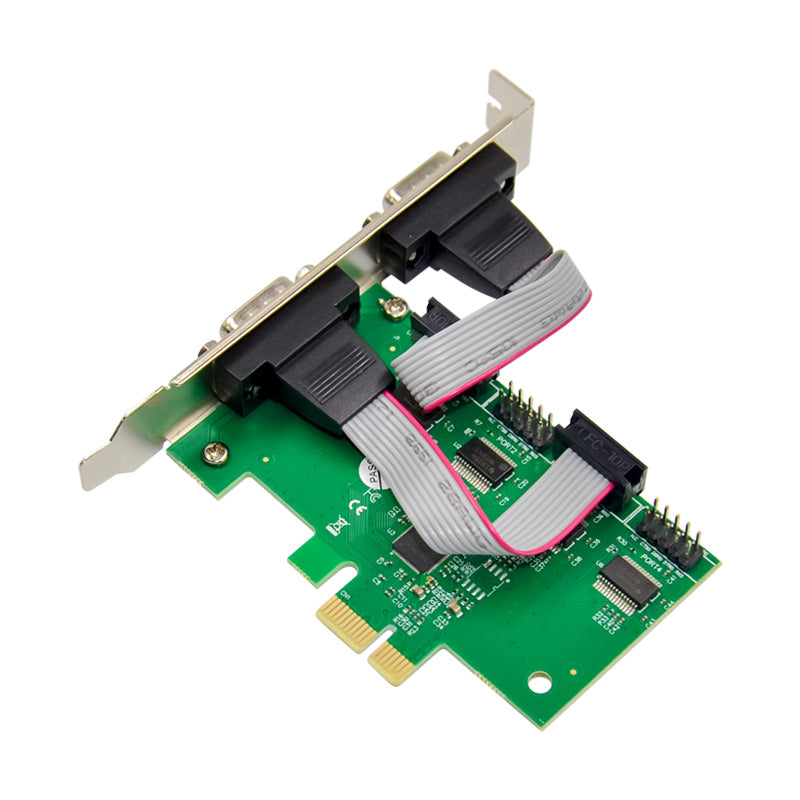

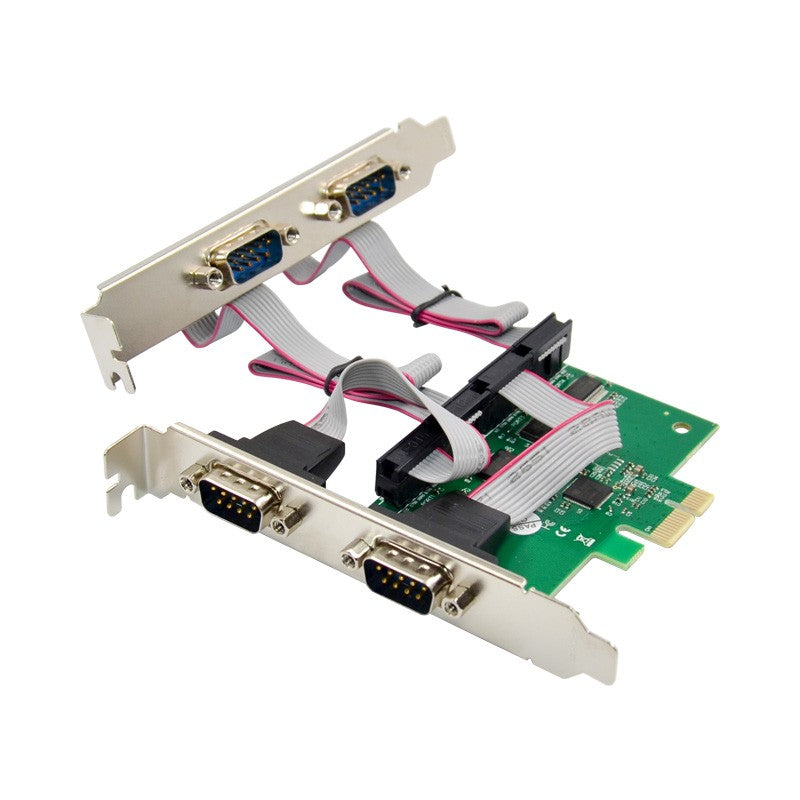

1 x AX99100 PCI Express Serial Card
1 x Short Iron Sheet
1 x CD
1 x English User Manual
